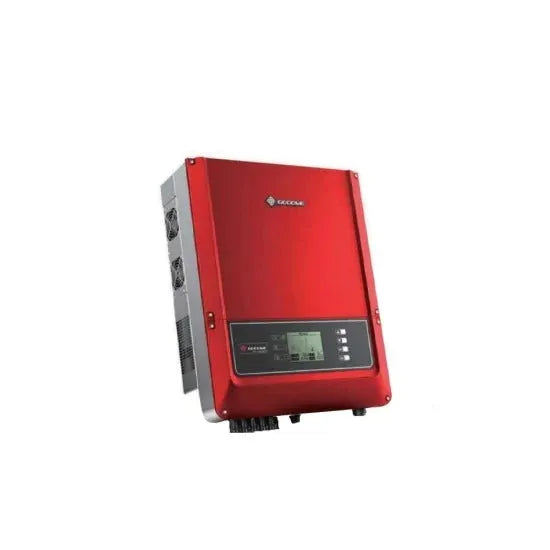

The GoodWe Smart DT series inverter is specially designed for three-phase home solar systems, covering a wide power range of 05kW, 10kW, 15kW, 25kW & 50kW. The integrated two MPPTs allow two-array inputs from different roof orientations. The SDT series inverter is small, light and easy to install. Suitable for both outdoor and indoor installations, this inverter offers a quiet operation thanks to its fanless, natural convection cooling.
Ideal for commercial, industrial, and medium-sized photovoltaic power systems
Lower loss, compact, and lightweight design for efficiency and ease of installation
Extremely low THDi ensures a purer power grid
Reliable grid support capabilities for uninterrupted operation
High waterproof and dustproof grade for durability in various environments
Extra-wide voltage range accommodates diverse module configurations
Suitable for commercial rooftops, power stations, and large-megawatt installations
Product Specifications
Nominal output frequency (hz)
50/60
anti-island protection monitoring
integrated
input reverse polarity protection
integrated
insulation resistor detection
integrated
max input current (a)
27/27
max. output apparent power (va)
25000
max. output current (a)
37
max.short current (a)
33.8/33.8
mppt range of load (v)
480~850
no. of input strings per tracker
3
output thdi (@nominal output)
<1.5%
start voltage [v]
250
max. efficiency
98.4%
no. of mpp trackers
2
max. dc power [w]
32500
max. dc voltage [v]
1000
mppt voltage range [v]
260-850
nominal dc voltage [v]
620
nominal output power (w)
25000
nominal output voltage (v)
400, 3l/n/pe
open short protection
integrated
residual current monitoring unit
integrated
output power factor
~1(adjustable from 0.8 leading to 0.8 lagging)
Product Details
The GoodWe Smart DT series inverter is specially designed for three-phase home solar systems, covering a wide power range of 05kW, 10kW, 15kW, 25kW & 50kW. The integrated two MPPTs allow two-array inputs from different roof orientations. The SDT series inverter is small, light and easy to install. Suitable for both outdoor and indoor installations, this inverter offers a quiet operation thanks to its fanless, natural convection cooling.
