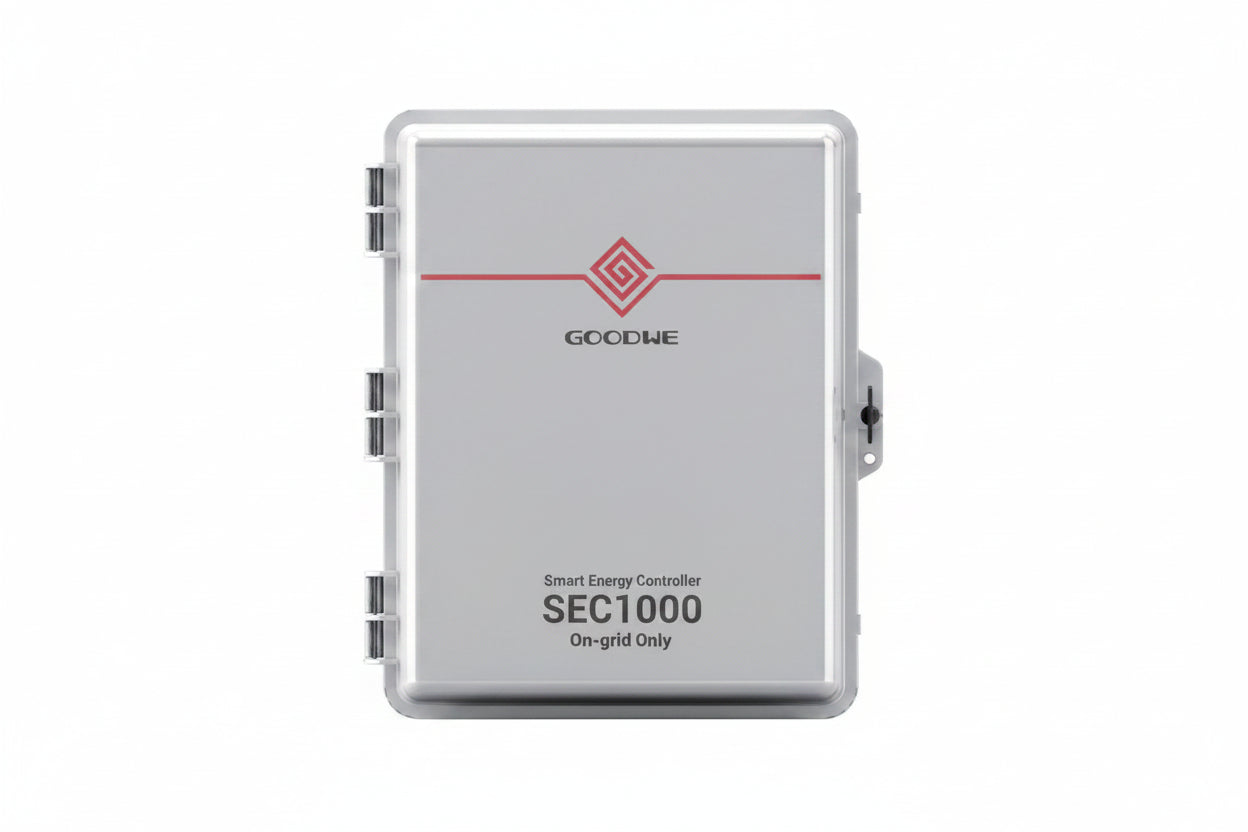

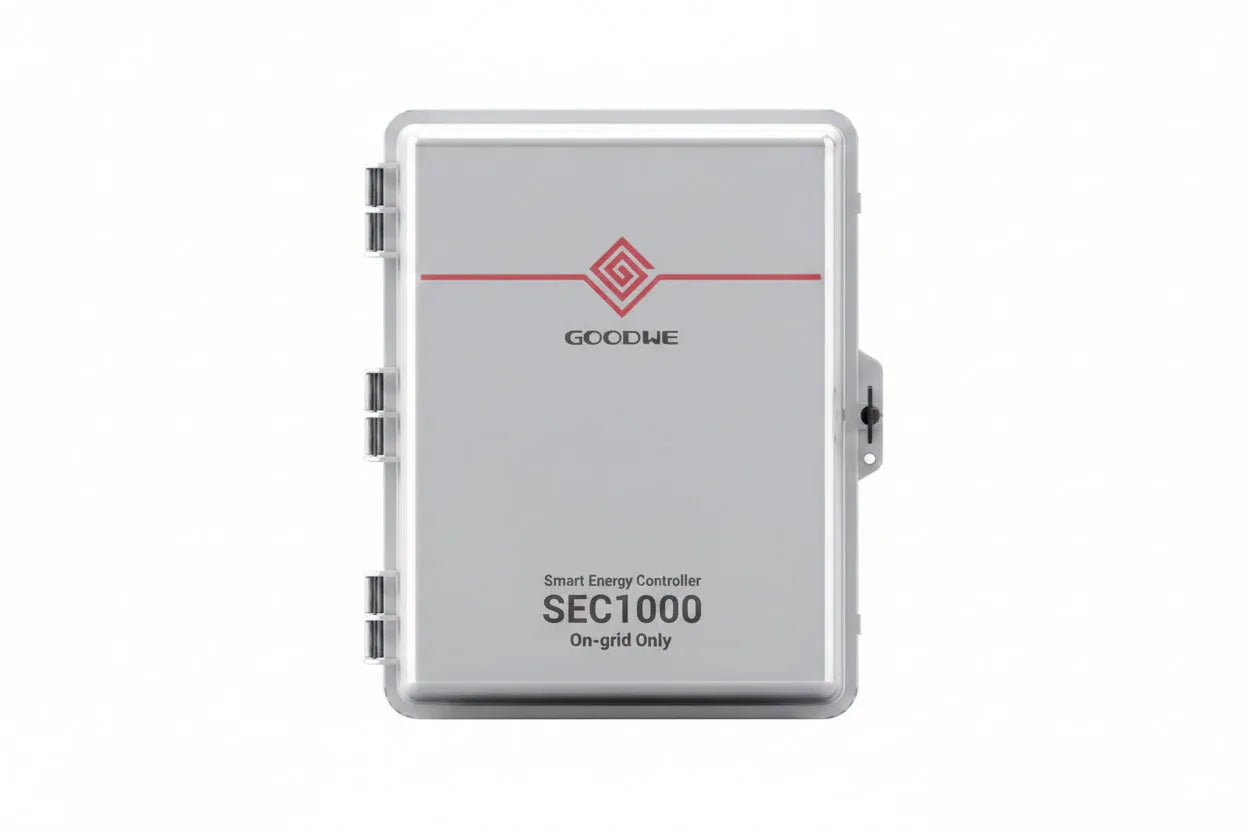

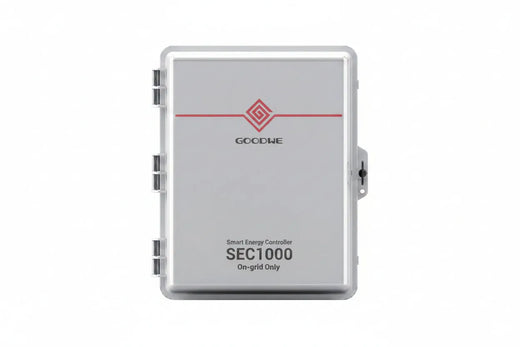

The GoodWe SEC1000 Smart Energy Controller is an advanced monitoring and energy management solution designed to optimize the performance of solar PV systems. Comprising GoodWe's three-phase energy meter and EzLogger Pro, the SEC1000 seamlessly connects with the SEMS monitoring platform to provide centralized control and real-time monitoring of multiple inverters. With support for up to 60 inverters, RS485 communication, and LAN/GPRS connectivity, it enables efficient energy management for commercial and industrial solar installations. Its compact design, IP65-rated enclosure, and reliable performance make it an ideal solution for smart solar power management.
Smart Energy Controller for Commercial Solar Systems
Integrates Three-Phase Meter and EzLogger Pro
Compatible with GoodWe SEMS Monitoring Platform
Real-Time Monitoring and Performance Management
Supports Up to 60 Inverters Simultaneously
Long-Distance Inverter Communication up to 1000m
RS485 Communication with Inverters
LAN and GPRS Connectivity Options
Fast System Boot Time of 3 Seconds
IP65 Protection Rating for Outdoor Installation
Suitable for On-Grid and Energy Storage Applications
Compact Design with Powerful Monitoring Functions
Reliable Operation in Harsh Environmental Conditions
Product Specifications
Type
smart energy controller
application
on-grid / energy storage systems
input voltage range (phase voltage)
ac 60v – 280v
input voltage range (line voltage)
ac 100v – 480v
input voltage frequency
50hz / 60hz
input current range
0 – 5a
rated power consumption
<10w
communication with inverter
rs485
maximum communication distance
1000m (shielded twisted pair)
maximum number of controlled inverters
60 units
communication with terminals
lan, gprs
system boot time
3 seconds (max)
operating temperature range
-25°c to +60°c
relative humidity
0% – 100%
protection rating
ip65
dimensions (l × w × h)
420 × 320 × 131 mm
weight
4kg
Product Details
The GoodWe SEC1000 Smart Energy Controller is an advanced monitoring and energy management solution designed to optimize the performance of solar PV systems. Comprising GoodWe's three-phase energy meter and EzLogger Pro, the SEC1000 seamlessly connects with the SEMS monitoring platform to provide centralized control and real-time monitoring of multiple inverters. With support for up to 60 inverters, RS485 communication, and LAN/GPRS connectivity, it enables efficient energy management for commercial and industrial solar installations. Its compact design, IP65-rated enclosure, and reliable performance make it an ideal solution for smart solar power management.
