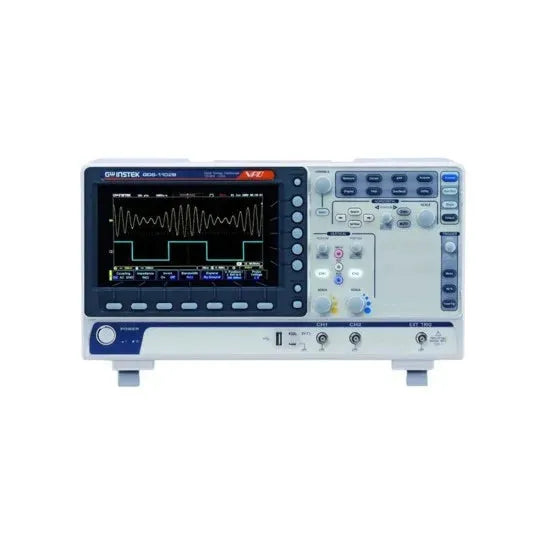

GW Instek GDS-1102B Digital Storage Oscilloscope Price In Pakistan Rs is 210,000/-. The GW Instek GDS-1102B is a high-performance 2-channel digital storage oscilloscope tailored for a wide range of applications including education, R&D, maintenance, and troubleshooting. Featuring a 100MHz bandwidth, 1GSa/s real-time sampling rate, and a deep 10M memory per channel, it provides accurate waveform capture and analysis. The 7-inch high-resolution display enhances signal visualization, while advanced functions like auto measurements, FFT, and USB/LAN connectivity make this oscilloscope both powerful and user-friendly. Designed for efficiency and reliability, the GDS-1102B is an ideal solution for professionals seeking quality and value.
LAN interface for remote control and data transfer
Real-time sampling rate of 1GSa/s
USB host and device ports
Product Specifications
Type
storage oscilloscope
bandwidth
100mhz
auto measurements
32 types including frequency, period, voltage, etc.
channels
2 analog channels
display
7-inch tft color lcd, 800x480 resolution
input impedance
1mo ±2%
interfaces
usb host, usb device, lan
math functions
add, subtract, multiply, fft
memory depth
10m points per channel
power supply
100–240v ac, 50/60hz
sampling rate
1gsa/s (real-time)
time base range
1ns/div to 100s/div
trigger modes
edge, pulse, video, slope, alternate
vertical resolution
8-bit
vertical sensitivity
1mv/div to 10v/div
Product Details
GW Instek GDS-1102B Digital Storage Oscilloscope Price In Pakistan Rs is 210,000/-. The GW Instek GDS-1102B is a high-performance 2-channel digital storage oscilloscope tailored for a wide range of applications including education, R&D, maintenance, and troubleshooting. Featuring a 100MHz bandwidth, 1GSa/s real-time sampling rate, and a deep 10M memory per channel, it provides accurate waveform capture and analysis. The 7-inch high-resolution display enhances signal visualization, while advanced functions like auto measurements, FFT, and USB/LAN connectivity make this oscilloscope both powerful and user-friendly. Designed for efficiency and reliability, the GDS-1102B is an ideal solution for professionals seeking quality and value.
