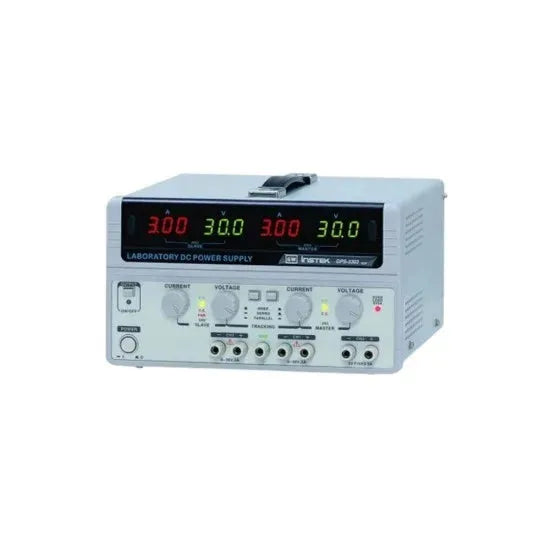

GW Instek GPS-3303 DC Power Supply Price In Pakistan Rs is 168,000/-. The GW Instek GPS-3303 is a high-precision, triple output linear DC power supply designed for laboratory, educational, and industrial applications. It features two independent 0-30V/0-3A outputs and one fixed 5V/3A output, providing versatile power for a variety of electronic testing tasks. With low ripple, excellent regulation, and overload/short circuit protection, the GPS-3303 ensures safe and stable operation. The large 3-digit LED displays provide accurate voltage and current readings, while independent or tracking mode configurations add flexibility. This durable and user-friendly unit is ideal for powering circuits, development boards, and test benches.
Constant Voltage (CV) and Constant Current (CC) modes
Ideal for R&D, testing, and educational use
Independent, series, and parallel tracking modes
Large 3-digit LED displays for voltage and current
Low ripple and noise for stable performance
Overload and short-circuit protection
Reliable linear power supply design
Product Specifications
Type
dc power supply
output channels
3 (2 variable, 1 fixed)
cooling
natural convection
current
<0.2% +3ma
current
<0.2% +3ma
current
<3marms
display
3-digit led display for voltage and current (per channel)
fixed output
5v, 3a
power source
100–240v ac, 50/60hz
protection
overload and short-circuit
tracking modes
independent, series, parallel
variable outputs
0–30v, 0–3a (x2)
voltage
<0.01% +3mv
voltage
<0.01% +3mv
voltage
<1mvrms
Product Details
GW Instek GPS-3303 DC Power Supply Price In Pakistan Rs is 168,000/-. The GW Instek GPS-3303 is a high-precision, triple output linear DC power supply designed for laboratory, educational, and industrial applications. It features two independent 0-30V/0-3A outputs and one fixed 5V/3A output, providing versatile power for a variety of electronic testing tasks. With low ripple, excellent regulation, and overload/short circuit protection, the GPS-3303 ensures safe and stable operation. The large 3-digit LED displays provide accurate voltage and current readings, while independent or tracking mode configurations add flexibility. This durable and user-friendly unit is ideal for powering circuits, development boards, and test benches.
