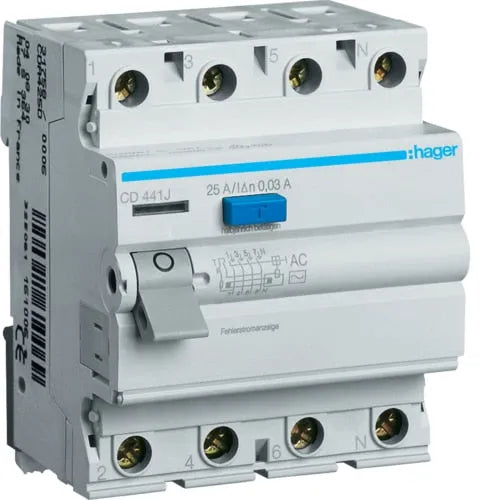

The HAGER CD441J Four Pole 40A Earth Leakage Circuit Breaker is designed to provide comprehensive protection against earth leakage faults in electrical circuits. With a 40A current rating, this breaker is ideal for medium- to high-capacity installations, offering protection in both residential and industrial applications. The four-pole design ensures that all conductors are simultaneously disconnected in the event of an earth leakage, safeguarding the system from potential electric shocks and fire hazards. Equipped with a highly sensitive tripping mechanism, the CD441J ensures quick disconnection and complies with international safety standards, making it a reliable and essential component for any electrical installation.
Four-pole design for full protection of all phases in electrical systems
40A current rating for handling medium- to high-capacity electrical loads
Earth leakage protection to safeguard against electric shocks and fires
Quick and reliable tripping mechanism for rapid fault disconnection
Suitable for residential, commercial, and industrial environments
Robust and durable construction for long-lasting protection
Complies with international safety standards for enhanced reliability
Product Specifications
Type
earth leakage circuit breaker
current rating
40a
voltage rating
230/400v ac
earth leakage sensitivity
30ma
tripping curve
type ac
mounting type
din rail mountable
number of poles
4
standard compliance
iec 61008-1
temperature range
-5°c to +40°c
degree of protection
ip20
frequency
50/60hz
rated short-circuit breaking capacity
6ka
indicators
visual trip indication for easy fault detection
Product Details
The HAGER CD441J Four Pole 40A Earth Leakage Circuit Breaker is designed to provide comprehensive protection against earth leakage faults in electrical circuits. With a 40A current rating, this breaker is ideal for medium- to high-capacity installations, offering protection in both residential and industrial applications. The four-pole design ensures that all conductors are simultaneously disconnected in the event of an earth leakage, safeguarding the system from potential electric shocks and fire hazards. Equipped with a highly sensitive tripping mechanism, the CD441J ensures quick disconnection and complies with international safety standards, making it a reliable and essential component for any electrical installation.
