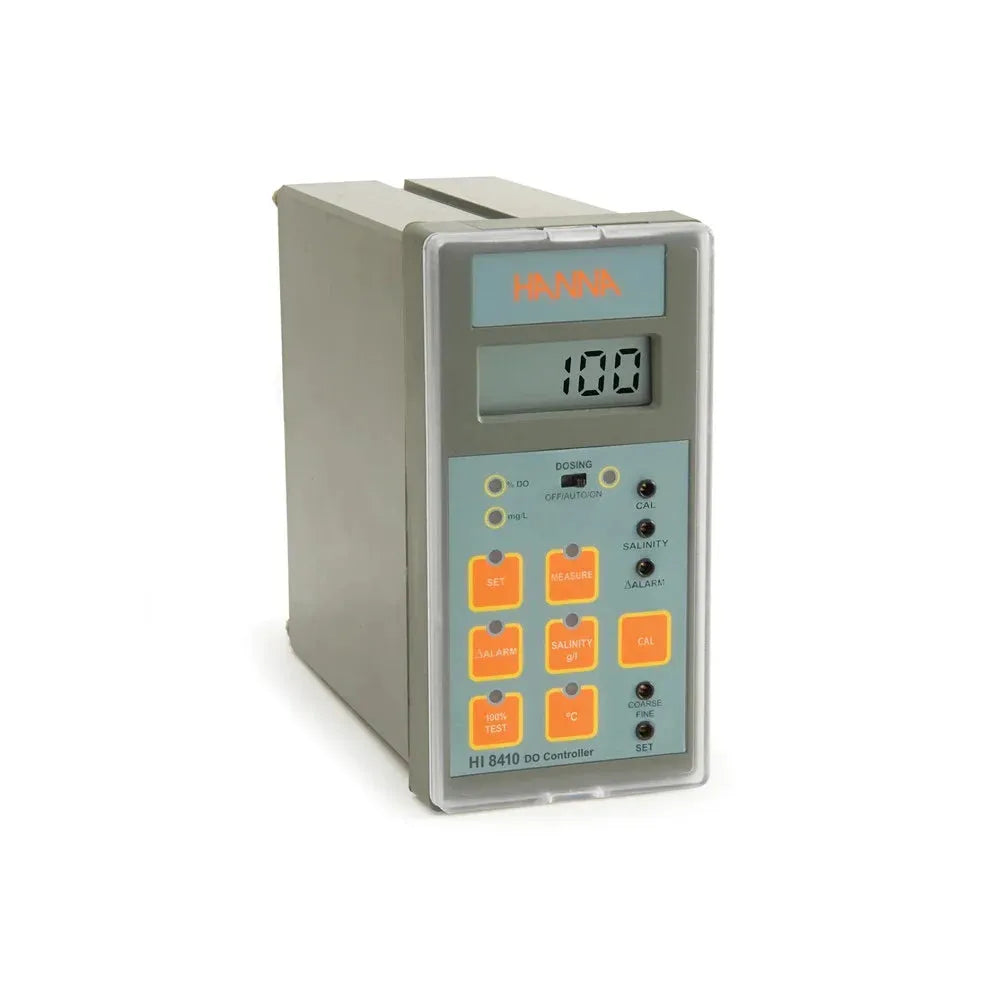

Hanna Dissolved Oxygen Controller Price in Pakistan Rs 350,000/-. The HI8410 is a panel mounted dissolved oxygen controller that is used to maintain and monitor the concentration of DO in a wide range of industrial process applications. The HI8410 uses a Galvanic probe that typically requires less maintenance than a Polarographic style making it ideal for long term monitoring.
The set point for controlling the activation of a relay is adjusted manually by the user. An alarm relay is also manually adjustable and is based upon a tolerance from the programmed setpoint. This controller features single set point calibration in zero oxygen solution.
The dosage mode: automatic, continuous ON or OFF and over dosage control by setting the overtime dosage trimmer. If the dosing relay remains continuously activated for more than the selected dosing time, the alarm relay is activated, the alarm LED will start blinking and...
Continuous monitoring of dissolved oxygen in mg/L and % saturation
4-20 mA or 0-20 mA analog output for process integration
Automatic temperature compensation ensures stable readings
Compatible with galvanic DO probes for quick response
Dual alarm relays for high and low DO alerts
Ideal for aquaculture, wastewater treatment, and environmental monitoring
Large LCD display for easy readability
Manual 2-point calibration for increased accuracy
Rugged, panel-mounted design for industrial environments
Product Specifications
Type
dissolved oxygen controller
measurement range
dissolved oxygen 0.0 to 50.0 mg/l
accuracy
±1.5% of full scale (do)
alarm relays
two, spdt, adjustable set points for high and low alarms
analog output
4-20 ma or 0-20 ma (user-selectable)
calibration
manual, 2-point (zero and slope)
dimensions
144 x 144 x 170 mm
mounting type
panel mount
power supply
115/230 vac; 50/60 hz
probe compatibility
galvanic do probes (e.g., hi-76409 series)
resolution
0.1 mg/l
temperature compensation
automatic, 0 to 50°c (with temperature probe)
weight
1kg
Product Details
Hanna Dissolved Oxygen Controller Price in Pakistan Rs 350,000/-. The HI8410 is a panel mounted dissolved oxygen controller that is used to maintain and monitor the concentration of DO in a wide range of industrial process applications. The HI8410 uses a Galvanic probe that typically requires less maintenance than a Polarographic style making it ideal for long term monitoring.
The set point for controlling the activation of a relay is adjusted manually by the user. An alarm relay is also manually adjustable and is based upon a tolerance from the programmed setpoint. This controller features single set point calibration in zero oxygen solution.
The dosage mode: automatic, continuous ON or OFF and over dosage control by setting the overtime dosage trimmer. If the dosing relay remains continuously activated for more than the selected dosing time, the alarm relay is activated, the alarm LED will start blinking and the dosing relay will be deactivated. A jumper located on the controller’s rear panel can disable the “over time dosage” function.
