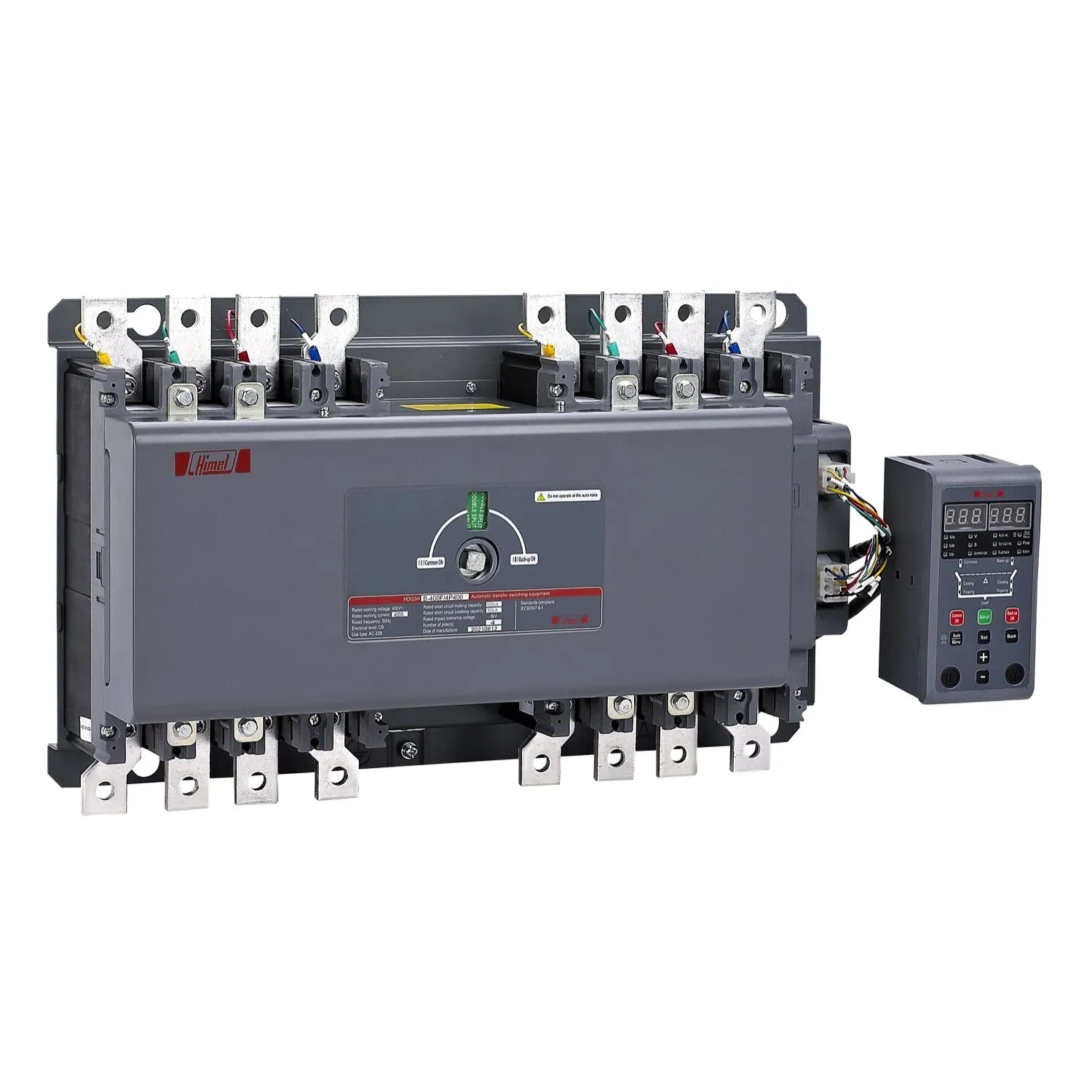

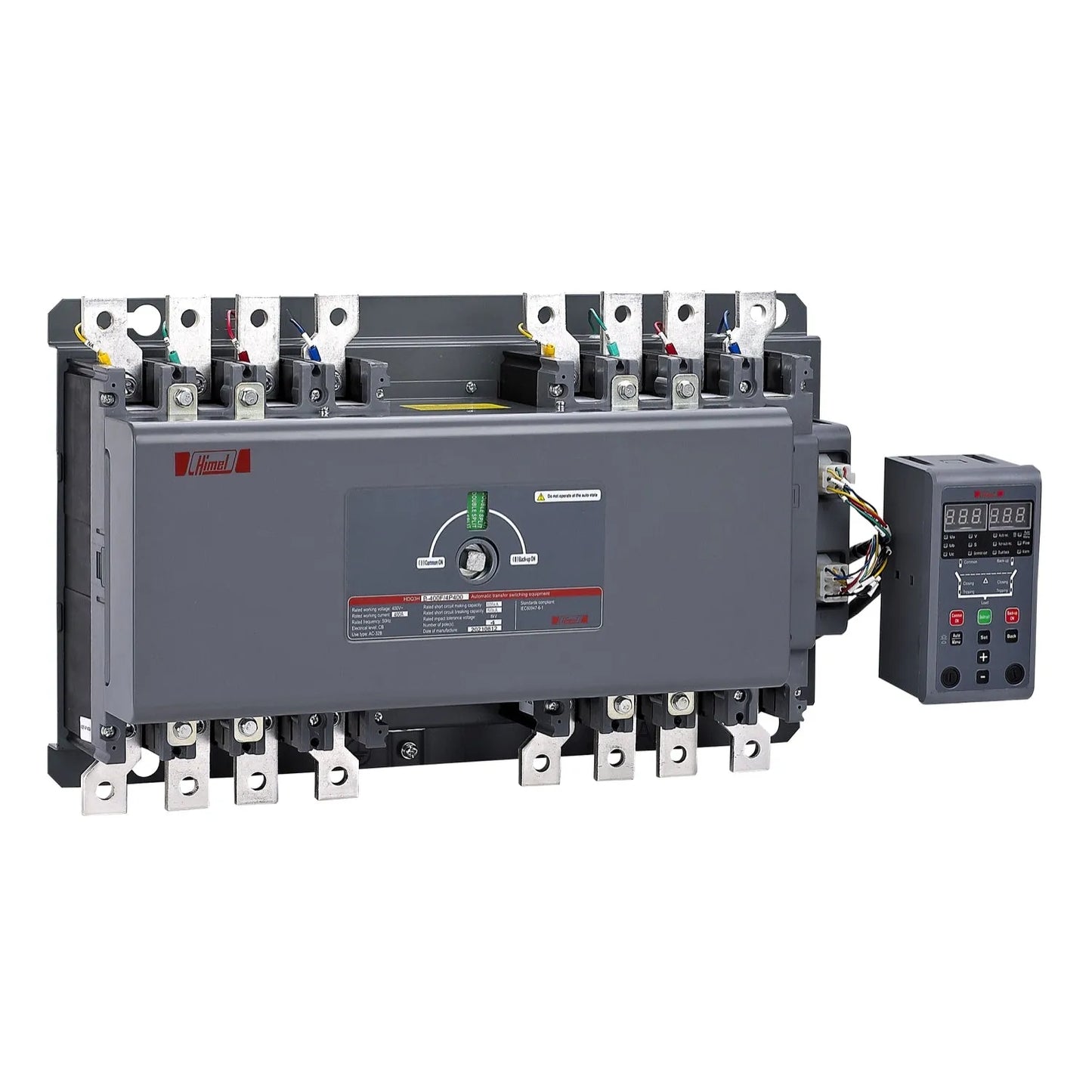

Himel 4-Pole Automatic Transfer Switch Price in Pakistan is Rs. 100,500/-. The Himel 4-Pole ATS is a robust and reliable solution designed to ensure uninterrupted power supply by automatically transferring the load between two power sources. Ideal for critical applications such as hospitals, data centers, and industrial facilities, this ATS offers seamless switching, enhanced protection, and user-friendly features..
Long lifespan: 15,000 mechanical / 10,000 electrical operations
Reliable motorized operation
Operates in -25°C to +70°C
Complies with IEC 60947-6-1 / 60947-3
Product Specifications
Type
ats
available ratings
100a / 250a / 400a / 630a
poles
4p
rated operating voltage (ue)
ac 400v
rated frequency
50/60 hz
rated insulation voltage (ui)
800v
impulse withstand voltage (uimp)
8 kv
short-circuit making capacity (icm)
105 ka
utilization category
ac-33ib (for inductive loads)
control type
integrated motorized mechanism
protection features
built-in overload and short-circuit protection
switching type
automatic with manual override
electrical life
≥ 10,000 operations
mechanical life
≥ 15,000 operations
installation type
fixed mounting
ingress protection (ip rating)
ip20
operating temperature range
-25°c to +70°c
relative humidity
≤ 95% (non-condensing)
dimensions (hxwxd)
approx. 610 x 402 x 185 mm
weight
approx. 41.25 kg
standards compliance
iec 60947-6-1 / iec 60947-3
Product Details
Himel 4-Pole Automatic Transfer Switch Price in Pakistan is Rs. 100,500/-. The Himel 4-Pole ATS is a robust and reliable solution designed to ensure uninterrupted power supply by automatically transferring the load between two power sources. Ideal for critical applications such as hospitals, data centers, and industrial facilities, this ATS offers seamless switching, enhanced protection, and user-friendly features..
