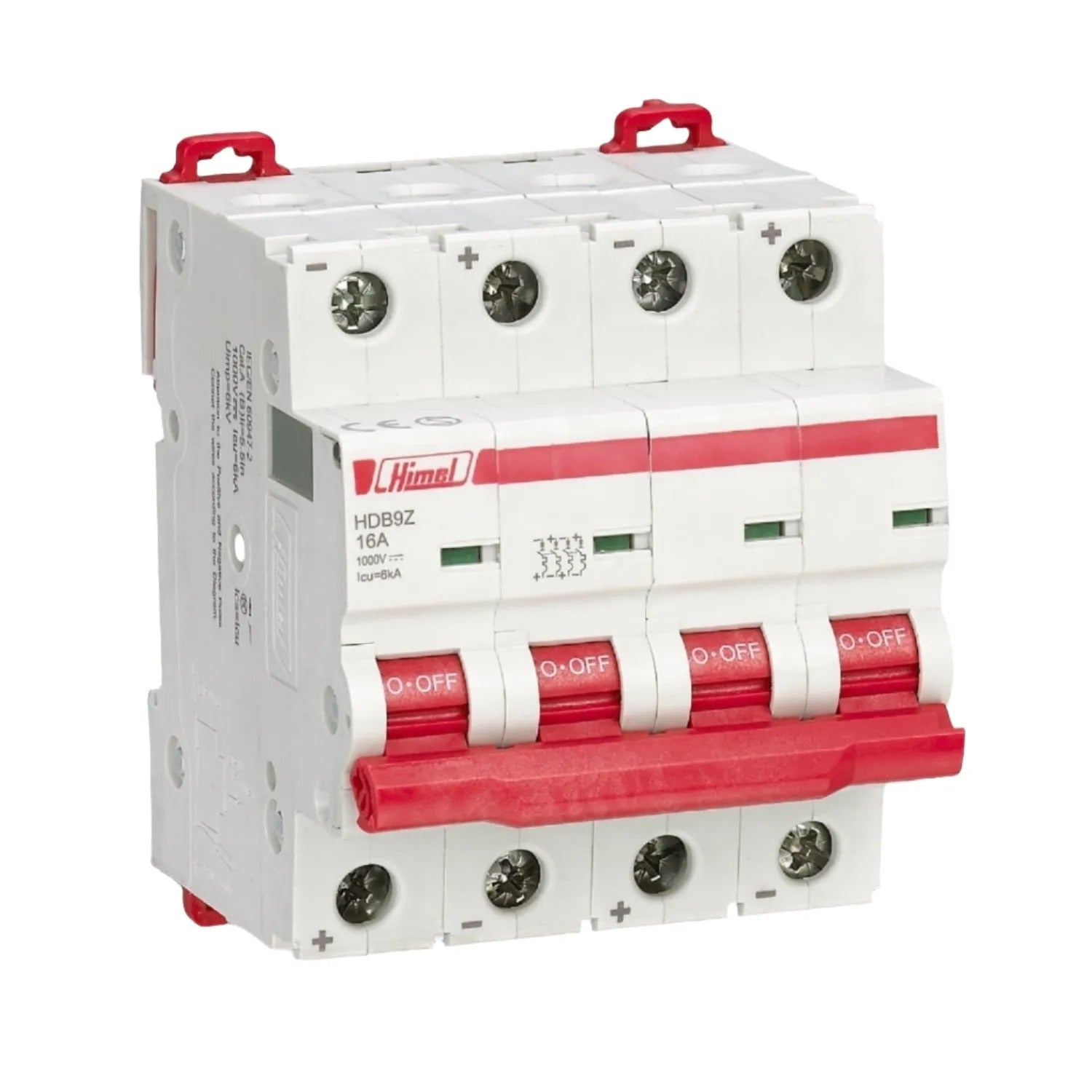

Himel 4P C-curve DC MCB breaker price in Pakistan is Rs 6,500/-.
The Himel 4P C-curve DC Miniature Circuit Breaker (MCB) offers reliable isolation and control in industry, buildings, and energy sectors. With a range of 16A to 63A, it operates at 1000V DC and provides efficient overload and short-circuit protection. This DIN rail-mountable MCB features a trip indicator, mechanical durability for 20000 cycles, and electrical durability for 10000 cycles. Its compact design, with locking options and clamping capacity of <= 25 mm², ensures easy installation and secure performance.
C-curve magnetic tripping for efficient protection
High breaking capacity of 6kA at 1000V
DIN rail mounting support for easy installation
Trip indicator for quick identification of faults
Lock OFF only option for enhanced safety
Product Specifications
Breaker type
dc miniature circuit breaker
local signalling
trip indicator
mounting support
din rail
protection type
overload and short-circuit protection
mechanical durability
20,000 cycles
electrical durability
10,000 cycles
locking options
lock off only
clamping connection capacity
<= 25 mm²
tightening torque
2.5 n.m
Product Details
Himel 4P C-curve DC MCB breaker price in Pakistan is Rs 6,500/-.
The Himel 4P C-curve DC Miniature Circuit Breaker (MCB) offers reliable isolation and control in industry, buildings, and energy sectors. With a range of 16A to 63A, it operates at 1000V DC and provides efficient overload and short-circuit protection. This DIN rail-mountable MCB features a trip indicator, mechanical durability for 20000 cycles, and electrical durability for 10000 cycles. Its compact design, with locking options and clamping capacity of <= 25 mm², ensures easy installation and secure performance.
