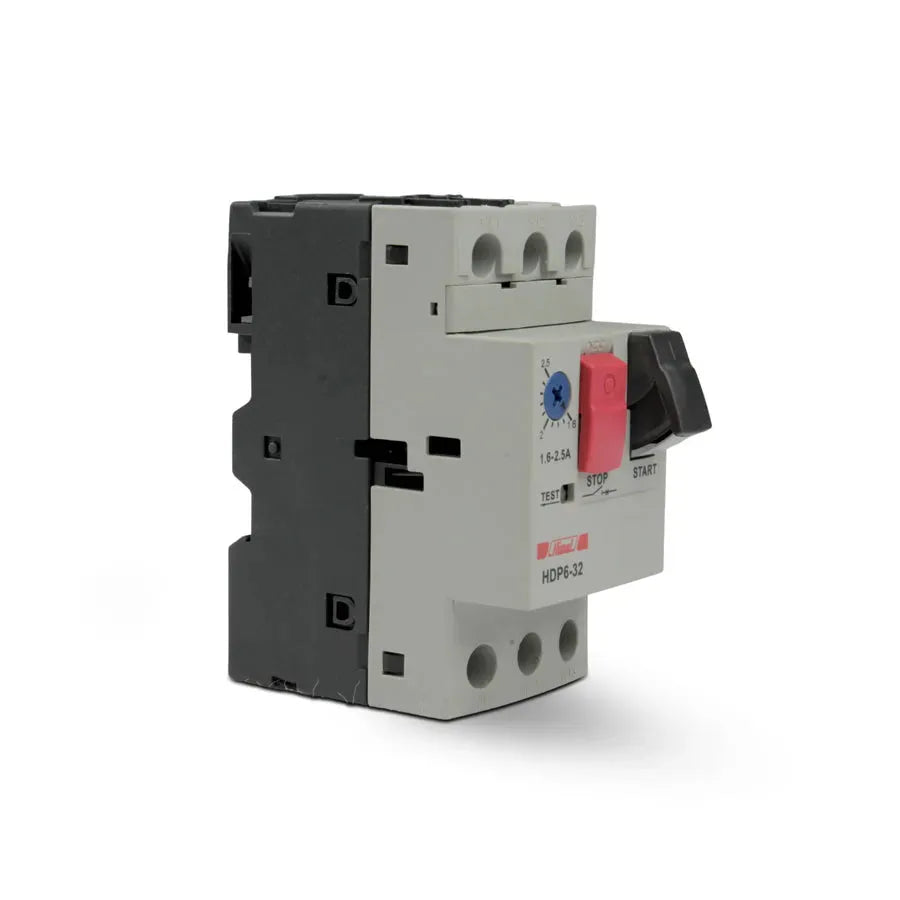

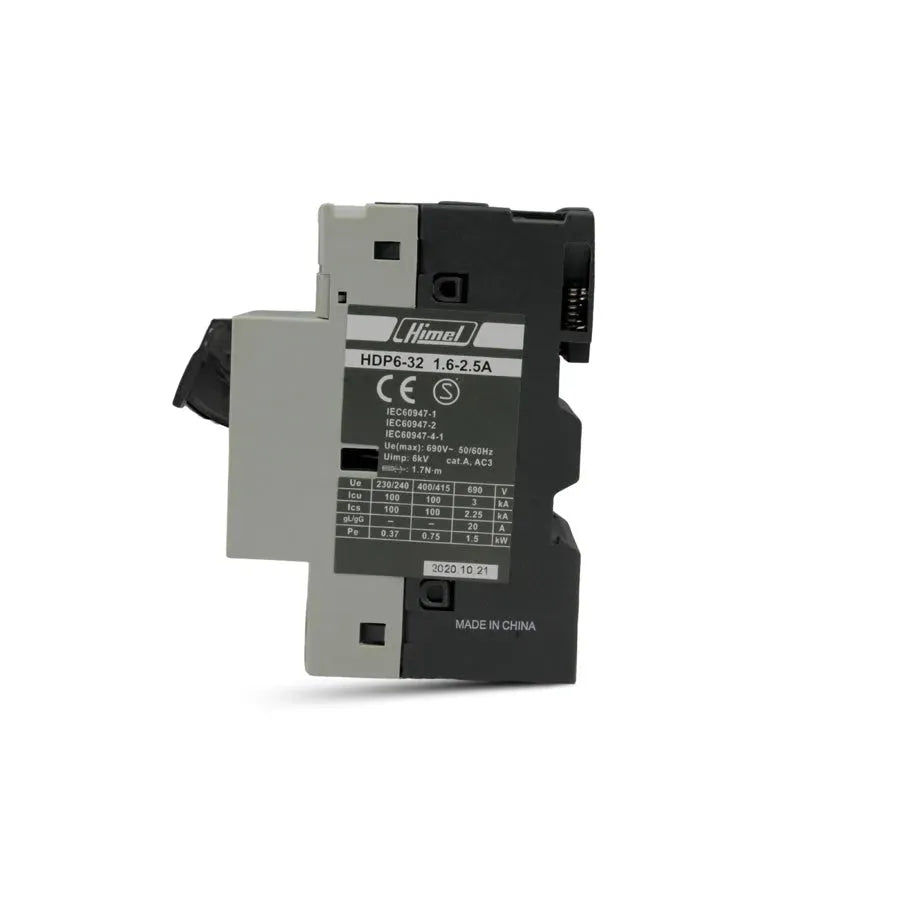

- Himel HDP6 32 Motor Protection Circuit Breaker Himel HDP6 32 Motor Protection Circuit Breaker








- Frame: 32
- Setting Range: 0.1-32A
- Rated Insulation Voltage Ui: 690V
- Rated Impulse Withstand Voltage Uimp: 6KV
- Rated Operational Voltage Ue: 690V
- Rated Frequency: 50/60Hz
- Trip Class: 10A
- Type: Motor Protection Circuit Breaker
Himel HDP6 32 Motor Protection Circuit Breaker price in Pakistan is Rs 7,760/-.
OVERVIEW
HDP6 Motor Control & Protection range is meant to help optimize and secure your installation from HVAC to small Genset applications. It also helps your packaging or pumping businesses to run on a reliable product. The range covers application up to 32A including wide range of voltage from 230V up to 690V
Technical
• Frame: 32
• Setting Range: 0.1-32A
• Rated Insulation Voltage Ui: 690V
• Rated Impulse Withstand Voltage Uimp: 6KV
• Rated Operational Voltage Ue: 690V
• Rated Frequency: 50/60Hz
• Trip Class: 10A
• Type: Mototr Proetction Circuit Breaker
• Setting Current: 0.4-0.63A | 0.63-1A | 1-0.6A | 1.6-2.5A | 2.5-4A | 4-6.3A | 6-10A | 9-14A | 13-18A | 17-23A | 20-25A | 24-32A
• Current Id: 8A | 13A | 22.5A | 33.5A | 51A | 78A | 138A | 170A | 223A | 327A | 327A | 416A
• ICU (KA): 100KA | 15KA | 10KA
• ICS (KA): 100KA | 7.5KA | 6KA
• Rated Operating Power: 0.12KW | 0.25KW | 0.37KW | 0.75KW | 1.5KW | 1.5KW | 2.2KW | 4KW | 5.5KW | 7.5KW | 9KW | 11KW | 15KW
- Frame: 32
- Setting Range: 0.1-32A
- Rated Insulation Voltage Ui: 690V
- Rated Impulse Withstand Voltage Uimp: 6KV
- Rated Operational Voltage Ue: 690V
- Rated Frequency: 50/60Hz
- ICU (KA): 100KA | 15KA | 10KA
- ICS (KA): 100KA | 7.5KA | 6KA
- Setting Current: 0.4-0.63A | 0.63-1A | 1-0.6A | 1.6-2.5A | 2.5-4A | 4-6.3A | 6-10A | 9-14A | 13-18A | 17-23A | 20-25A | 24-32A
- Rated Operating Power: 0.12KW | 0.25KW | 0.37KW | 0.75KW | 1.5KW | 1.5KW | 2.2KW | 4KW | 5.5KW | 7.5KW | 9KW | 11KW | 15KW
