Type
|
mccb breaker
|
|
breaking capacity
|
25 ka / 6.25 ka (380-400v) 25 ka / 6.25 ka (415v)
|
|
rated current
|
60a, 75a, 100a
|
|
weight
|
0.6/0.78/0.96 kg
|
Hyundai 3P MCCB Breaker Price in Pakistan is Rs. 36,000/-.

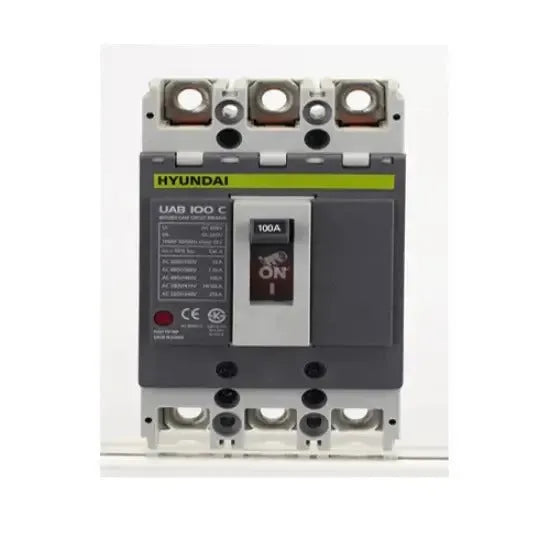

Introducing the Hyundai UAB100R 3 Pole Molded Case Circuit Breaker, designed to provide robust protection and reliability in electrical systems. With a breaking capacity of 25 KA / 6.25 KA at both 380-400V and 415V, it ensures dependable defense against overloads and short circuits. Available in a wide range of rated currents from 15 to 100A, it offers flexibility to suit various applications. Featuring a lightweight design ranging from 0.6 to 0.96 kg, it facilitates easy installation and handling. Operating at a rated operational voltage of AC660V or DC250V, it offers effective protection against overload, instantaneous, and short-circuit faults. Equipped with 3 Poles for comprehensive circuit control, it ensures reliable operation across diverse settings. Rated for an impulse voltage of 6 and an insulation voltage of AC690V, it guarantees safety and efficiency. As part ...
