Type
|
mcb breaker
|
|
breaking capacity
|
85 ka / 85 ka (380-400v) 85 ka / 85 ka (415v)
|
|
rated current
|
15,16,20,25,30,32,40,50,60, 63,75, 80,100,125\
weight
|
|
rated operational voltage
|
ac660 v/ dc250
|

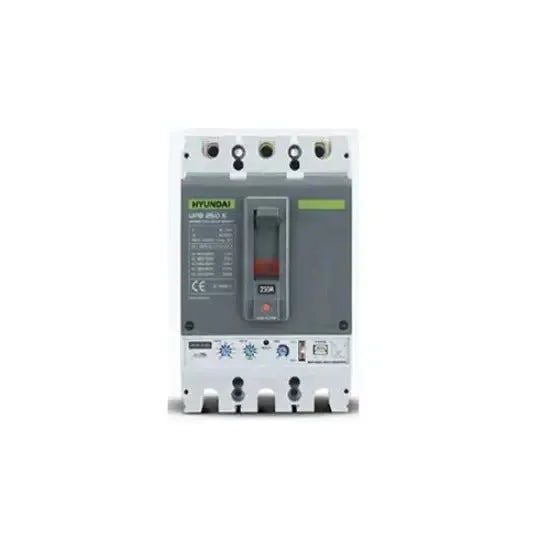

Hyundai 3P MCCB Breaker Price in Pakistan is Rs. 123,000/-.
The Hyundai UPB100SF 3 Pole Extra Power Breaking Capacity Thermal Adjustable Molded Case Circuit Breaker is designed to provide exceptional protection for electrical circuits, offering an impressive breaking capacity of 85 KA across both 380-400V and 415V systems. Available in a wide range of rated currents from 15A to 125A, it caters to various power requirements with precision. Despite its robust capabilities, it maintains a lightweight design, weighing just 1.8 to 2.2 kg. With a rated operational voltage of AC660V and DC250V, it ensures reliable performance in diverse environments. Equipped with 3 Poles, it provides comprehensive protection against overload, instantaneous, and short-circuit faults. Additionally, its thermal adjustable feature enhances flexibility in managing circuit protection. With a rated impulse voltage of 8 and insulation voltage of AC750V, it gua...
