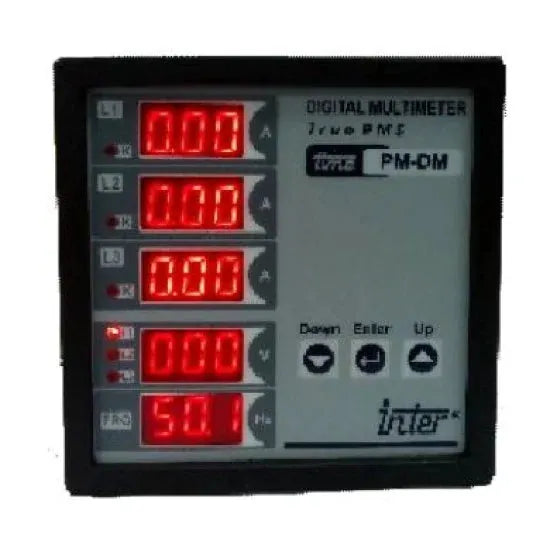

Inter Digital Multi-Measurement Meter Price in Pakistan Rs 41,000/-. The Inter PM-2DM96 Digital Multi-Measurement Meter is a high-performance power analyzer designed for real-time monitoring of electrical parameters in low and medium voltage distribution systems. With a compact 96x96mm panel mount design, it displays voltage, current, frequency, power (active/reactive/apparent), power factor, and energy consumption on a clear digital interface. Engineered for precision and reliability, this meter is ideal for industrial panels, control systems, power factor panels, and energy management applications.
All-in-one measurement of key electrical parameters
Compact 96x96mm size fits standard panel cutouts
Easy to install with panel mounting design
Energy monitoring (kWh) and power analysis
Ideal for industrial, commercial, and utility applications
LED/LCD display for clear visibility
Optional RS-485 Modbus communication for remote data logging
Supports both 3-phase 3-wire and 4-wire systems
True RMS accuracy ensures reliable monitoring
Product Specifications
Type
multi measurement meter
display type
digital led or lcd (model-dependent)
accuracy class
±0.5% (v, a), ±1% (kw, kwh)
communication (optional)
rs-485 modbus rtu (model-specific)
enclosure protection
ip52 (front), ip20 (terminals)
input current
via external cts (1a/5a selectable)
input voltage
3-phase 3-wire or 4-wire systems
measurable parameters
voltage (l-n, l-l), current (per phase and total), frequency, active, reactive, and apparent power, power factor, energy consumption (kwh)
measurement system
true rms
mounting type
panel mounting
operating temperature
-10°c to +60°c
panel cutout size
96 x 96 mm
power supply
85–265v ac / 100–300v dc
Product Details
Inter Digital Multi-Measurement Meter Price in Pakistan Rs 41,000/-. The Inter PM-2DM96 Digital Multi-Measurement Meter is a high-performance power analyzer designed for real-time monitoring of electrical parameters in low and medium voltage distribution systems. With a compact 96x96mm panel mount design, it displays voltage, current, frequency, power (active/reactive/apparent), power factor, and energy consumption on a clear digital interface. Engineered for precision and reliability, this meter is ideal for industrial panels, control systems, power factor panels, and energy management applications.
