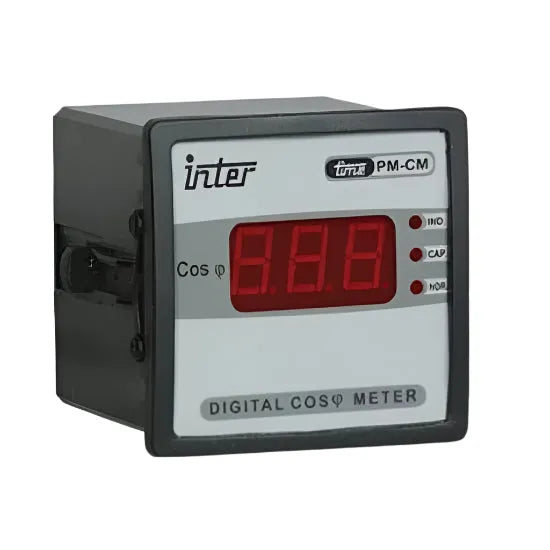

Inter Digital Power Factor Meter Price in Pakistan Rs 25,100/-. The Inter PM-CM96 Digital Power Factor Meter is a high-precision instrument designed to monitor and display the power factor (cos φ) of electrical systems in real-time. Ideal for use in power panels, industrial control systems, and generator setups, this meter features a standard 96x96 mm DIN panel design, a clear digital display, and True RMS measurement capabilities. Whether you're monitoring inductive or capacitive loads, the PM-CM96 ensures accurate assessment of energy efficiency, helping you detect and address power factor issues effectively.
Real-time power factor monitoring with clear digital display
Compact 96x96 mm DIN design fits standard panels
Fast response time for live power factor correction monitoring
Ideal for energy management, PFC systems, and industrial panels
Lead/Lag indication helps diagnose reactive power flow
Measures lagging and leading PF with ±1.00 range
Rugged and reliable for continuous operation
Supports wide voltage and current ranges via CT input
True RMS measurement ensures accuracy in distorted waveforms
Wide auxiliary power supply range for flexible installation
Product Specifications
Type
digital power factor
accuracy
±1% of reading
current input
via external ct (5a standard input)
display type
led or lcd digital display
enclosure rating
ip52 (front), ip20 (rear)
frequency range
45–65 hz
input voltage range
80–500v ac (phase-to-phase)
measurement type
true rms
mounting type
panel mount with rear terminal connections
operating temperature
-10°c to +60°c
panel size
96 x 96 mm (din standard)
power factor range
0.00 to ±1.00 (lead/lag indication)
power supply
85–265v ac / 100–300v dc
Product Details
Inter Digital Power Factor Meter Price in Pakistan Rs 25,100/-. The Inter PM-CM96 Digital Power Factor Meter is a high-precision instrument designed to monitor and display the power factor (cos φ) of electrical systems in real-time. Ideal for use in power panels, industrial control systems, and generator setups, this meter features a standard 96x96 mm DIN panel design, a clear digital display, and True RMS measurement capabilities. Whether you're monitoring inductive or capacitive loads, the PM-CM96 ensures accurate assessment of energy efficiency, helping you detect and address power factor issues effectively.
