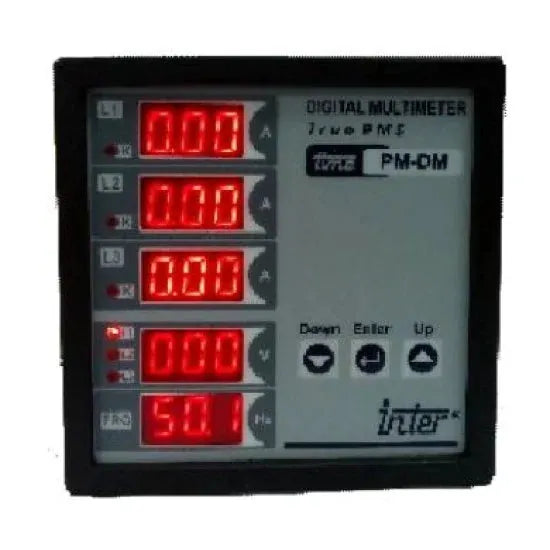

Inter Digital Multi Measurement Meter Price in Pakistan Rs 40,500/-. The Inter PM-DMR96 Digital Multi-Measurement Meter is a high-precision, multifunction panel meter designed to monitor, measure, and display critical electrical parameters such as voltage, current, power, power factor, frequency, and energy consumption. Engineered for industrial and commercial power distribution systems, it features a True RMS measurement system, standard 96x96 mm DIN design, and a clear digital display for real-time diagnostics. With optional RS-485 Modbus RTU communication, it seamlessly integrates with energy management and SCADA systems, ensuring efficient power monitoring and analysis.
Multi-parameter monitoring: Voltage, current, power, PF, frequency, energy
Bright digital display for clear visibility in control rooms
Compact 96x96 mm DIN panel mount design for easy integration
Energy usage tracking to support cost optimization
High measurement accuracy for energy audits and efficiency tracking
Ideal for panels, switchboards, generators, and industrial systems
Optional RS-485 Modbus communication for remote data access
Reliable and durable for continuous industrial use
Supports both 1A and 5A CT inputs
True RMS technology for precise measurement in distorted wave conditions
Product Specifications
Type
multi measurement meter
panel size
96 x 96 mm (din standard)
accuracy
voltage/current
auxiliary power supply
85–265v ac or 100–300v dc
communication (optional)
rs-485 modbus rtu
current input
1a/5a (via ct)
display type
high-visibility led or lcd digital screen
frequency range
45–65 hz
measured parameters
voltage (phase/line), current (via external ct), frequency (hz), active power (kw), reactive power (kvar), apparent power (kva), power factor (cos φ), energy (kwh)
measurement type
true rms
mounting
panel mount
operating temperature
-10°c to +60°c
protection rating
ip52 (front), ip20 (rear)
voltage range
80–500v ac (l-l or l-n)
Product Details
Inter Digital Multi Measurement Meter Price in Pakistan Rs 40,500/-. The Inter PM-DMR96 Digital Multi-Measurement Meter is a high-precision, multifunction panel meter designed to monitor, measure, and display critical electrical parameters such as voltage, current, power, power factor, frequency, and energy consumption. Engineered for industrial and commercial power distribution systems, it features a True RMS measurement system, standard 96x96 mm DIN design, and a clear digital display for real-time diagnostics. With optional RS-485 Modbus RTU communication, it seamlessly integrates with energy management and SCADA systems, ensuring efficient power monitoring and analysis.
