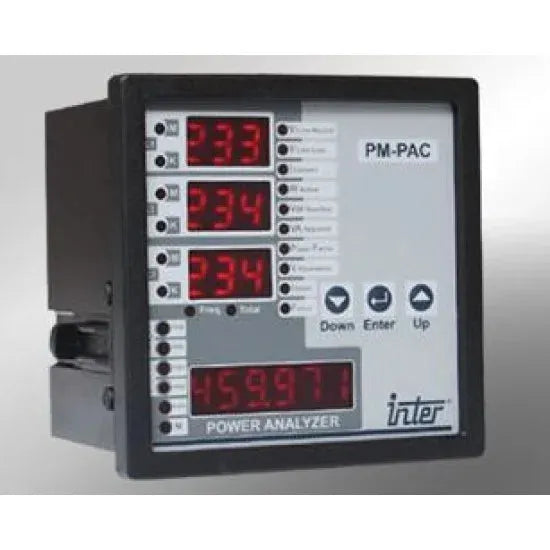

Inter Digital Energy Analyzer Price in Pakistan Rs 105,500/-. The Inter PM-PAC96 Digital Energy Analyzer is a versatile, high-accuracy panel-mounted meter designed for real-time monitoring of electrical parameters such as voltage, current, active/reactive/apparent power, power factor, frequency, and total energy consumption. With True RMS measurement, support for three-phase and single-phase systems, and optional RS-485 Modbus RTU communication, the PM-PAC96 is ideal for use in power distribution boards, control panels, energy management systems, and industrial automation setups. The compact 96x96 mm DIN standard design and intuitive display make it a smart choice for accurate and efficient energy monitoring.
Multifunction digital energy analyzer for industrial and commercial use
Accurate monitoring of all key power and energy metrics
Bright digital display with real-time visibility
Compact 96x96 mm DIN panel mount design
CT input support (1A/5A) for scalable current sensing
Ideal for panels, automation systems, and energy audits
Robust construction for reliable long-term operation
RS-485 Modbus RTU (optional) for integration into SCADA/BMS systems
Three-phase and single-phase system support
True RMS measurement for precise readings under harmonic conditions
Product Specifications
Type
energy analyzer
panel size
96 x 96 mm (din standard)
accuracy
voltage/current
auxiliary power supply
85–265v ac / 100–300v dc
communication (optional)
rs-485 modbus rtu
current input
1a / 5a (via external ct)
display
led/lcd digital display with clear readout
frequency range
45–65 hz
measured parameters
voltage (l-n / l-l), current (via 1a/5a ct), active power (kw), reactive power (kvar), apparent power (kva), frequency (hz), power factor (cos φ), energy (kwh)
measurement method
true rms
mounting type
panel mount
operating temperature
-10°c to +60°c
protection
ip52 (front), ip20 (rear)
system type
1-phase, 3-phase 3-wire/4-wire systems
voltage input
80–500v ac
Product Details
Inter Digital Energy Analyzer Price in Pakistan Rs 105,500/-. The Inter PM-PAC96 Digital Energy Analyzer is a versatile, high-accuracy panel-mounted meter designed for real-time monitoring of electrical parameters such as voltage, current, active/reactive/apparent power, power factor, frequency, and total energy consumption. With True RMS measurement, support for three-phase and single-phase systems, and optional RS-485 Modbus RTU communication, the PM-PAC96 is ideal for use in power distribution boards, control panels, energy management systems, and industrial automation setups. The compact 96x96 mm DIN standard design and intuitive display make it a smart choice for accurate and efficient energy monitoring.
