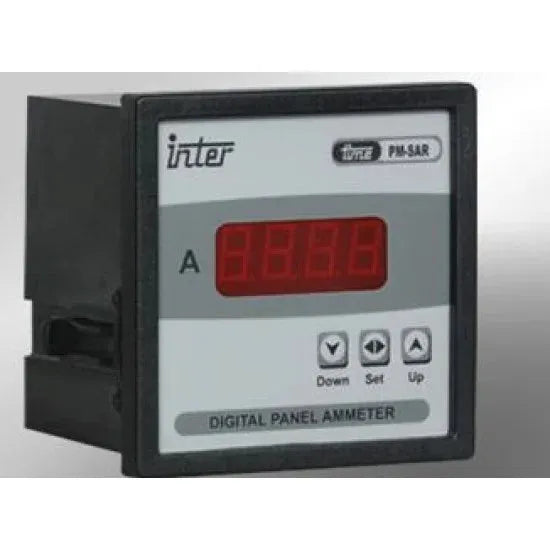

Inter Digital AC Ammeter Price in Pakistan Rs 18,200/-. The Inter PM-SA72 Digital AC Ammeter is a compact and reliable panel-mounted instrument designed to accurately measure and display AC current in real-time. With its True RMS sensing, this ammeter delivers precise readings even in systems with distorted waveforms. The 72x72 mm DIN standard size makes it ideal for applications in industrial panels, motor control centers, and distribution boards. It is compatible with external CTs (1A or 5A) and provides a clear digital display for quick and easy monitoring of current flow.
Accurate AC current measurement with True RMS technology
Clear LED display for real-time visibility
Compact 72x72 mm panel design for easy installation
Durable and reliable for continuous operation
Ideal for industrial panels, switchgear, and motor controls
Low power consumption and high measurement stability
Quick setup and configuration via front buttons
Supports external CT input for flexible current scaling
Wide auxiliary power supply range
Product Specifications
Type
digital ac ammeter
panel size
72 x 72 mm (din standard)
accuracy
±0.5% of reading
current range
configurable depending on ct ratio
display type
digital led display
frequency range
45–65 hz
input current
1a or 5a (via external current transformer)
measurement parameter
ac current (amperes)
measurement type
true rms
mounting
panel mount
operating temperature
-10°c to +60°c
power supply
85–265v ac / 100–300v dc
protection class
ip52 (front), ip20 (rear)
Product Details
Inter Digital AC Ammeter Price in Pakistan Rs 18,200/-. The Inter PM-SA72 Digital AC Ammeter is a compact and reliable panel-mounted instrument designed to accurately measure and display AC current in real-time. With its True RMS sensing, this ammeter delivers precise readings even in systems with distorted waveforms. The 72x72 mm DIN standard size makes it ideal for applications in industrial panels, motor control centers, and distribution boards. It is compatible with external CTs (1A or 5A) and provides a clear digital display for quick and easy monitoring of current flow.
