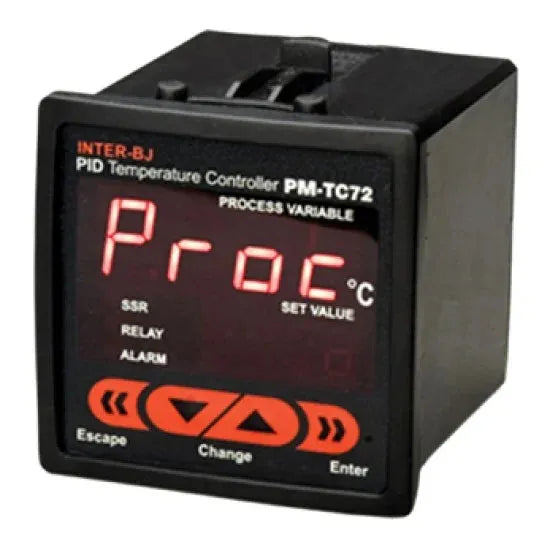

Inter Digital Auto-Tuning Temperature Controller Price in Pakistan Rs 51,000/-. The Inter PM-TC72 Digital Auto-Tuning Temperature Controller is a high-performance PID-based control device designed for precise temperature regulation in a wide range of industrial applications. Featuring auto-tuning functionality, it intelligently adjusts PID parameters to minimize overshoot and improve response time. With a 72x72 mm DIN-standard design, dual LED display, and universal input compatibility for thermocouples and RTDs, this controller is ideal for process heating, furnaces, ovens, plastic machinery, packaging systems, and HVAC units. Built to ensure operational reliability, the PM-TC72 offers flexibility, accuracy, and user-friendly configuration.
Precise temperature control using intelligent Auto-Tuning PID algorithm
Dual LED display shows both process (PV) and setpoint (SV) values
Flexible alarm configuration for process safety and control
Rugged build for long-term performance in industrial environments
Selectable control outputs for integration with various systems
Simple front-button programming with intuitive parameter setting
Standard 72x72 mm panel mount design for industrial panels
Supports a wide range of sensors including RTD and thermocouples
Wide auxiliary power input for installation versatility
Product Specifications
Type
digital temperature controller
panel size
72 x 72 mm (din standard)
accuracy
±0.5% of full scale
alarm output
configurable high/low alarms
control method
pid with auto-tuning / on-off / manual
control mode
heating and/or cooling
control output options
relay / ssr / 4–20 ma / 0–10v (model dependent)
display
dual 4-digit led display (pv/sv)
input type
universal input (configurable)
mounting type
panel mount
operating temperature
0°c to +50°c
power supply
85–265v ac / 24v dc (model dependent)
protection rating
ip54 (front), ip20 (rear)
sensor input
thermocouples (k, j, t, etc.), rtd (pt100)
Product Details
Inter Digital Auto-Tuning Temperature Controller Price in Pakistan Rs 51,000/-. The Inter PM-TC72 Digital Auto-Tuning Temperature Controller is a high-performance PID-based control device designed for precise temperature regulation in a wide range of industrial applications. Featuring auto-tuning functionality, it intelligently adjusts PID parameters to minimize overshoot and improve response time. With a 72x72 mm DIN-standard design, dual LED display, and universal input compatibility for thermocouples and RTDs, this controller is ideal for process heating, furnaces, ovens, plastic machinery, packaging systems, and HVAC units. Built to ensure operational reliability, the PM-TC72 offers flexibility, accuracy, and user-friendly configuration.
