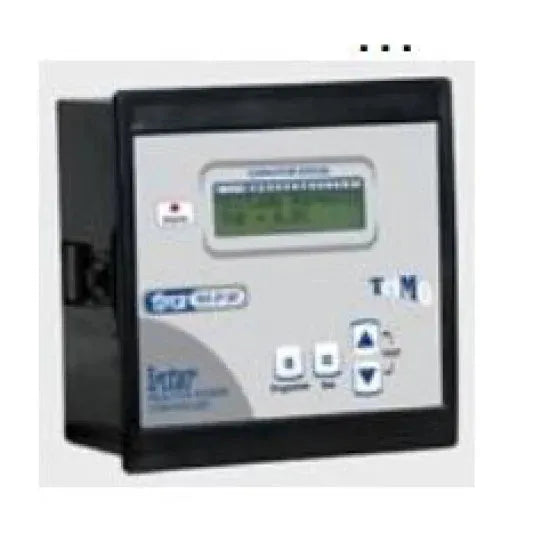

Inter Microprocessor Power Factor Regulator – Three Phase Price in Pakistan Rs 161,000/-. The Inter RKR-3P13MT Power Factor Regulator is a microprocessor-based 13-step controller designed to maintain optimal power factor levels in three-phase electrical systems. Ideal for industrial and commercial applications, it offers real-time reactive power compensation, automatic or manual operation modes, and detailed system diagnostics through its intuitive LCD interface. This advanced regulator ensures reduced energy losses, enhanced system performance, and protection from power factor penalties. Its modular and panel-mount design makes it a perfect fit for capacitor banks and power distribution boards.
13-step power factor correction for enhanced energy efficiency
Advanced microprocessor for real-time monitoring and control
Built-in protection against electrical faults and incorrect compensation
Ideal for industrial plants, commercial buildings, and capacitor bank systems
Multifunction LCD screen for easy programming and diagnostics
Optional Modbus RS-485 communication for remote monitoring
Panel-mountable compact design with modular relays
Prevents power factor penalties from utility providers
Programmable CT ratio ensures compatibility with various installations
Supports both automatic and manual modes for flexible use
Product Specifications
Type
power factor regulator
model
rkr-3p13mt
alarm functions
ct failure, under/over compensation, over/under voltage
ambient temperature
-10°c to +60°c
body material
flame-retardant abs
communication port
optional rs-485 modbus rtu
control steps
13
ct ratio
programmable (1 to 9999/5a)
current input
5a via external ct
display type
backlit lcd screen with multifunction display
mounting type
panel mount (144 x 144 mm standard)
operation mode
automatic and manual
power factor correction range
0.5 inductive to 0.5 capacitive
protection degree
ip20 (ip54 with optional gasket)
relay output
13 relays, 5a @ 250v ac each
system type
three-phase
voltage input
230v / 400v ac ±20%, 50/60 hz
Product Details
Inter Microprocessor Power Factor Regulator – Three Phase Price in Pakistan Rs 161,000/-. The Inter RKR-3P13MT Power Factor Regulator is a microprocessor-based 13-step controller designed to maintain optimal power factor levels in three-phase electrical systems. Ideal for industrial and commercial applications, it offers real-time reactive power compensation, automatic or manual operation modes, and detailed system diagnostics through its intuitive LCD interface. This advanced regulator ensures reduced energy losses, enhanced system performance, and protection from power factor penalties. Its modular and panel-mount design makes it a perfect fit for capacitor banks and power distribution boards.
