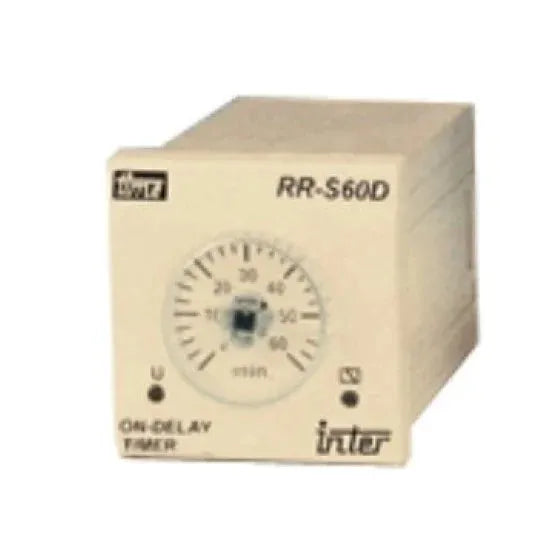

Inter On-Delay Timer Price in Pakistan Rs 8,700/-. The Inter RR-S60R On-Delay Timer is a compact and reliable DIN rail-mountable timer relay designed for time-based automation in electrical control systems. It provides precise on-delay timing from 0.1 seconds to 60 minutes, making it ideal for controlling start-up delays, sequencing operations, or protection circuits. With universal voltage compatibility, an LED status indicator, and adjustable time settings, the RR-S60R ensures dependable performance in industrial, commercial, and HVAC applications.
Compact and durable design for space-saving installation
DIN rail mounting for quick panel integration
High timing accuracy and repeatability
Ideal for automation, protection, and control circuits
LED indicators for clear status monitoring
Rotary dial for simple time setting
SPDT relay output supports up to 8A loads
Wide voltage range (24–240V AC/DC) for versatile use
Product Specifications
Type
on-delay timer
function
on-delay timer
accuracy
±1% of full scale
contact rating
8a at 250v ac / 30v dc
dimensions
compact din size module
housing material
flame-retardant plastic
led indication
power and relay status indicators
mounting type
din rail (35 mm)
operating temperature
-10°c to +55°c
operating voltage
24–240v ac/dc
output contacts
1 x spdt (single pole double throw) relay
protection degree
ip20 (terminals), ip40 (housing)
repeat accuracy
±0.2%
storage temperature
-20°c to +70°c
time adjustment
rotary knob on front panel
time range
0.1 seconds to 60 minutes (selectable)
Product Details
Inter On-Delay Timer Price in Pakistan Rs 8,700/-. The Inter RR-S60R On-Delay Timer is a compact and reliable DIN rail-mountable timer relay designed for time-based automation in electrical control systems. It provides precise on-delay timing from 0.1 seconds to 60 minutes, making it ideal for controlling start-up delays, sequencing operations, or protection circuits. With universal voltage compatibility, an LED status indicator, and adjustable time settings, the RR-S60R ensures dependable performance in industrial, commercial, and HVAC applications.
