Type
|
n-type bi-facial double glass solar panel
|
|
cell technology
|
n-type bycium+
|
|
cell configuration
|
144 cells (6 × 24)
|
|
rated maximum power (pmax)
|
605w
|

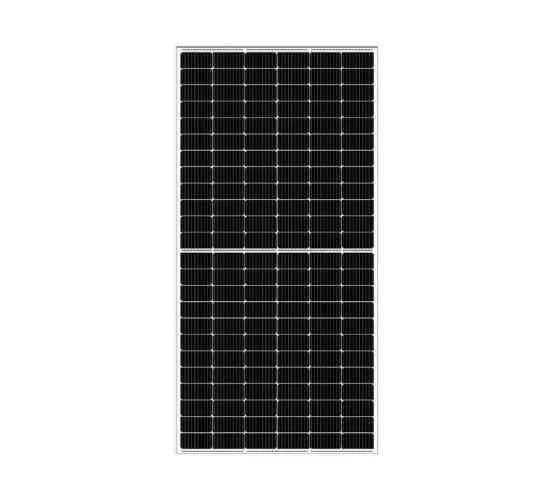

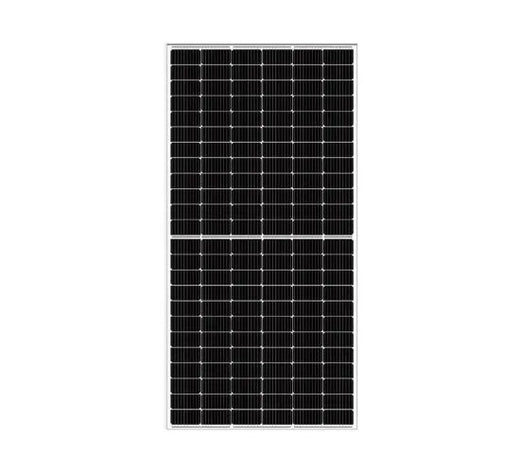

The JA Solar JAM72D40-605/LB is a premium 605W N-Type Bi-Facial Double Glass Solar Panel designed for utility-scale, commercial, and industrial solar projects. Built on the advanced DeepBlue 4.0 Pro platform, the module utilizes high-efficiency N-Type Bycium+ cells and 16BB half-cell technology to deliver superior energy production, lower degradation, and enhanced long-term reliability.
Its bifacial double-glass design enables additional power generation from the rear side of the module, increasing total energy yield and reducing the Levelized Cost of Energy (LCOE). With excellent low-light performance, improved temperature coefficient, and strong resistance to LID and PID effects, the module ensures consistent performance even in challenging environmental conditions.
The panel offers an impressive 22.9% module efficiency, supports 1500V system voltage, and comes with a 30-year linear power warranty, making it an ideal choice for maximizing solar energy generation and long-term investment returns.
Couldn't load pickup availability
Ask About This Product
|
Type
|
n-type bi-facial double glass solar panel
|
|
cell technology
|
n-type bycium+
|
|
cell configuration
|
144 cells (6 × 24)
|
|
rated maximum power (pmax)
|
605w
|
|
module efficiency
|
22.9%
|
|
maximum power voltage (vmp)
|
43.94v
|
|
maximum power current (imp)
|
13.77a
|
|
open circuit voltage (voc)
|
52.60v
|
|
short circuit current (isc)
|
14.53a
|
|
power tolerance
|
0 ~ +3%
|
|
maximum system voltage
|
1500v dc
|
|
maximum series fuse rating
|
30a
|
|
operating temperature range
|
-40°c to +85°c
|
|
temperature coefficient of isc
|
+0.045%/°c
|
|
temperature coefficient of voc
|
-0.250%/°c
|
|
temperature coefficient of pmax
|
-0.290%/°c
|
|
nominal operating cell temperature (noct)
|
45 ± 2°c
|
|
bifaciality
|
80% ±10%
|
|
front glass
|
2.0mm tempered glass
|
|
back glass
|
2.0mm tempered glass
|
|
frame
|
anodized aluminum alloy
|
|
junction box
|
ip68 rated, 3 diodes
|
|
connector
|
qc 4.10-35i / mc4-evo2a
|
|
cable cross section
|
4mm²
|
|
cable length (portrait)
|
(+)300mm / (-)400mm
|
|
cable length (landscape)
|
(+)1400mm / (-)1400mm
|
|
dimensions
|
2333 × 1134 × 30 mm
|
|
weight
|
32.5 kg
|
|
safety class
|
class ii
|
|
fire performance
|
ul type 29 / class c
|
|
maximum static load (front)
|
5400 pa
|
|
maximum static load (rear)
|
2400 pa
|
The JA Solar JAM72D40-605/LB is a premium 605W N-Type Bi-Facial Double Glass Solar Panel designed for utility-scale, commercial, and industrial solar projects. Built on the advanced DeepBlue 4.0 Pro platform, the module utilizes high-efficiency N-Type Bycium+ cells and 16BB half-cell technology to deliver superior energy production, lower degradation, and enhanced long-term reliability.
Its bifacial double-glass design enables additional power generation from the rear side of the module, increasing total energy yield and reducing the Levelized Cost of Energy (LCOE). With excellent low-light performance, improved temperature coefficient, and strong resistance to LID and PID effects, the module ensures consistent performance even in challenging environmental conditions.
The panel offers an impressive 22.9% module efficiency, supports 1500V system voltage, and comes with a 30-year linear power warranty, making it an ideal choice for maximizing solar energy generation and long-term investment returns.
