Type
|
n-type bi-facial double glass solar panel
|
|
cell technology
|
n-type bycium+
|
|
cell configuration
|
144 cells (6 × 24)
|
|
rated maximum power (pmax)
|
615w
|

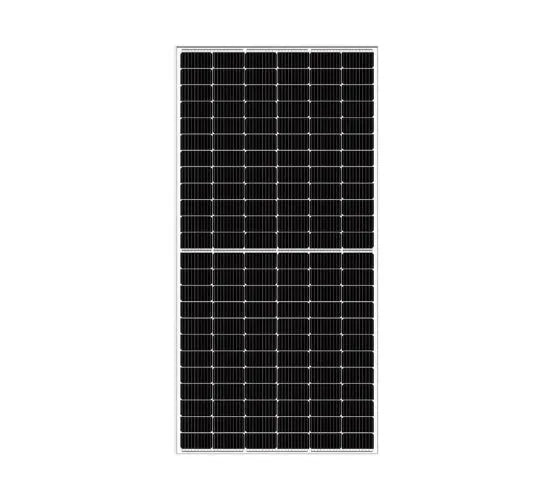

The JA Solar JAM72D40-615/LB is a high-efficiency 615W N-Type Bi-Facial Double Glass Solar Panel engineered for utility-scale, commercial, industrial, and large rooftop solar installations. Built with advanced N-Type Bycium+ cell technology and 16BB half-cell architecture, the module delivers higher energy generation, lower degradation, and superior long-term reliability.
As part of JA Solar's renowned DeepBlue 4.0 Pro Series, this module utilizes bifacial technology to capture sunlight from both the front and rear sides, increasing total energy yield and reducing the Levelized Cost of Energy (LCOE). The panel offers excellent low-light performance, enhanced temperature characteristics, and strong resistance against PID and LID effects.
With a module efficiency of 23.2%, robust double-glass construction, and a 30-year linear power warranty, the JAM72D40-615/LB is an ideal choice for maximizing solar energy production and long-term investment returns.
Couldn't load pickup availability
Ask About This Product
|
Type
|
n-type bi-facial double glass solar panel
|
|
cell technology
|
n-type bycium+
|
|
cell configuration
|
144 cells (6 × 24)
|
|
rated maximum power (pmax)
|
615w
|
|
module efficiency
|
23.2%
|
|
maximum power voltage (vmp)
|
44.28v
|
|
maximum power current (imp)
|
13.89a
|
|
open circuit voltage (voc)
|
53.00v
|
|
short circuit current (isc)
|
14.61a
|
|
power tolerance
|
0 ~ +3%
|
|
maximum system voltage
|
1500v dc
|
|
maximum series fuse rating
|
30a
|
|
operating temperature range
|
-40°c to +85°c
|
|
temperature coefficient of isc
|
+0.045%/°c
|
|
temperature coefficient of voc
|
-0.250%/°c
|
|
temperature coefficient of pmax
|
-0.290%/°c
|
|
nominal operating cell temperature (noct)
|
45 ± 2°c
|
|
bifaciality
|
80% ±10%
|
|
front glass
|
2.0mm tempered glass
|
|
back glass
|
2.0mm tempered glass
|
|
frame
|
anodized aluminum alloy
|
|
junction box
|
ip68 rated, 3 diodes
|
|
connector
|
qc 4.10-35i / mc4-evo2a
|
|
cable cross section
|
4mm²
|
|
cable length (portrait)
|
(+)300mm / (-)400mm
|
|
cable length (landscape)
|
(+)1400mm / (-)1400mm
|
|
dimensions
|
2333 × 1134 × 30 mm
|
|
weight
|
32.5kg
|
The JA Solar JAM72D40-615/LB is a high-efficiency 615W N-Type Bi-Facial Double Glass Solar Panel engineered for utility-scale, commercial, industrial, and large rooftop solar installations. Built with advanced N-Type Bycium+ cell technology and 16BB half-cell architecture, the module delivers higher energy generation, lower degradation, and superior long-term reliability.
As part of JA Solar's renowned DeepBlue 4.0 Pro Series, this module utilizes bifacial technology to capture sunlight from both the front and rear sides, increasing total energy yield and reducing the Levelized Cost of Energy (LCOE). The panel offers excellent low-light performance, enhanced temperature characteristics, and strong resistance against PID and LID effects.
With a module efficiency of 23.2%, robust double-glass construction, and a 30-year linear power warranty, the JAM72D40-615/LB is an ideal choice for maximizing solar energy production and long-term investment returns.
