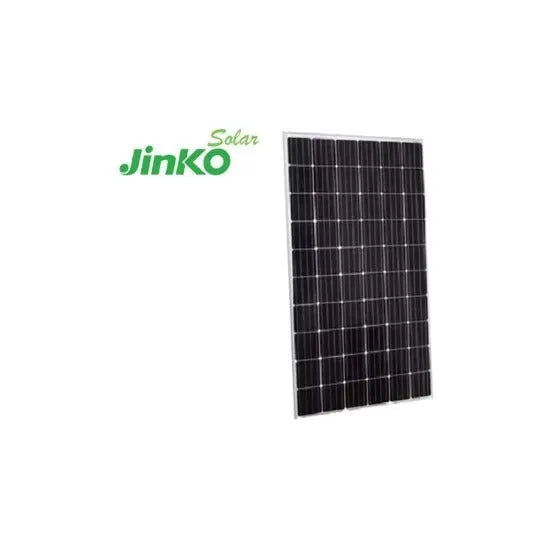

Jinko 535 Watt Mono Solar Panel

Name: Jinko 535 Watt Mono Solar Panel
Brand: Jinko
SKU: Jinko-535w-Mono-Solar
Availability: OutOfStock

Product SKU:Jinko-535w-Mono-Solar

Rs.0 PKR

Sale Sold out

Notice

Note: COD availability and shipping charges depend on product category and weight; heavy-weight items are charged as per logistics rates.

About This Product

Key Features

Tier 1 Solar Panel
High 535W Power Output
P-Type Mono-Crystalline Cells
Robust Construction with Anodized Aluminium Frame an... Show All Key Features

Product Specifications

Type	jinko solar panel
front glass	3.2mm, anti-reflection coating, high transmission, low iron, tempered glass
nominal operating cell temperature (noct)	45å±2‰ãä
cell type	p-type mono-crystalline

Product Details

Introducing the Jinko 535 Watt Mono Solar Panel, engineered for exceptional energy performance and durability. With advanced P-type mono-crystalline cells and a high module efficiency of 20.75%, this panel ensures maximum power generation. Featuring a robust anodized aluminum alloy frame and 3.2mm tempered glass with an anti-reflection coating, it withstands harsh environmental conditions. With a maximum system voltage of 1000/1500VDC (IEC) and a temperature range of -40å¡C to +85å¡C, it's suitable for diverse applications. Backed by a power tolerance of 0~+3% and a weight of 28.9 kg, it offers reliability and ease of installation. Trust Jinko for superior solar solutions that meet your energy needs.

User Manual

jinko-535-watt-mono-solar-pdf.pdf

Powerhouse Benefits

Invoice Available
Secure Payments
365 Days Help Desk

Return & Warranty Policy

Upto 3 Days Returnable
Missing Product
Wrong Product
Damaged Product

Jinko 535w Mono Solar Panel Price in Pakistan

Looking to purchase Jinko 535 Watt Mono Solar Panel in bulk?

Purchase item in bulk quantity
Get at best price for your business

Reviews & Ratings

Ask About This Product

Related Categories

Inquiry products Jinko Solar Panels Mono Solar Panels Out of stock Solar Panels Solar

Type	jinko solar panel
front glass	3.2mm, anti-reflection coating, high transmission, low iron, tempered glass
nominal operating cell temperature (noct)	45å±2‰ãä
cell type	p-type mono-crystalline
frame	anodized aluminium alloy
fuse rating maximum series	25a
maximum power (pmax) stc	535wp, noct
maximum power current (imp) stc	13.17a
noct	10.50a
maximum power voltage stc	40.63v (vmp)
noct	37.91v (vmp)
maximum system voltage	1000/1500vdc (iec)
module efficiency	20.75% stc (%)
no of cells	144 (6ìñ24)
operating temperature	-40‰ãä~+85‰ãä
output cable tuv 1ìñ4.0mm2 (+)	400mm , (-)
power tolerance	0~+3%
temperature coefficient of pmax	-0.35%/‰ãä
of voc	-0.28%/‰ãä
of isc	0.048%/‰ãä
weight	28.9 kg (63.7 lbs)
dimensions	2274ìñ1134ìñ35mm (89.53ìñ44.65ìñ1.38 inch)
short circuit current (isc) stc	13.79a
noct	11.14a
open circuit voltage (voc) stc	49.34v
noct	46.57v
