Type
|
n-type topcon bi-facial dual glass
|
|
maximum power (pmax)
|
590 w
|
|
module efficiency
|
22.84%
|
|
maximum power voltage (vmp)
|
44.17 v
|

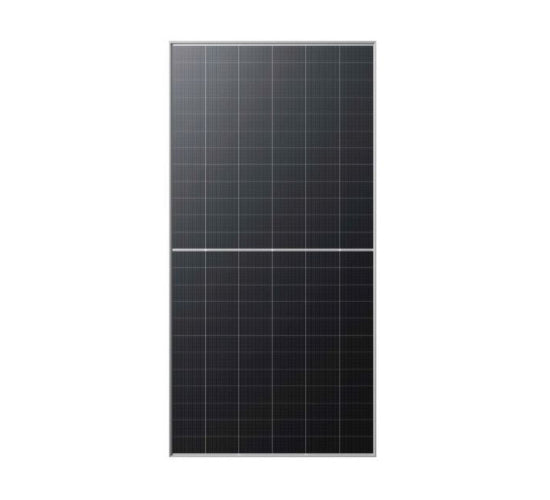

The Jinko Solar Tiger Neo 590W N-Type Bi-Facial Solar Panel is a premium high-efficiency photovoltaic module designed for utility-scale, commercial, industrial, and large residential solar projects. Powered by advanced N-Type TOPCon technology, the panel delivers superior efficiency, lower degradation, and enhanced energy generation throughout its lifespan.
Featuring a dual-glass bifacial design, the module can generate electricity from both the front and rear sides, increasing overall energy yield and reducing the Levelized Cost of Energy (LCOE). Jinko's advanced HOT 2.0 technology, SMBB (Super Multi Busbar) technology, and Anti-PID protection ensure exceptional reliability, durability, and long-term performance.
With an impressive 22.84% module efficiency, 1500V system compatibility, and a robust dual-glass construction, the Tiger Neo 590W is engineered to deliver maxi...
Couldn't load pickup availability
Ask About This Product
|
Type
|
n-type topcon bi-facial dual glass
|
|
maximum power (pmax)
|
590 w
|
|
module efficiency
|
22.84%
|
|
maximum power voltage (vmp)
|
44.17 v
|
|
maximum power current (imp)
|
13.36 a
|
|
open circuit voltage (voc)
|
52.90 v
|
|
short circuit current (isc)
|
14.07 a
|
|
power tolerance
|
0 ~ +3%
|
|
maximum system voltage
|
1500 vdc (iec)
|
|
maximum series fuse rating
|
30 a
|
|
cell type
|
n-type mono-crystalline
|
|
number of cells
|
144 cells (72 × 2)
|
|
front glass
|
2.0 mm anti-reflection coated glass
|
|
back glass
|
2.0 mm heat strengthened glass
|
|
frame
|
anodized aluminium alloy
|
|
junction box
|
ip68 rated
|
|
output cable size
|
4.0 mm²
|
|
cable length
|
(+) 400 mm / (-) 200 mm
|
|
operating temperature
|
-40°c to +85°c
|
|
nominal operating cell temperature (noct)
|
45 ± 2°c
|
|
bifacial factor
|
80 ± 5%
|
|
temperature coefficient (pmax)
|
-0.29% / °c
|
|
temperature coefficient (voc)
|
-0.25% / °c
|
|
temperature coefficient (isc)
|
0.045% / °c
|
|
dimensions
|
2278 × 1134 × 30 mm
|
|
weight
|
31.0 kg
|
|
protection class
|
class ii
|
|
fire rating
|
class c
|
|
front load capacity
|
5400 pa
|
|
rear load capacity
|
2400 pa
|
|
590w output power
|
|
|
n-type topcon technology
|
|
|
bi-facial dual glass module
|
|
|
22.84% efficiency
|
|
|
hot 2.0 technology
|
|
|
smbb technology
|
|
|
anti-pid protection
|
|
|
1500v system voltage
|
|
|
ip68 junction box
|
|
|
30-year linear warranty
|
The Jinko Solar Tiger Neo 590W N-Type Bi-Facial Solar Panel is a premium high-efficiency photovoltaic module designed for utility-scale, commercial, industrial, and large residential solar projects. Powered by advanced N-Type TOPCon technology, the panel delivers superior efficiency, lower degradation, and enhanced energy generation throughout its lifespan.
Featuring a dual-glass bifacial design, the module can generate electricity from both the front and rear sides, increasing overall energy yield and reducing the Levelized Cost of Energy (LCOE). Jinko's advanced HOT 2.0 technology, SMBB (Super Multi Busbar) technology, and Anti-PID protection ensure exceptional reliability, durability, and long-term performance.
With an impressive 22.84% module efficiency, 1500V system compatibility, and a robust dual-glass construction, the Tiger Neo 590W is engineered to deliver maximum energy production even in challenging environmental conditions.
