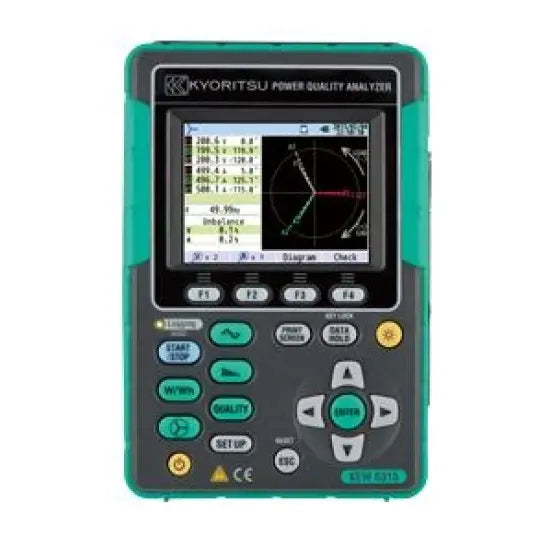

KEW 6315 Power Quality Analyzer In Pakistan Rs 1,400,000/-. The KEW 6315 Power Quality Analyzer is a cutting-edge, multifunctional instrument designed to monitor, record, and analyze power quality parameters in three-phase and single-phase electrical systems. It provides comprehensive diagnostics including voltage, current, power, power factor, harmonics, flicker, and waveform analysis, making it ideal for industrial facilities, utility companies, and energy audits. With intuitive navigation, large color display, and extensive memory capabilities, the KEW 6315 delivers professional-grade precision and flexibility in the field or on-site.
Simultaneous measurement of voltage, current, and power on 3-phase/1-phase systems
Compatible with various clamp sensors for flexible current range
Complies with international safety standards (CAT IV 600V)
Customizable recording intervals and long-term monitoring
Flicker, unbalance, and inrush current detection
Ideal for power quality audits, troubleshooting, and energy analysis
Real-time waveform and harmonic analysis up to the 50th order
SD card data storage and USB for easy data transfer
Supplied with PC software for detailed analysis and reporting
User-friendly interface with large color display
Product Specifications
Type
quality analyzer
measurement functions
voltage, current, power, energy, harmonics, flicker, waveform, power factor, frequency
current range
dependent on clamp sensor (varies by model)
dimensions
175 × 120 × 75 mm
display
3.5" color tft lcd
energy measurement
kwh, kvarh, kvah
flicker measurement
yes (pst and plt values)
harmonic analysis
up to 50th order
interfaces
usb, sd card, optional bluetooth
memory
sd card up to 2gb (standard), supports up to 32gb
power measurement
active, reactive, apparent (kw, kvar, kva)
power supply
ac adapter or battery pack
recording interval
1 sec to 30 min (user selectable)
safety standards
iec 61010-1 cat iv 600v / cat iii 1000v
voltage range
6 v – 1000 v (ac)
waveform display
yes (real-time)
Product Details
KEW 6315 Power Quality Analyzer In Pakistan Rs 1,400,000/-. The KEW 6315 Power Quality Analyzer is a cutting-edge, multifunctional instrument designed to monitor, record, and analyze power quality parameters in three-phase and single-phase electrical systems. It provides comprehensive diagnostics including voltage, current, power, power factor, harmonics, flicker, and waveform analysis, making it ideal for industrial facilities, utility companies, and energy audits. With intuitive navigation, large color display, and extensive memory capabilities, the KEW 6315 delivers professional-grade precision and flexibility in the field or on-site.
