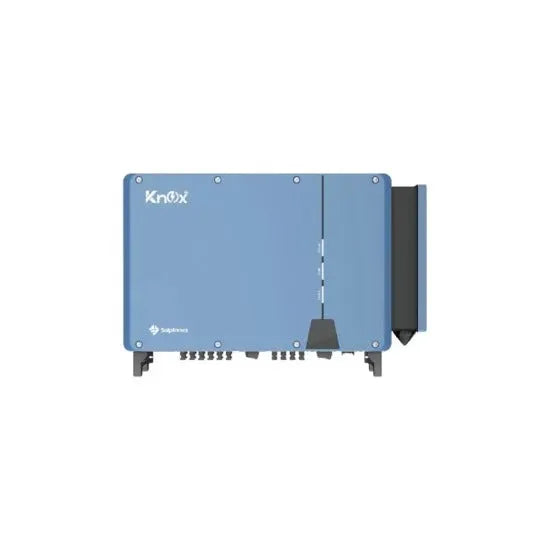

Knox 110kw PV165KW Three Phase On Grid Solar Inverter

Name: Knox 110kw PV165KW Three Phase On Grid Solar Inverter
Brand: Knox
SKU: PV165KW
Availability: OutOfStock

Price On Request

Rs.0 PKR

Sale

Note: COD availability and shipping charges depend on product category and weight; heavy-weight items are charged as per logistics rates.

Type	three phase on grid solar inverter
mpp voltage range/ rated input voltage	200v - 1000 v / 630 v
degree of protection	ip66
topology	non-isolated

include 24/7 system monitoring, quick setup with Solplanet apps, and a fuse-free design with string-level management

knox-110kw-pv165kw-solar-inverter.pdf

Type	three phase on grid solar inverter
mpp voltage range/ rated input voltage	200v - 1000 v / 630 v
degree of protection	ip66
topology	non-isolated
ac connection	ot/dt terminal (max.240mm2)
ac nominal voltage	220 v / 380 v 230 v / 400 v
dc connection	phoenix contact
ac voltage range	312 v - 528 v
max input voltage	1100 v
maximum pv array power	165000 wp stc
operating temperature range	-25°c … +60°c
phase	three phase
protection class	i / ac
rated active power	110000 w
weight	85 kg
dimensions	984/ 640 / 330 mm
