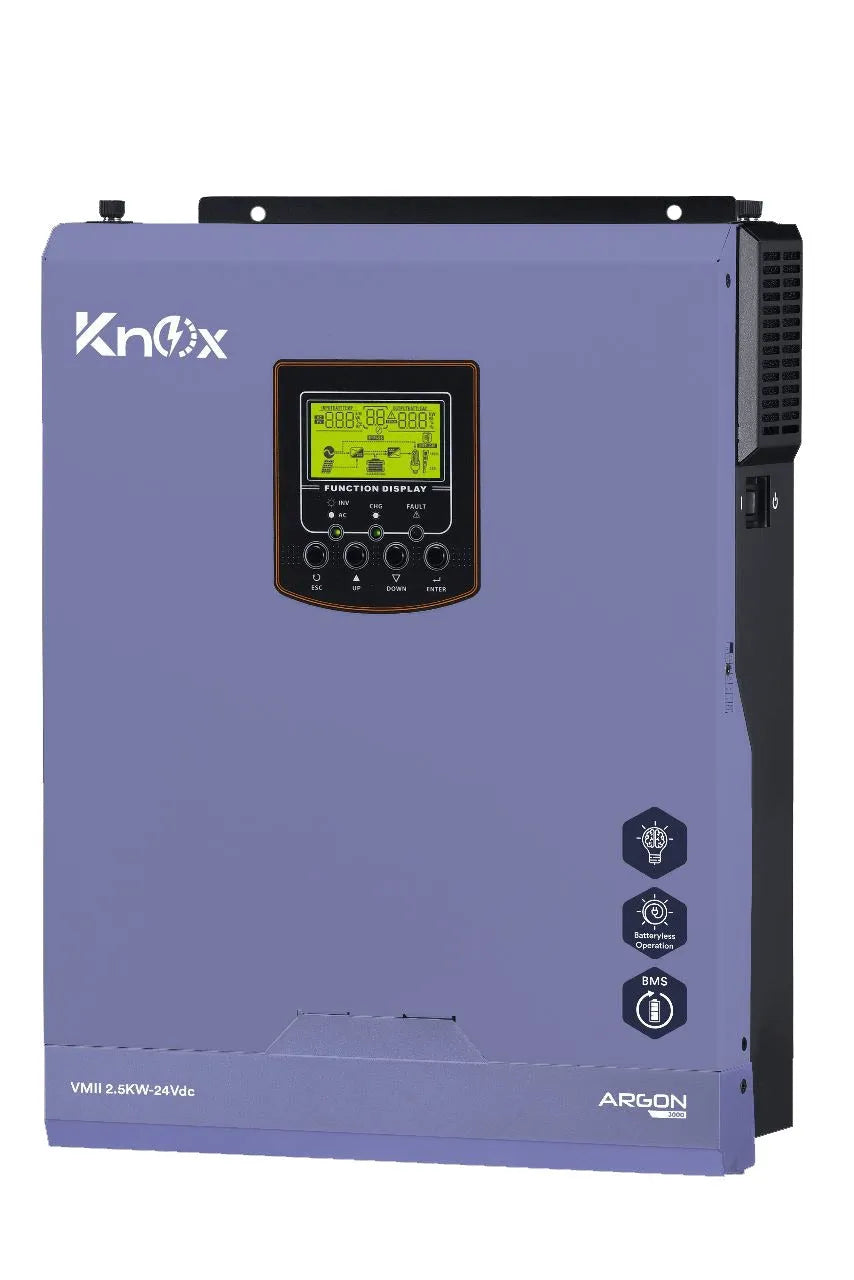

a high efficiency rate of over 90%, delivering more usable energy with minimal waste. Its compact design and lightweight build (weighing only 10 kg) simplify installation and maintenance, ensuring it's the perfect option for both residential and small commercial off-grid power needs.
Rated Power of 3000VA/3000W with Surge Power of 6000VA for heavy-duty loads
Over 93% peak efficiency for optimal energy usage
MPPT Technology for enhanced solar energy conversion
Pure Sine Wave Output for compatibility with sensitive electronics
24V DC battery system with Floating Charge Voltage of 54V DC
Compact design with dimensions of 440 x 300 x 120 mm and weighs 10 kg for easy installation
Wide AC Input Range of 170-280V AC for computers and 90-280V AC for home appliances
Built-in protection features against overload, short circuit, over-voltage, and over-temperature
RS232/RS485 communication interface with optional Wi-Fi for remote monitoring
Operates in temperatures from -10°C to 50°C and up to 95% humidity
Product Specifications
Type
off-grid inverter
rated power
3000va / 3000w
surge power
6000va
battery voltage
24v dc
battery voltage range
24v dc (nominal)
floating charge voltage
54v dc
overcharge protection voltage
63v dc
dimensions (d x w x h)
440 x 300 x 120 mm
net weight
10 kg
communication interface
rs232/rs485, optional wi-fi
operating temperature range
-10°c to 50°c
storage temperature range
-15°c to 60°c
humidity
5% to 95% relative humidity (non-condensing)
efficiency (peak)
93%
transfer time
10 ms (for personal computers), 20 ms (for home appliances)
waveform
pure sine wave
solar charger type
mppt (maximum power point tracking)
maximum pv array open circuit voltage
500v dc
maximum pv array power
3500w
mpp range @ operating voltage
120 ~ 450v dc
maximum solar charge current
100a
maximum ac charge current
100a
maximum charge current
100a
ac input voltage
230v ac ± 5%
ac input voltage range
170-280v ac (for personal computers), 90-280v ac (for home appliances)
frequency range
50 hz / 60 hz (auto-sensing)
ac output voltage
230v ac
ac output waveform
pure sine wave
ac output regulation (battery mode)
±5%
environmental protection and durability
ip rating
ip20 (indoor use)
cooling method
natural convection cooling
protection features
overload, over-voltage, under-voltage, short circuit, over-temperature protection
compact and lightweight
with a dimension of 440 x 300 x 120 mm and a weight of only 10 kg, it is easy to install and place in a variety of off-grid locations
installation type
wall-mounted (with mounting brackets provided)
Product Details
a high efficiency rate of over 90%, delivering more usable energy with minimal waste. Its compact design and lightweight build (weighing only 10 kg) simplify installation and maintenance, ensuring it's the perfect option for both residential and small commercial off-grid power needs.
