Type

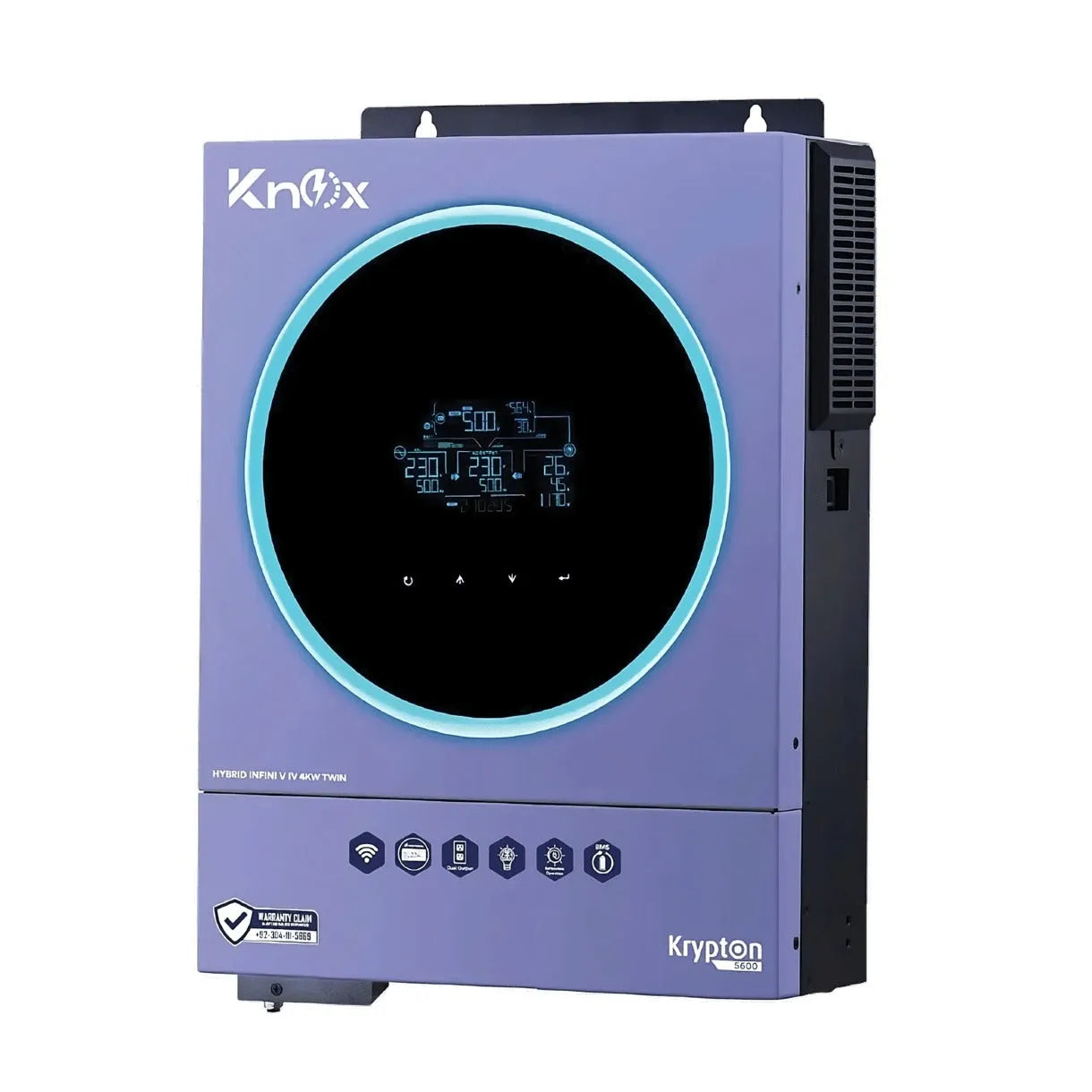

Hybrid Solar Inverter
Phase
1-phase in / 1-phase out
Dimensions (D x W x H)
120 x 295 x 468 mm
Net Weight
11 kg
Operating Temperature Range
-10°C to 50°C
Humidity Range
0 ~ 90% RH (Non-condensing)
Maximum PV Input Power
5000W
Rated Output Power
3000W
Maximum Charging Power
2880W
Nominal DC Voltage / Maximum DC Voltage
360 VDC / 450 VDC
Start-up Voltage / Initial Feeding Voltage
130 VDC / 150 VDC
MPP Voltage Range
120 VDC ~ 430 VDC
Number of MPP Trackers
1
Maximum Input Current
18 A
Nominal Output Voltage
220/230/240 VAC
Output Voltage Range
184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current
13 A
Power Factor
> 0.99
Efficiency
95%
Maximum Conversion Efficiency (DC/AC)
93%
AC Start-up Voltage / Auto Restart Voltage
120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range
90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current
40 A
Maximum DC Voltage
450 VDC
MPP Voltage Range
120 VDC ~ 430 VDC
Number of MPP Trackers
1
Maximum Input Current
18 A
Nominal Output Voltage
220/230/240 VAC
Output Waveform
Pure Sine Wave
Efficiency (DC to AC)
93%
Nominal DC Voltage / Maximum DC Voltage
360 VDC / 450 VDC
Start-up Voltage / Initial Feeding Voltage
130 VDC / 150 VDC
MPP Voltage Range
120 VDC ~ 430 VDC
Number of MPP Trackers
1
Maximum Input Current
18 A
Nominal Output Voltage
220/230/240 VAC
Output Voltage Range
184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current
13 A
AC Start-up Voltage / Auto Restart Voltage
120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range
90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current
40 A
Nominal Output Voltage
220/230/240 VAC
Efficiency (DC to AC)
93%
Nominal DC Voltage
24 VDC
Maximum Solar Charging Current
60 A
Maximum AC Charging Current
60 A
Maximum Charging Current
60 A
Parallel Function
Yes, supports up to 9 units in parallel
Communication Ports
USB, RS-232/Dry Contact
Durability & Protection
IP Rating
IP21 (Protection against dust and moisture ingress)
Cooling Method
Fan-assisted cooling for efficient thermal management
Humidity
0 ~ 90% RH (Non-condensing)
Operating Temperature Range
-10°C to 50°C
Key Features
Hybrid Operation supports grid-tied, off-grid, and battery less configurations
Real-time Monitoring includes monitoring software for tracking system performance
Durability with an IP21 rating for dust and moisture protection
Parallel Operation allows connection of up to 9 units for system expansion
High Efficiency with conversion efficiency up to 93%
Flexible Voltage Range with MPP voltage range from 120VDC to 430VDC
Pure Sine Wave Output ensures clean, stable AC power
Wide Input Range compatible with varied AC input (90 - 280 VAC)
