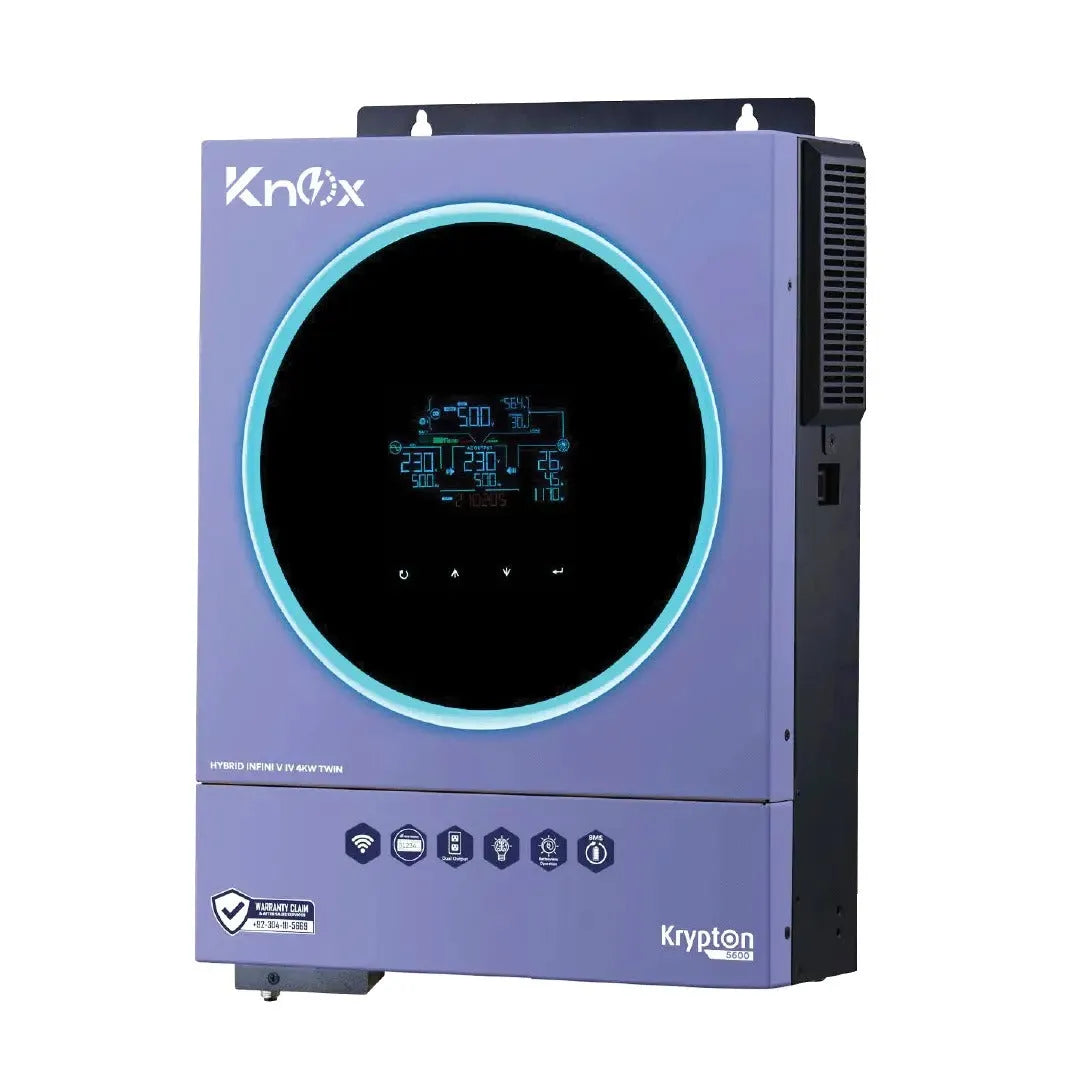

Knox Krypton 4kW PV5600W Hybrid Solar Inverter Price in Pakistan is Rs. 128,000/-. The Knox Krypton 4kW PV5600W Hybrid Solar Inverter is a powerful and versatile solar inverter designed to meet the energy needs of modern homes and businesses. It integrates both solar power generation and battery storage systems with advanced hybrid technology, offering seamless grid-tied, off-grid, and batteryless operations. Equipped with built-in Wi-Fi for online monitoring, this inverter allows users to track their system’s performance in real-time for efficient energy management. With a robust IP21 rating for durability, it ensures protection against dust and moisture. The inverter features dual outputs, capable of handling both smart and heavy loads, making it ideal for a wide range of appliances. Additionally, the system includes an intelligent Battery Management System (BMS) to optimize battery performance and longevity.
Built-in Wi-Fi for online monitoring and real-time performance tracking
Dual Output for handling both smart and heavy load appliances
Durability and Protection with an IP21 rating against dust and moisture
Hybrid Operation supports grid-tied, off-grid, and batteryless configurations
Battery Management System for optimized battery performance and longevity
High Efficiency with a maximum DC/AC conversion efficiency of 95%
Surge Power Capacity up to 8000VA for handling high-demand applications
Parallel Operation supports up to 9 units for system expansion
Pure Sine Wave Output ensures stable and clean AC power for sensitive devices
Product Specifications
Type
hybrid solar inverter
phase
single phase
dimensions (d x w x h)
119 x 313.6 x 457.5 mm
net weight
12 kg
operating temperature range
-10°c to 50°c
storage temperature range
-15°c to 60°c
humidity
0 ~ 90% rh (non-condensing)
communication ports
usb, rs232, rs485, wi-fi, dry contact
parallel function
yes, supports up to 9 units in parallel
maximum pv input power
5600w
rated output power
4000w
nominal dc voltage / maximum dc voltage
500 vdc
mpp voltage range
60vdc ~ 450vdc
start-up voltage / initial feeding voltage
120 vdc / 150 vdc
number of mpp trackers
1
maximum input current
27a (max 40a)
nominal output voltage
220/230/240 vac
output voltage range
184 - 264.5 vac or 195.5 - 253 vac (selectable)
nominal output current
18a
power factor
> 0.99
maximum conversion efficiency (dc/ac)
95%
frequency range
50 hz / 60 hz (auto sensing)
efficiency (dc to ac)
93%
surge power
8000va
transfer time (for personal computers)
10 ms
transfer time (for home appliances)
20 ms
nominal output voltage
220/230/240 vac
output waveform
pure sine wave
efficiency (dc to ac)
93%
battery management system
includes intelligent bms for battery performance optimization
nominal dc voltage
48 vdc
floating charge voltage
54 vdc
overcharge protection
63 vdc
maximum solar charging current
120a
maximum ac charging current
120a
maximum charging current
120a
solar charger type
mppt (maximum power point tracking)
ac start-up voltage / auto restart voltage
120 - 140 vac / 180 vac
acceptable input voltage range
90 - 280 vac or 170 - 280 vac
maximum ac input current
26a
ip rating
ip21 (protection from dust and moisture ingress)
cooling method
fan-assisted for efficient thermal management
Product Details
Knox Krypton 4kW PV5600W Hybrid Solar Inverter Price in Pakistan is Rs. 128,000/-. The Knox Krypton 4kW PV5600W Hybrid Solar Inverter is a powerful and versatile solar inverter designed to meet the energy needs of modern homes and businesses. It integrates both solar power generation and battery storage systems with advanced hybrid technology, offering seamless grid-tied, off-grid, and batteryless operations. Equipped with built-in Wi-Fi for online monitoring, this inverter allows users to track their system’s performance in real-time for efficient energy management. With a robust IP21 rating for durability, it ensures protection against dust and moisture. The inverter features dual outputs, capable of handling both smart and heavy loads, making it ideal for a wide range of appliances. Additionally, the system includes an intelligent Battery Management System (BMS) to optimize battery performance and longevity.
