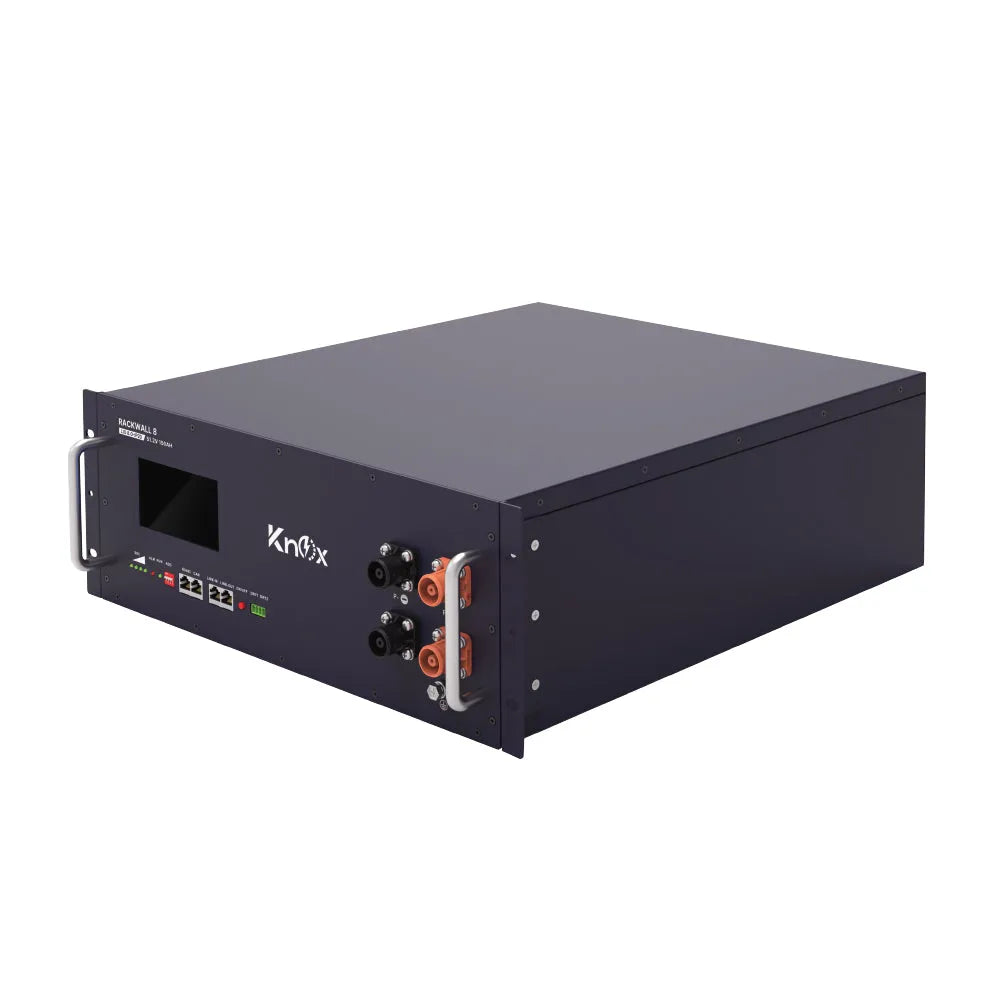

Knox Rack Wall 8-51.2V IP20 Lithium-ion Battery Price in Pakistan is Rs. 395,000/-. The Knox Rack Wall 8 is a robust 51.2V, 150Ah lithium iron phosphate (LiFePO4) battery designed for reliable and scalable energy storage in residential, commercial, and off-grid solar applications. Delivering 7680Wh of total energy, it supports parallel connection of up to 15 units for larger storage capacity. Built with high-grade LiFePO4 cells, a smart Battery Management System (BMS), and a 4.3" touch LCD screen, it enables real-time monitoring of system status, SOC, and alarms. With over 6000 life cycles, a 10-year calendar life, and advanced safety protections, this IP20-rated battery ensures long-term performance and efficiency. The compact 19” rack or wall-mountable design simplifies installation in various setups.
4.3" Touch LCD for SOC, alarms, and live system monitoring
7680Wh total energy with 150A continuous discharge and 180A pulse output
Built-in protections: Over/Under voltage, over current, short circuit, temperature
RS485/CAN communication for inverters and LINK-IN/OUT for battery-to-battery
Safe and long-lasting LiFePO4 chemistry with >6000 cycles
Supports up to 15 units in parallel (no series support)
Wall-mountable or 19” rack mount design for space-saving installation
Product Specifications
Type
battery
nominal voltage
51.2v
nominal capacity
150ah
total energy
7680wh
dimension (w×d×h)
442 × 520 × 175 mm
weight
65.0 kg
max. charging current
150a
max. discharging current
150a
pulse discharge current
180a @ 2 seconds
charging voltage
55.2 ~ 57.6v
end of discharge voltage
48v
operating humidity
0 ~ 95% rh (non-condensing)
cycle life
>6000 cycles
link-in, link-out (battery-to-battery)
protection features
over voltage, low voltage, over current, short circuit, over/low temperature
parallel support
yes, up to 15 sets
Product Details
Knox Rack Wall 8-51.2V IP20 Lithium-ion Battery Price in Pakistan is Rs. 395,000/-. The Knox Rack Wall 8 is a robust 51.2V, 150Ah lithium iron phosphate (LiFePO4) battery designed for reliable and scalable energy storage in residential, commercial, and off-grid solar applications. Delivering 7680Wh of total energy, it supports parallel connection of up to 15 units for larger storage capacity. Built with high-grade LiFePO4 cells, a smart Battery Management System (BMS), and a 4.3" touch LCD screen, it enables real-time monitoring of system status, SOC, and alarms. With over 6000 life cycles, a 10-year calendar life, and advanced safety protections, this IP20-rated battery ensures long-term performance and efficiency. The compact 19” rack or wall-mountable design simplifies installation in various setups.
