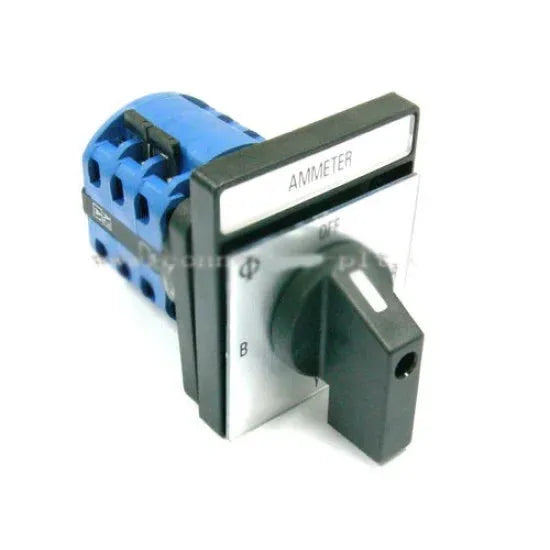

Kraus & Naimer CA10 A058 Ammeter Selector Switch Price is Rs.16,200/-. The Kraus & Naimer CA10 A058 Ammeter Selector Switch is a robust rotary cam switch designed for measuring current across all three phases using a single ammeter. Ideal for electrical panels, generator control systems, and industrial monitoring setups, it allows manual selection between L1, L2, and L3 phases. When used with a single ammeter and appropriate current transformers (CTs), this switch offers a cost-effective and space-saving solution for continuous phase-wise current monitoring. Built with precision and durability, the CA10 A058 ensures safe, smooth operation and long service life.
Allows current monitoring of all three phases using one ammeter
Clear position markings for easy selection
Compact DIN-standard panel mounting
Compatible with external CTs (typically 5A secondary)
Durable, flame-retardant housing
Long electrical and mechanical lifespan
Reduces cost and panel space requirements
Smooth rotary switching mechanism
Product Specifications
Type
ammeter selector switch
function
ammeter selector for 3-phase systems
connection type
screw terminals
housing material
flame-retardant thermoplastic
mounting type
panel mount (din 48 × 48 mm front plate)
operating temperature
-25°c to +55°c
protection degree
ip20 (rear), ip65 (front with sealing gasket)
rated current
10a
rated voltage
up to 690v ac
switching mechanism
rotary cam
switching positions
3-position (l1, l2, l3)
Product Details
Kraus & Naimer CA10 A058 Ammeter Selector Switch Price is Rs.16,200/-. The Kraus & Naimer CA10 A058 Ammeter Selector Switch is a robust rotary cam switch designed for measuring current across all three phases using a single ammeter. Ideal for electrical panels, generator control systems, and industrial monitoring setups, it allows manual selection between L1, L2, and L3 phases. When used with a single ammeter and appropriate current transformers (CTs), this switch offers a cost-effective and space-saving solution for continuous phase-wise current monitoring. Built with precision and durability, the CA10 A058 ensures safe, smooth operation and long service life.
