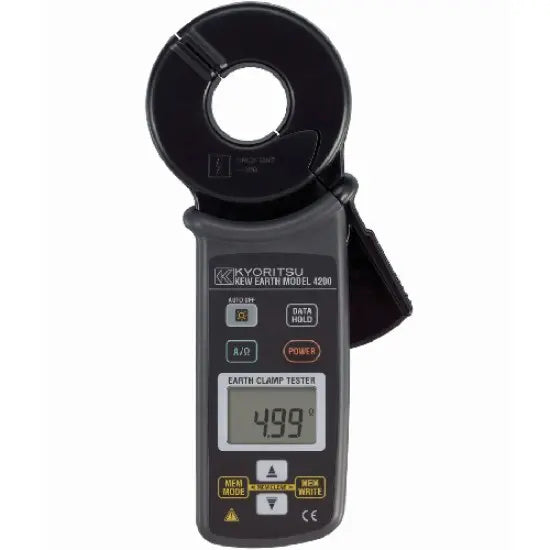

Kyoritsu 4200 Earth Clamp Tester

Name: Kyoritsu 4200 Earth Clamp Tester
Brand: KYORITSU
SKU: KYO_4200
Availability: OutOfStock

Price On Request

Rs.0 PKR

Sale

The earth resistance from 0.05 to 1500O can be measured without the auxiliary earth spikes.
(The Multiple Earthing System.)
Tru... Show All Key Features

Type	clamp meter
applicable standards	iec 61010-1 cat ? 300v pollution degree2 iec 61010-2-032, iec 61326 (emc)
auto power off	turns power off about 10 minutes after the last button operation.
conductor size	approx. ø32mm

Kyoritsu_4200_Earth_Clamp_Tester.pdf

Type	clamp meter
applicable standards	iec 61010-1 cat ? 300v pollution degree2 iec 61010-2-032, iec 61326 (emc)
auto power off	turns power off about 10 minutes after the last button operation.
conductor size	approx. ø32mm
earth resistance auto range	20.00/200.0/1500o ±1.5%±0.05o(0.00 - 20.99o)* ±2%±0.5o(16.0 - 99.9o) ±3%±2o(100.0 - 209.9o) ±5%±5o(160 - 399o) ±10%±10o(400 - 599o)
included accessories	r6 x 4, instruction manual 8304 (resister for operation check) 9166 (carrying case[hard])
measurement time	approx.12 hours (when r6 is used) approx.24 hours (when lr6 is used)
operating indication	earth resistance function
optional accessories	7100a (precision measurement cord set)
overload protection	earth resistance
safety standard	iec 61010-1 cat iii 300v pollution degree 2, iec 61557
sample rate	approx. 1 times per second
ac current	(50hz/60hz) auto range values are displayed, but accuracy isn't guaranted(600 - 1580o) 100.0/1000ma/10.00/30.0a ±2%±0.7ma(0.0 - 104.9ma) ±2%(80ma - 31.5a)
accuracy	earth resistance
weight	approx. 780g (including batteries)
current consumption	approx. 50ma (max.100ma)
response time	approx. 7 seconds (earth resistance) approx. 2 seconds (ac current)
power source	dc6v
