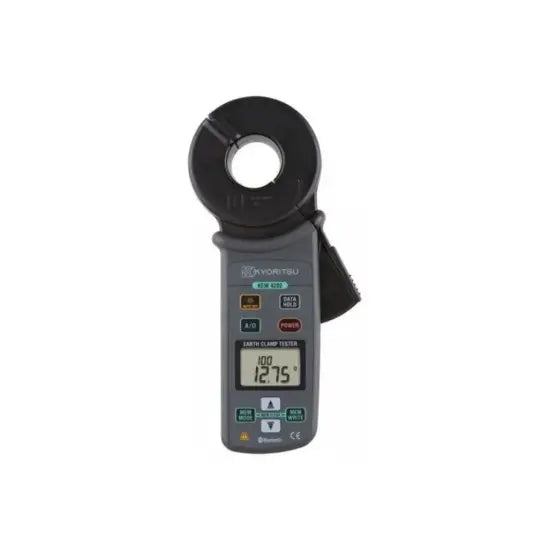

Kyoritsu 4202 Earth Clamp Tester

Name: Kyoritsu 4202 Earth Clamp Tester
Brand: KYORITSU
SKU: KYO_4202
Availability: OutOfStock

Price On Request

Rs.0 PKR

Sale

Real time measurements can be transferred, shown and saved on Android device (up to 100 measurements)
Saved data includes measuremen... Show All Key Features

Kyoritsu_4202_Earth_Clamp_Tester.pdf

Type	clamp tester
communication interface	bluetooth ver2.1 + edr class2
conductor size	approx.ø32mm
earth resistance auto range	20.00/200.00/1500o
sample rate	approx. 1 times per second
ac current	50hz/60hz
response time	approx. 7 seconds (earth resistance) approx. 2 seconds (ac current)
power source	dc6v
measurement time	approx.5 hours (when r6 is used) approx. 21 hours (when lr6 is used)
auto power-off	turns power off about 10 minutes after the last button operation.
over-range indication	olis displayed when input exceeds the upper limit of a measuring range
weight	780g
dimensions	246(l)×120(w)×54(d)mm
