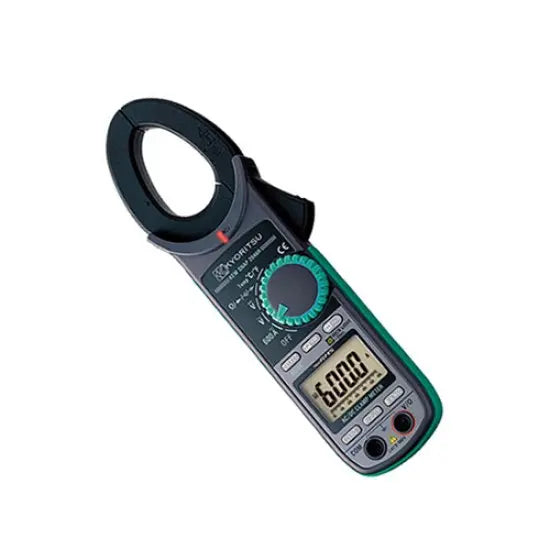

The Kyoritsu KEW 2046R is a professional-grade True RMS AC/DC digital clamp meter designed for accurate and safe electrical measurements in various environments.With a 600A current range, 600V voltage capacity, and comprehensive measurement functions—including resistance, frequency, capacitance, and temperature—it is ideal for power distribution, maintenance, and industrial applications.Its ergonomic design, non-contact voltage detection, and compliance with CAT IV 600V safety standards make it a reliable tool for professionals.
Inrush current detection for motor start-up testing
Large 40mm jaw for wide conductors
Lightweight and ergonomic design
Measures AC/DC current up to 1000A
Product Specifications
Type
clamp meter
ac current
0 – 1000a (true rms)
ac voltage
0 – 600v (true rms)
auto power off
yes
backlight display
yes
clamp jaw opening
40mm
continuity buzzer
yes
data hold / max hold
yes
dc current
0 – 1000a
dc voltage
0 – 600v
dimensions
approx. 243(l) × 77(w) × 36(d) mm
diode test
yes
display count
6000
inrush current measurement
yes
power supply
2 × aaa batteries
resistance
0 – 60mo
safety rating
cat iv 300v / cat iii 600v
weight
approx. 320g (including battery)
Product Details
The Kyoritsu KEW 2046R is a professional-grade True RMS AC/DC digital clamp meter designed for accurate and safe electrical measurements in various environments.With a 600A current range, 600V voltage capacity, and comprehensive measurement functions—including resistance, frequency, capacitance, and temperature—it is ideal for power distribution, maintenance, and industrial applications.Its ergonomic design, non-contact voltage detection, and compliance with CAT IV 600V safety standards make it a reliable tool for professionals.
