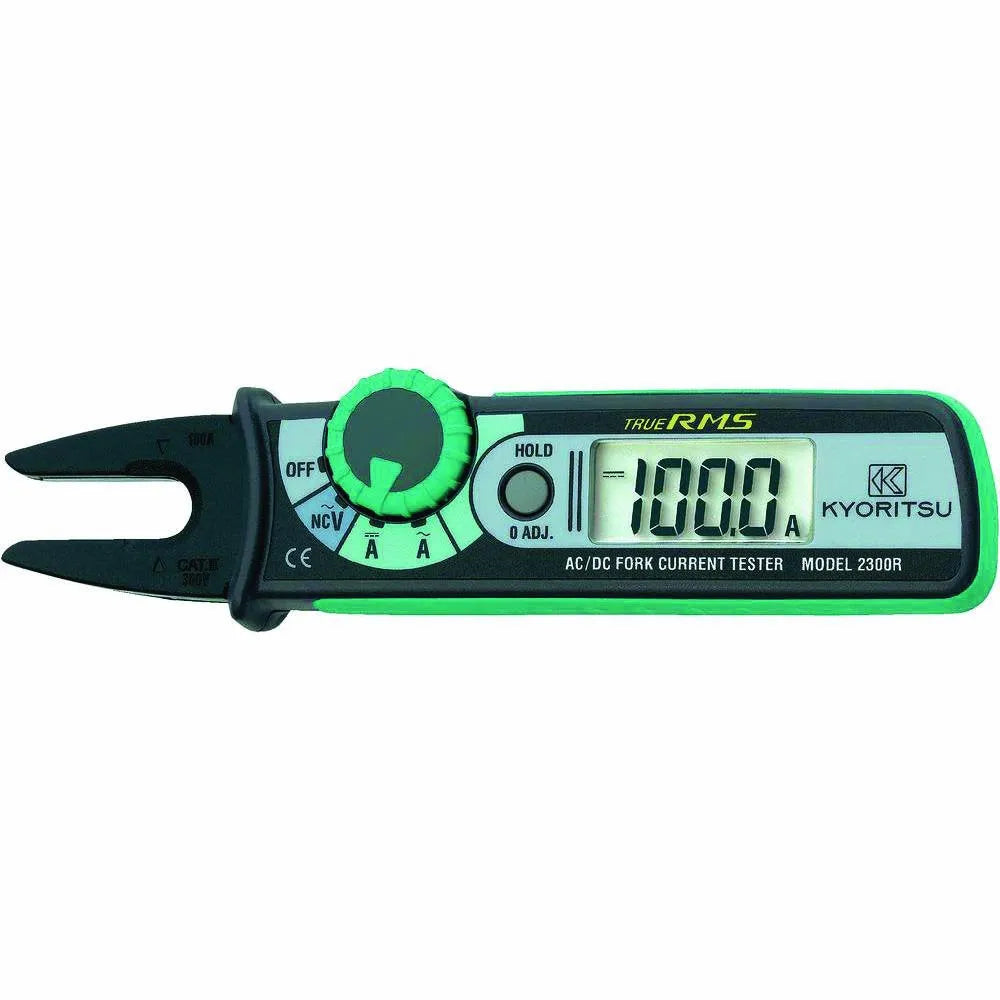

Kyoritsu KEW 2300R Current Tester Price is on inquiry/-. The Kyoritsu KEW 2300R is an ultra-compact True RMS fork-type current tester designed for fast, reliable AC current measurement in tight spaces. Featuring an open jaw design, it allows non-contact current testing up to 100A AC without interrupting circuits—ideal for electricians working in densely wired panels or confined areas. Despite its pocket-size form, the KEW 2300R offers professional-grade accuracy, a 6000 count backlit LCD, and versatile functions including AC voltage, resistance, continuity, and diode testing. With a rugged build and CAT IV 300V safety rating, it’s a practical, everyday tool for quick diagnostics and troubleshooting on the go.
Measures up to 100A AC without breaking the circuit
Open-jaw (fork) design for non-contact testing
Slim and compact—perfect for crowded panels
Tests voltage, resistance, continuity, and diodes
Product Specifications
Type
current tester
ac current
0.1 – 100a (true rms)
ac voltage
0 – 600v (true rms)
auto power off
yes
backlight display
yes
continuity buzzer
yes
data hold
yes
dc voltage
0 – 600v
dimensions
161(l) × 50(w) × 31(d) mm
diode test
yes
display count
6000
fork jaw size
9.5mm × 12mm (suitable for conductors up to 10mm dia.)
frequency range
40 – 400hz (for current)
power supply
2 × aaa batteries
resistance
0 – 60mo
safety rating
cat iv 300v / cat iii 600v
weight
approx. 140g (including battery)
Product Details
Kyoritsu KEW 2300R Current Tester Price is on inquiry/-. The Kyoritsu KEW 2300R is an ultra-compact True RMS fork-type current tester designed for fast, reliable AC current measurement in tight spaces. Featuring an open jaw design, it allows non-contact current testing up to 100A AC without interrupting circuits—ideal for electricians working in densely wired panels or confined areas. Despite its pocket-size form, the KEW 2300R offers professional-grade accuracy, a 6000 count backlit LCD, and versatile functions including AC voltage, resistance, continuity, and diode testing. With a rugged build and CAT IV 300V safety rating, it’s a practical, everyday tool for quick diagnostics and troubleshooting on the go.
