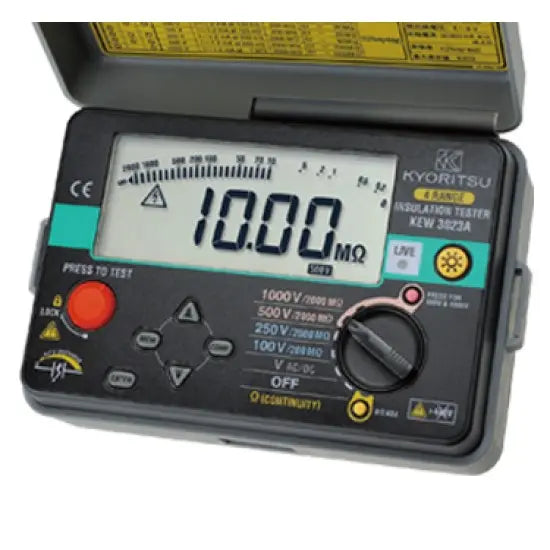

kyoritsu Kew 3023A Digital Insulation Price in Pakistan 55,000/-. The Kyoritsu KEW 3023A is a professional-grade digital insulation and continuity tester designed for electricians, maintenance engineers, and safety inspectors.With four selectable test voltages (100V, 250V, 500V, 1000V), it offers precise insulation resistance measurements up to 2000 MΩ.The device also features a 200 mA continuity test, AC voltage measurement, and a rapid 1-second result display.Its c...
Four Test Voltages Selectable 100V, 250V, 500V, and 1000V for versatile insulation testing.
Backlit Display Ensures readability in dimly lit environments.
Comparator Function Provides PASS/FAIL indication with an audible buzzer for quick assessment.
Memory Storage Capable of storing up to 99 test results for record-keeping and analysis.
Multi-Functionality Combines insulation resistance testing, continuity testing with 200 mA current, and AC voltage measurement in one unit.
Rapid Measurement Displays insulation resistance results in approximately 1 second.
Robust Design Complies with international safety standards for reliable operation in various conditions.
Safety Lock Prevents accidental operation on 500V and 1000V ranges.
Product Specifications
Insulation test voltage
250v / 500v / 1000v
measuring range
250v 0.1 mω to 100 mω, 500v 0.1 mω to 2000 mω, 1000v 0.1 mω to 4000 mω
ac voltage measurement
0 – 600v (50/60hz)
display
digital lcd with bar graph
accuracy
±2% of reading
power supply
6 x aa batteries
dimensions
approx. 167(l) × 100(w) × 54(d) mm
weight
approx. 550g including batteries
safety standards
iec 61010-1 cat iii 600v
Product Details
kyoritsu Kew 3023A Digital Insulation Price in Pakistan 55,000/-. The Kyoritsu KEW 3023A is a professional-grade digital insulation and continuity tester designed for electricians, maintenance engineers, and safety inspectors.With four selectable test voltages (100V, 250V, 500V, 1000V), it offers precise insulation resistance measurements up to 2000 MΩ.The device also features a 200 mA continuity test, AC voltage measurement, and a rapid 1-second result display.Its compact design, backlit LCD, and memory storage for up to 99 readings make it ideal for use in various environments, including low-light conditions.Built to meet IEC 61010-1 CAT III 600V safety standards, the KEW 3023A ensures both accuracy and safety in electrical testing applications.
