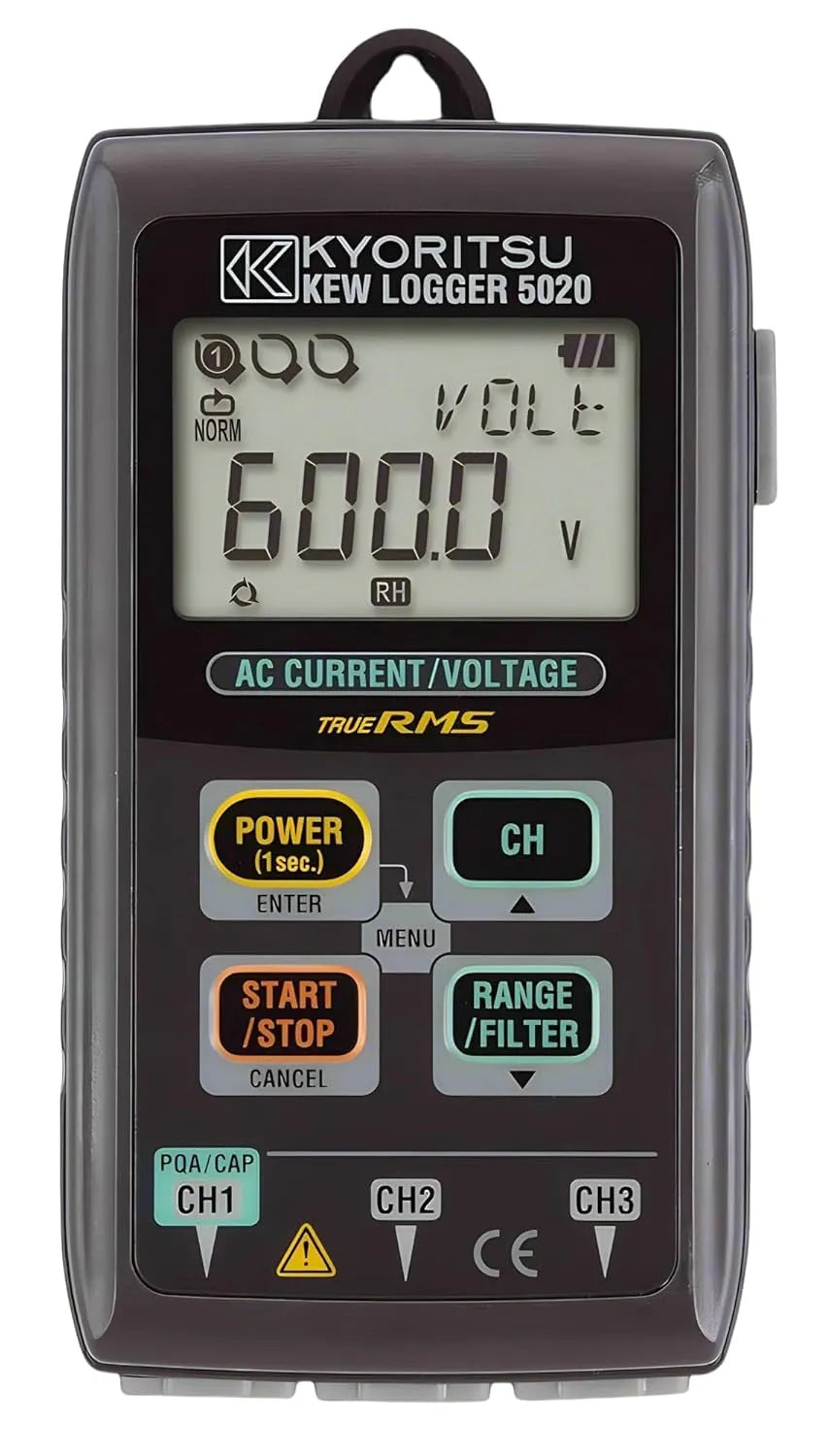

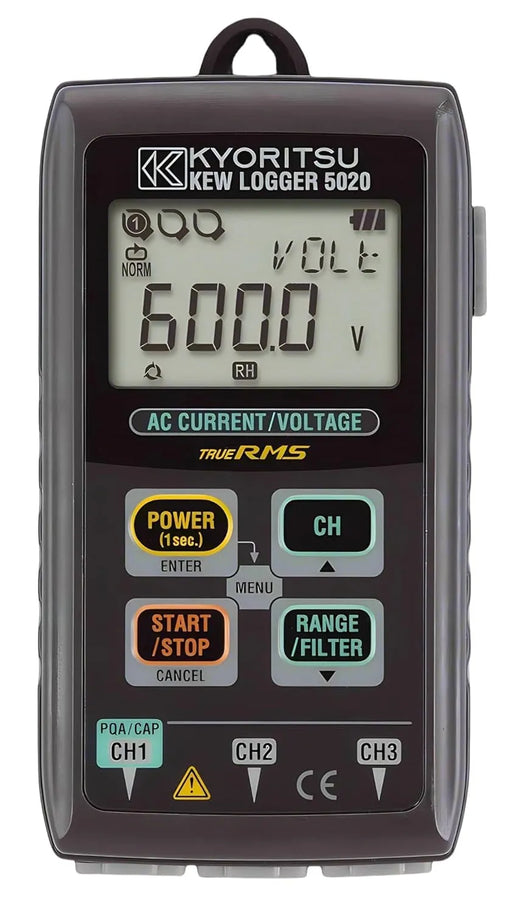

Kyoritsu KEW 5020 3 Channel AC Data Logger Price In Pakistan Rs 105,000/-. The Kyoritsu KEW 5020 is a compact, high-performance 3-channel AC current and voltage data logger designed for accurate and continuous electrical monitoring. Ideal for energy audits, load analysis, and troubleshooting in industrial and commercial environments, the KEW 5020 records real-time AC voltage and current data across three channels simultaneously. With flexible recording intervals, USB data transfer, and intuitive PC software, this logger offers a complete solution for analyzing electrical consumption and system performance over time.
Simultaneously logs AC voltage and current across three independent channels
Battery or USB powered for flexible operation
Compact, rugged design ideal for field and panel use
Complies with international safety standards for dependable use
Flexible sampling intervals from 1 second to 30 minutes
Includes KEW LOG Soft for trend analysis, graphing, and reporting
Large memory for extended data logging (up to 60,000 points)
LCD display with status LEDs for quick on-site status check
USB interface for fast and easy data transfer to PC
Wide measurement ranges support both light and heavy-duty monitoring
Product Specifications
Type
data logger
measurement channels
3 (ac voltage and ac current)
battery life
approx. 10 days (varies with settings)
compliance
iec 61010-1 cat iii 300v
data transfer
usb interface to pc
dimensions
approx. 175 x 120 x 50 mm
display
lcd screen with status indicators
frequency range
40hz – 70hz
included software
kew log soft for data management and analysis
memory type
internal non-volatile memory
operating temperature
-10°c to +50°c
power supply
aa batteries x 2 or usb power
recording capacity
up to 60,000 data points (depending on interval and channels)
sampling interval
1 sec – 30 min (selectable)
voltage measurement range
85v – 264v ac
Product Details
Kyoritsu KEW 5020 3 Channel AC Data Logger Price In Pakistan Rs 105,000/-. The Kyoritsu KEW 5020 is a compact, high-performance 3-channel AC current and voltage data logger designed for accurate and continuous electrical monitoring. Ideal for energy audits, load analysis, and troubleshooting in industrial and commercial environments, the KEW 5020 records real-time AC voltage and current data across three channels simultaneously. With flexible recording intervals, USB data transfer, and intuitive PC software, this logger offers a complete solution for analyzing electrical consumption and system performance over time.
