Type
|
n-type bi-facial double glass solar panel
|
|
cell technology
|
bc cell technology
|
|
maximum power (pmax)
|
645w
|
|
module efficiency
|
23.9%
|

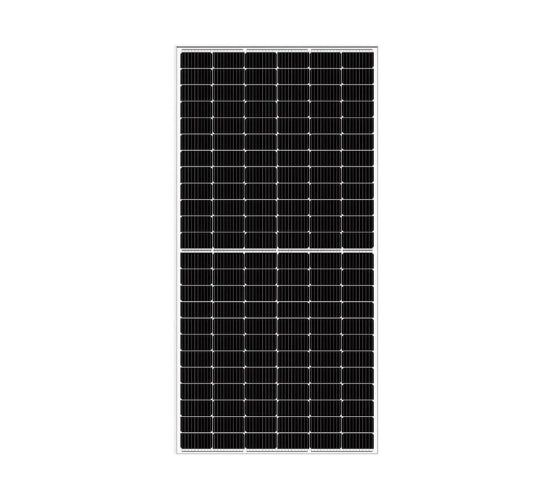

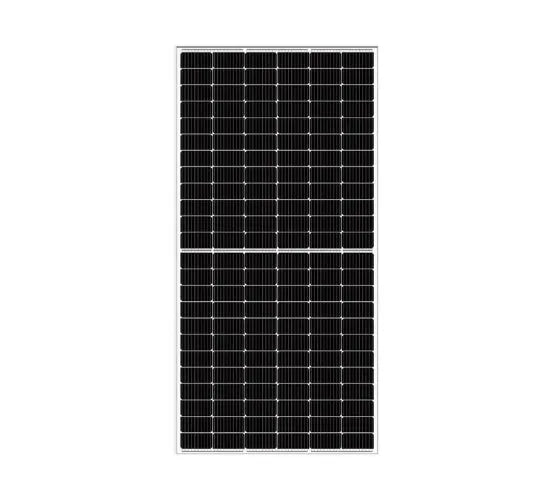

The LONGi Hi-MO X10 Explorer LR7-72HVD-645M is a premium 645W N-Type Bi-Facial Solar Panel designed for utility-scale, commercial, and industrial solar projects. Featuring LONGi's innovative TaiRay Wafer and BC (Back Contact) Cell Technology, this module delivers industry-leading efficiency, exceptional energy generation, and enhanced long-term reliability.
Its advanced double-glass bifacial construction allows the module to generate electricity from both the front and rear sides, increasing overall energy yield and improving project profitability. The module is optimized for high-temperature environments and commercial rooftop applications, offering lower operating temperatures and superior performance under real-world conditions.
With an impressive 23.9% module efficiency, less than 1% first-year degradation, and a 30-year linear power warranty, the Hi-MO X10 645W module represents one of LONGi's most advanced solar solutions for maximizing energy production and r...
Couldn't load pickup availability
Ask About This Product
|
Type
|
n-type bi-facial double glass solar panel
|
|
cell technology
|
bc cell technology
|
|
maximum power (pmax)
|
645w
|
|
module efficiency
|
23.9%
|
|
open circuit voltage (voc)
|
53.70v
|
|
short circuit current (isc)
|
15.17a
|
|
maximum power voltage (vmp)
|
44.56v
|
|
maximum power current (imp)
|
14.48a
|
|
power tolerance
|
0 ~ +3%
|
|
cell orientation
|
144 cells (6 × 24)
|
|
maximum system voltage
|
1500v dc (iec/ul)
|
|
maximum series fuse rating
|
30a
|
|
bifaciality
|
70 ± 5%
|
|
operating temperature range
|
-40°c to +85°c
|
|
nominal operating cell temperature (noct)
|
45 ± 2°c
|
|
temperature coefficient of isc
|
+0.050%/°c
|
|
temperature coefficient of voc
|
-0.200%/°c
|
|
temperature coefficient of pmax
|
-0.260%/°c
|
|
front glass
|
2.0mm semi-tempered glass
|
|
back glass
|
2.0mm semi-tempered glass
|
|
frame
|
anodized aluminum alloy
|
|
junction box
|
ip68, three diodes
|
|
output cable
|
4mm²
|
|
cable length
|
(+)400mm / (-)200mm / ±1400mm customizable
|
|
dimensions
|
2382 × 1134 × 30 mm
|
|
weight
|
33.5 kg
|
|
protection class
|
class ii
|
|
fire rating
|
ul type 29 / iec class c
|
|
front static load
|
5400 pa
|
|
rear static load
|
2400 pa
|
|
hailstone test
|
25mm hailstone at 23m/s
|
|
voc and isc tolerance
|
±3%
|
|
first year power degradation
|
<1%
|
|
annual degradation (year 2-30)
|
0.35%
|
|
30-year power retention
|
88.85%
|
|
product warranty
|
15 years
|
|
linear performance warranty
|
30 years
|
The LONGi Hi-MO X10 Explorer LR7-72HVD-645M is a premium 645W N-Type Bi-Facial Solar Panel designed for utility-scale, commercial, and industrial solar projects. Featuring LONGi's innovative TaiRay Wafer and BC (Back Contact) Cell Technology, this module delivers industry-leading efficiency, exceptional energy generation, and enhanced long-term reliability.
Its advanced double-glass bifacial construction allows the module to generate electricity from both the front and rear sides, increasing overall energy yield and improving project profitability. The module is optimized for high-temperature environments and commercial rooftop applications, offering lower operating temperatures and superior performance under real-world conditions.
With an impressive 23.9% module efficiency, less than 1% first-year degradation, and a 30-year linear power warranty, the Hi-MO X10 645W module represents one of LONGi's most advanced solar solutions for maximizing energy production and reducing the Levelized Cost of Energy (LCOE).
