Type
|
n-type bi-facial double glass solar panel
|
|
maximum power (pmax)
|
605w
|
|
module efficiency
|
22.4%
|
|
maximum power voltage (vmp)
|
40.31v
|

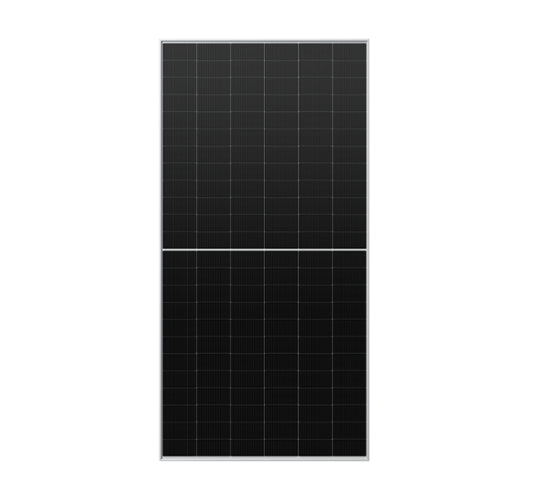

The LONGi Hi-MO X7 LR8-66HGD-605M is a premium 605W N-Type Bi-Facial Solar Panel engineered for utility-scale, commercial, and industrial solar projects. Built with advanced HPDC cell technology, the module delivers outstanding efficiency, enhanced power generation, and exceptional long-term reliability.
Its double-glass bifacial design enables energy generation from both sides of the module, increasing overall energy yield and reducing the Levelized Cost of Energy (LCOE). The panel also features excellent temperature performance, low annual degradation, and superior durability for demanding environmental conditions.
With a module efficiency of 22.4%, up to 80% bifaciality, and a 30-year linear power warranty, the Hi-MO X7 provides a high-performance solution for maximizing solar energy production and long-term investment returns.
Couldn't load pickup availability
Ask About This Product
|
Type
|
n-type bi-facial double glass solar panel
|
|
maximum power (pmax)
|
605w
|
|
module efficiency
|
22.4%
|
|
maximum power voltage (vmp)
|
40.31v
|
|
maximum power current (imp)
|
15.01a
|
|
open circuit voltage (voc)
|
48.18v
|
|
short circuit current (isc)
|
15.90a
|
|
power tolerance
|
0 ~ +3%
|
|
cell orientation
|
132 cells (6 × 22)
|
|
maximum system voltage
|
1500v dc (iec/ul)
|
|
maximum series fuse rating
|
35a
|
|
bifaciality
|
80% ±5%
|
|
operating temperature range
|
-40°c to +85°c
|
|
nominal operating cell temperature (noct)
|
45 ± 2°c
|
|
temperature coefficient of isc
|
+0.045%/°c
|
|
temperature coefficient of voc
|
-0.230%/°c
|
|
temperature coefficient of pmax
|
-0.280%/°c
|
|
front glass
|
2.0mm heat strengthened glass
|
|
back glass
|
2.0mm heat strengthened glass
|
|
frame
|
anodized aluminum alloy
|
|
junction box
|
ip68, three diodes
|
|
output cable
|
4mm²
|
|
cable length
|
(+)400mm / (-)200mm (customizable)
|
|
dimensions
|
2382 × 1134 × 30 mm
|
|
weight
|
33.5 kg
|
|
protection class
|
class ii
|
|
fire rating
|
ul type 29 / iec class c
|
|
front static load
|
5400 pa
|
|
rear static load
|
2400 pa
|
|
hailstone test
|
25mm hailstone at 23m/s
|
|
first year power degradation
|
<1%
|
|
annual degradation (year 2-30)
|
0.40%
|
|
30-year power retention
|
87.40%
|
The LONGi Hi-MO X7 LR8-66HGD-605M is a premium 605W N-Type Bi-Facial Solar Panel engineered for utility-scale, commercial, and industrial solar projects. Built with advanced HPDC cell technology, the module delivers outstanding efficiency, enhanced power generation, and exceptional long-term reliability.
Its double-glass bifacial design enables energy generation from both sides of the module, increasing overall energy yield and reducing the Levelized Cost of Energy (LCOE). The panel also features excellent temperature performance, low annual degradation, and superior durability for demanding environmental conditions.
With a module efficiency of 22.4%, up to 80% bifaciality, and a 30-year linear power warranty, the Hi-MO X7 provides a high-performance solution for maximizing solar energy production and long-term investment returns.
