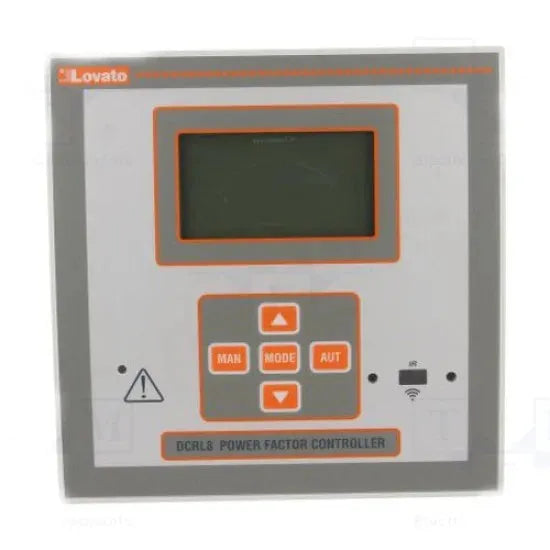

Lovato Electric DCRL8 12 Steps Power Factor Controller Price in Pakistan is Rs.180,000/-. The Lovato Electric DCRL8 Power Factor Controller is a highly advanced device designed to optimize power efficiency in low, medium, and high-voltage electrical systems. With its compact housing and backlit icon LCD graphical display, it provides real-time monitoring and precise control of reactive power. This 12-step controller ensures efficient step balancing, reduced switching operations, and advanced protection for capacitor banks. Equipped with expandable driver features, Ethernet interface, and TRMS high-accuracy measurements with harmonic analysis up to the 15th order, the DCRL8 is ideal for single-phase and three-phase installations. It also supports cogenerating systems, includes a step failure alarm, and offers secure parameter setup with a 2-level password system.<...
Graphical backlight LCD display for clear monitoring
2-level password security for parameter setup
Capacitor over-current and bank protection
Cogeneration system compatibility with dedicated setpoints
Compatible with LV, MV, and HV systems
Ethernet interface (exclusive to DCRL8)
Expandable via EXP1006 module
High accuracy TRMS measurements with harmonic analysis (up to 15th order)
IP65 protection for reliable operation in harsh environments
Reactive power measurement per installed step
Selectable CT input: 1A or 5A
Step balancing and reduced switching through advanced algorithms
Step failure alarm for reliability
Supports single-phase and three-phase installations
Wide measurement range for voltage (05–720 VAC) and current (0.025–6A)
Wide power supply range (100–440 VAC)
Product Specifications
Communication
optical with pc, ethernet (for dcrl8)
current measurement range
0.025–1.2a (1a full scale) / 0.025–6a (5a full scale)
dimensions
144 × 144 × 53 mm
enclosure protection
ip65
expandable driver support
harmonic analysis
up to 15th order
input ct
selectable 1a / 5a
number of outputs
12
operating temperature
-20°c to +60°c
protection
capacitor over-current, capacitor bank protection
series
dcrl series
steps
12 (8-step controller expandable with exp1006 module)
type
graphical backlit lcd
type
power factor controller
voltage measurement range
05–720 vac
weight
640g
Product Details
Lovato Electric DCRL8 12 Steps Power Factor Controller Price in Pakistan is Rs.180,000/-. The Lovato Electric DCRL8 Power Factor Controller is a highly advanced device designed to optimize power efficiency in low, medium, and high-voltage electrical systems. With its compact housing and backlit icon LCD graphical display, it provides real-time monitoring and precise control of reactive power. This 12-step controller ensures efficient step balancing, reduced switching operations, and advanced protection for capacitor banks. Equipped with expandable driver features, Ethernet interface, and TRMS high-accuracy measurements with harmonic analysis up to the 15th order, the DCRL8 is ideal for single-phase and three-phase installations. It also supports cogenerating systems, includes a step failure alarm, and offers secure parameter setup with a 2-level password system.
