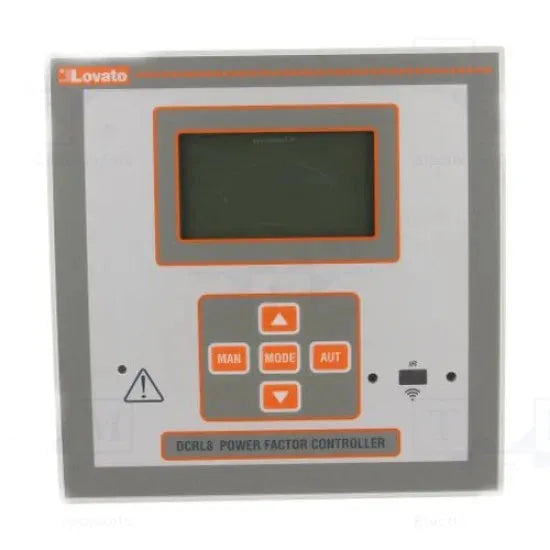

Lovato Electric DCRL8 8 Steps Power Factor Controller Price in Pakistan is Rs.129,600/-. The Lovato Electric DCRL8 8 Steps Power Factor Controller is a smart, expandable, and high-performance solution for optimizing reactive power in low, medium, and high-voltage installations. Designed with a compact housing and graphical backlit LCD display, it delivers real-time monitoring and control with advanced accuracy. Featuring TRMS measurements, harmonic analysis up to the 15th order, and robust protection mechanisms, this controller ensures balanced step usage, reduced switchings, and capacitor bank safety. With its wide power supply range, compatibility with single-phase and three-phase systems, cogeneration adaptability, and Ethernet interface, the DCRL8 guarantees superior efficiency and reliability in modern electrical networks.
Graphical backlight LCD display for easy monitoring
2-level password system for secure parameter setup
Advanced capacitor bank protection and over-current safeguards
Balanced usage of steps with same power rating
Cogeneration system compatibility with dedicated set points
Compact housing suitable for panel mounting
Compatible with single-phase and three-phase installations
CT input selectable 1A or 5A
Ethernet interface (exclusive to DCRL8)
Expandable driver with EXP1006 module
IP65 enclosure protection for reliable performance
Reactive power measurement per installed step
Reduced switching operations with smart algorithms
Step failure alarm for enhanced safety
TRMS high accuracy measurements with harmonic analysis (up to 15th order)
Voltage range 05–720 VAC, Current range 0.025–6A
Wide power supply range 100–440 VAC
Works with LV, MV, and HV systems
Product Specifications
Type
power factor controller
series
dcrl series
communication
optical with pc, ethernet (for dcrl8)
current measurement range
0.025–1.2a (1a full scale) / 0.025–6a (5a full scale)
dimensions
144 × 144 × 53 mm
enclosure protection
ip65
expandable driver supported
harmonic analysis
up to 15th order
input ct
selectable 1a / 5a
number of outputs
8
operating temperature
-20°c to +60°c
protection
capacitor over-current, capacitor bank protection
steps
8 (5-step controller expandable via exp1006 module)
voltage measurement range
05–720 vac
weight
640g
Product Details
Lovato Electric DCRL8 8 Steps Power Factor Controller Price in Pakistan is Rs.129,600/-. The Lovato Electric DCRL8 8 Steps Power Factor Controller is a smart, expandable, and high-performance solution for optimizing reactive power in low, medium, and high-voltage installations. Designed with a compact housing and graphical backlit LCD display, it delivers real-time monitoring and control with advanced accuracy. Featuring TRMS measurements, harmonic analysis up to the 15th order, and robust protection mechanisms, this controller ensures balanced step usage, reduced switchings, and capacitor bank safety. With its wide power supply range, compatibility with single-phase and three-phase systems, cogeneration adaptability, and Ethernet interface, the DCRL8 guarantees superior efficiency and reliability in modern electrical networks.
