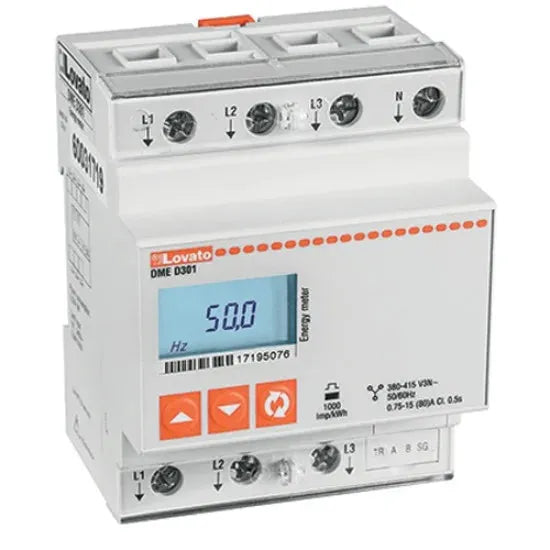

Lovato Electric DME D301 3-Phase Type Energy Meter Price in Pakistan is Rs.165,600/-. The Lovato Electric DME D301 3-Phase Energy Meter is a reliable and precise device for measuring and monitoring active, reactive, and apparent energy in three-phase networks. Built with a robust 4U modular housing and direct connection up to 80A, it ensures accurate performance with IEC/EN 62053-22 Class 0.5s compliance. Featuring a backlit LCD display, 6+1 digit counter, programmable functions, and multiple measurement capabilities, this energy meter is ideal for professional energy management applications. With advanced features such as clearable partial measurements, three-hour counters, RS485 Modbus communication, and tariff selection inputs, the DME D301 delivers efficient monitoring, flexibility, and ease of use in both industrial and commercial installations.
4U modular housing design for compact installation
6+1 digit counter for precise energy recording
Active energy accuracy IEC/EN 62053-22 Class 0.5s
Backlit LCD display for clear visibility
Direct connection up to 80A without external CTs
Measures active, reactive, and apparent power with ±1% f.s accuracy
Metrological LED on front panel for energy indication
Reliable operation in -25°C to +55°C temperature range
RS485 communication with Modbus protocol, Xpress and Synergy compatible
Suitable for three-phase network monitoring
Three buttons for measurement selection and programming
Three-hour counters for monitoring operating time
Total and partial (clearable) energy measurements
Two digital inputs for tariff selection
Product Specifications
Type
3-phase energy meter
accuracy
±1% f.s
active power, reactive power, apparent power, power factor
counter digits
6+1
current
max 80a (direct connection)
dimensions
153 × 117 × 92 mm
energy measurement class
iec/en 62053-22 class 0.5s
hour counters
3 programmable
kind of network
three-phase
mounting
din rail
operating frequency
45...66 hz
operating temperature
-25°c to +55°c
rated voltage
230/400v
rs485 communication port (modbus protocol, xpress, synergy compatible)
total and partial energy measurements
two digital inputs for tariff selection
volume
1646 cm³
weight
381g
