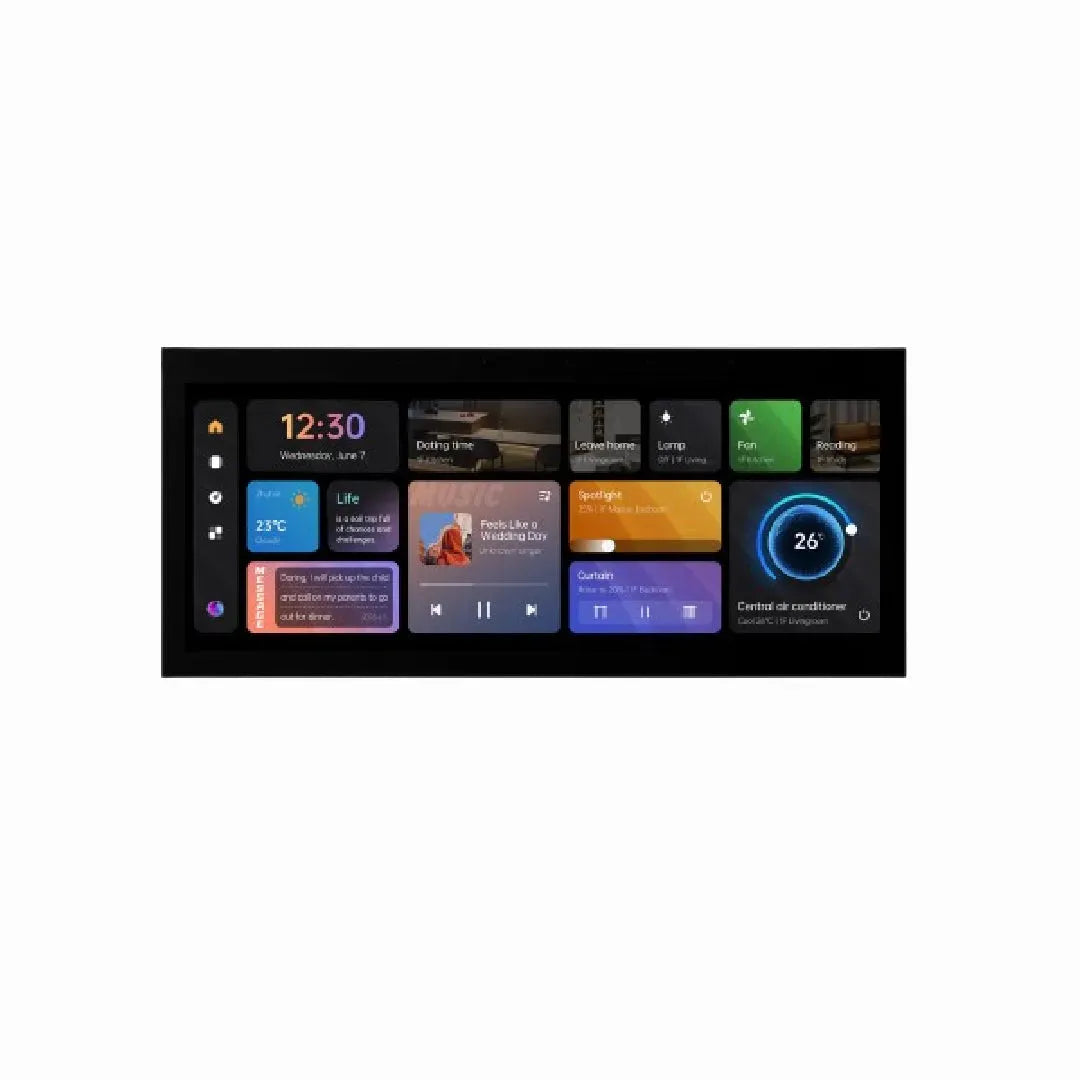

LTECH SP-GW-12S Super Panel

Super Panel 12S

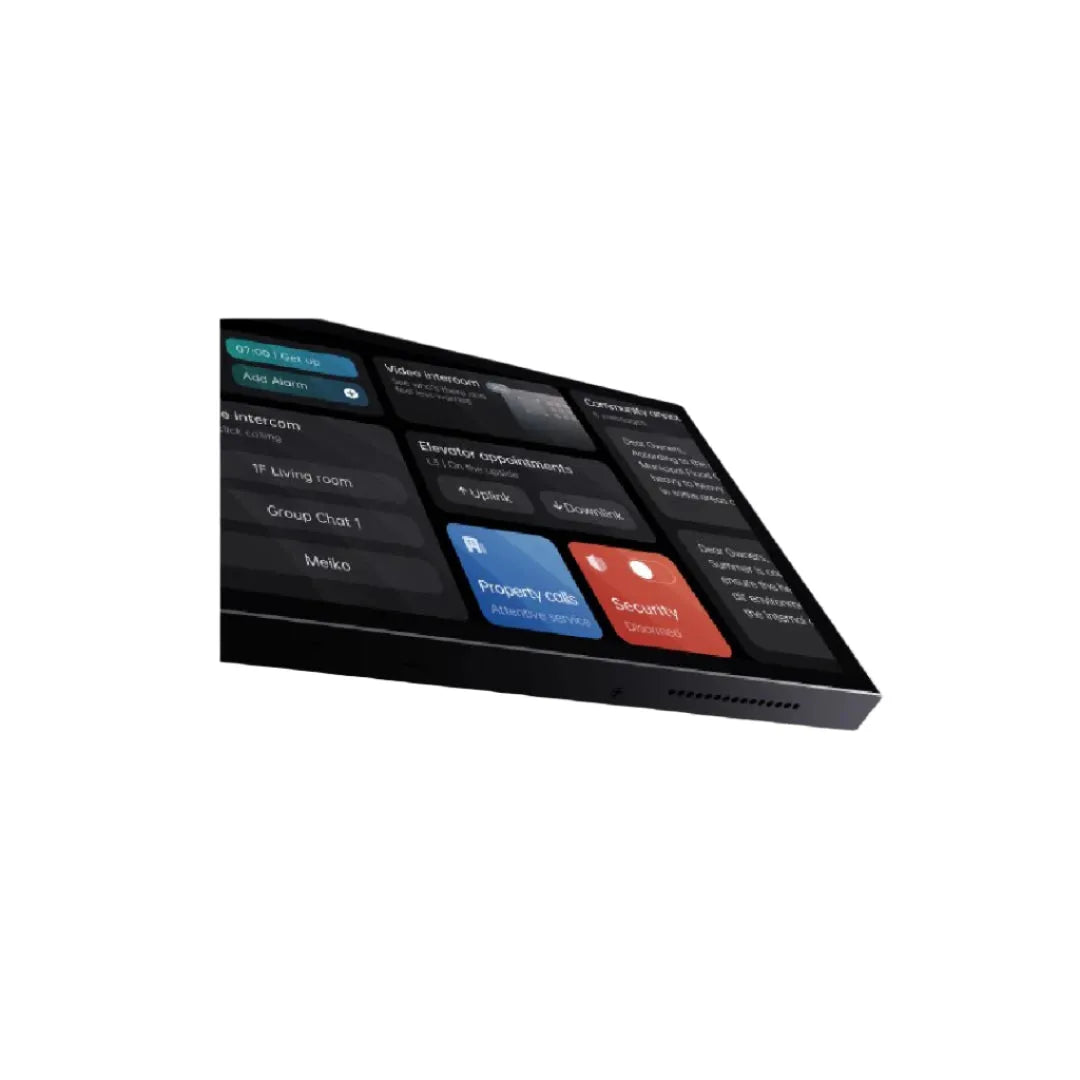

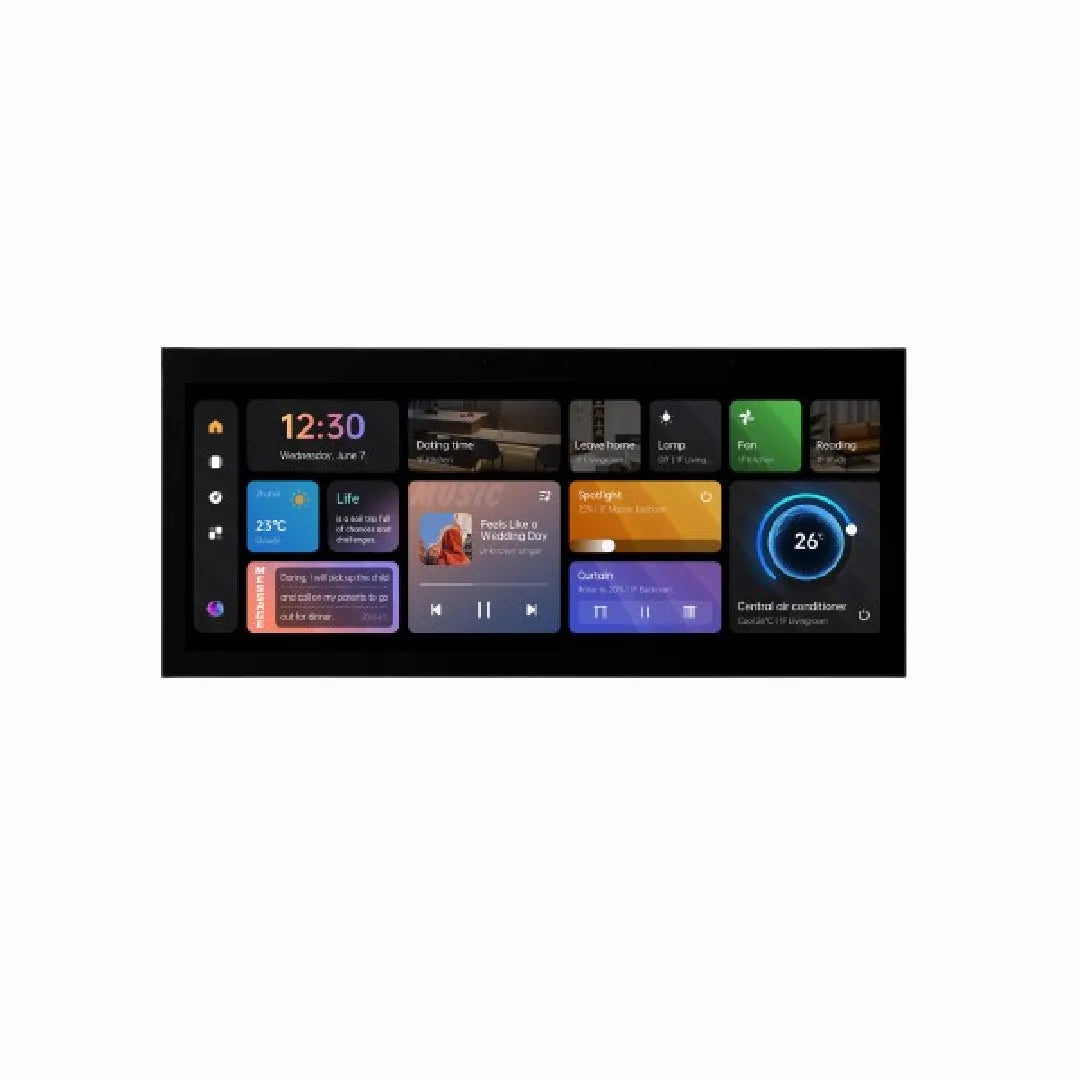

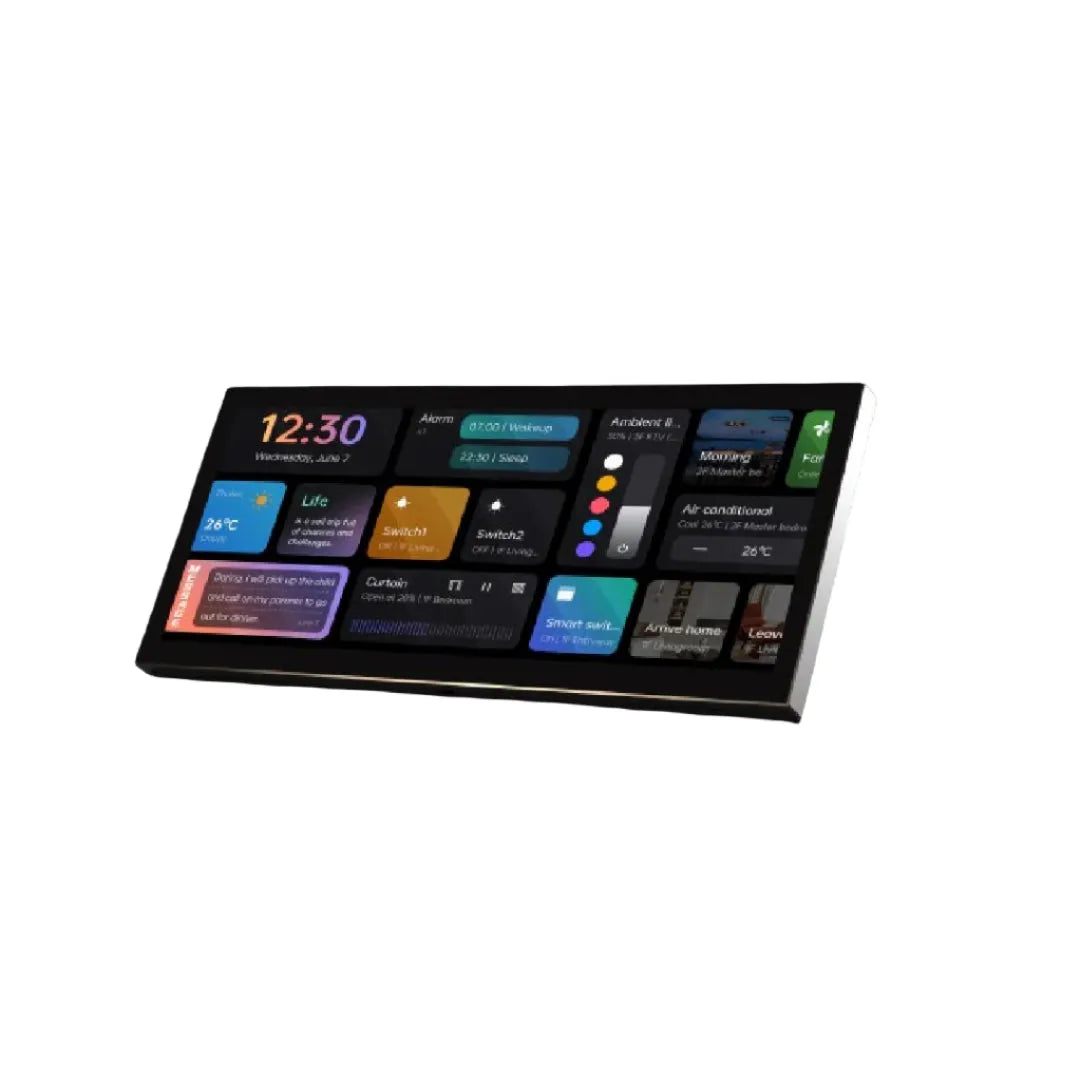

The Super Panel 12S is a central smart control panel designed for efficient management of smart devices in residential, commercial, and hospitality settings. Featuring a large 12.3-inch high-definition touchscreen with a resolution of 1920×720 pixels, it provides a clear and responsive interface for controlling your environment.

Advanced Connectivity

Equipped with dual-band Wi-Fi (2.4?GHz and 5.0?GHz), the Super Panel 12S ensures reliable and fast network connectivity, improving data transmission speeds. It connects with smart devices via Bluetooth 5.0 SIG Mesh, allowing seamless integration and control of multiple devices. Additionally, it supports Bluetooth 5.1 protocol to connect with smart speakers, enabling comprehensive whole-environment device linkage.

Versatile Control Options

The panel functions as a two-channel relay, enabling direct control of load lamps with a maximum total power of 1200W. With built-in infrared (IR) capability, it can manage traditional IR-controlled appliances, effectively transforming them into smart devices without additional equipment. The Super Panel 12S also supports voice calls, enhancing communication options within your environment.

Intelligent Design

Incorporating a six omnidirectional microphone array and a built-in 2-in-1 light and proximity sensor, the panel offers intelligent features such as automatic screen brightness adjustment and screen wake-up when someone approaches. These enhancements improve user experience and contribute to energy efficiency.

Integration and Automation

Users can interact with the panel through the touchscreen or via a dedicated app, providing flexibility in device and scene control. Preset multi-function scenes can be performed with just one tap, streamlining operations and enhancing convenience. The panel supports local control without requiring a network connection, resulting in faster response times and increased stability.

Flexible Installation

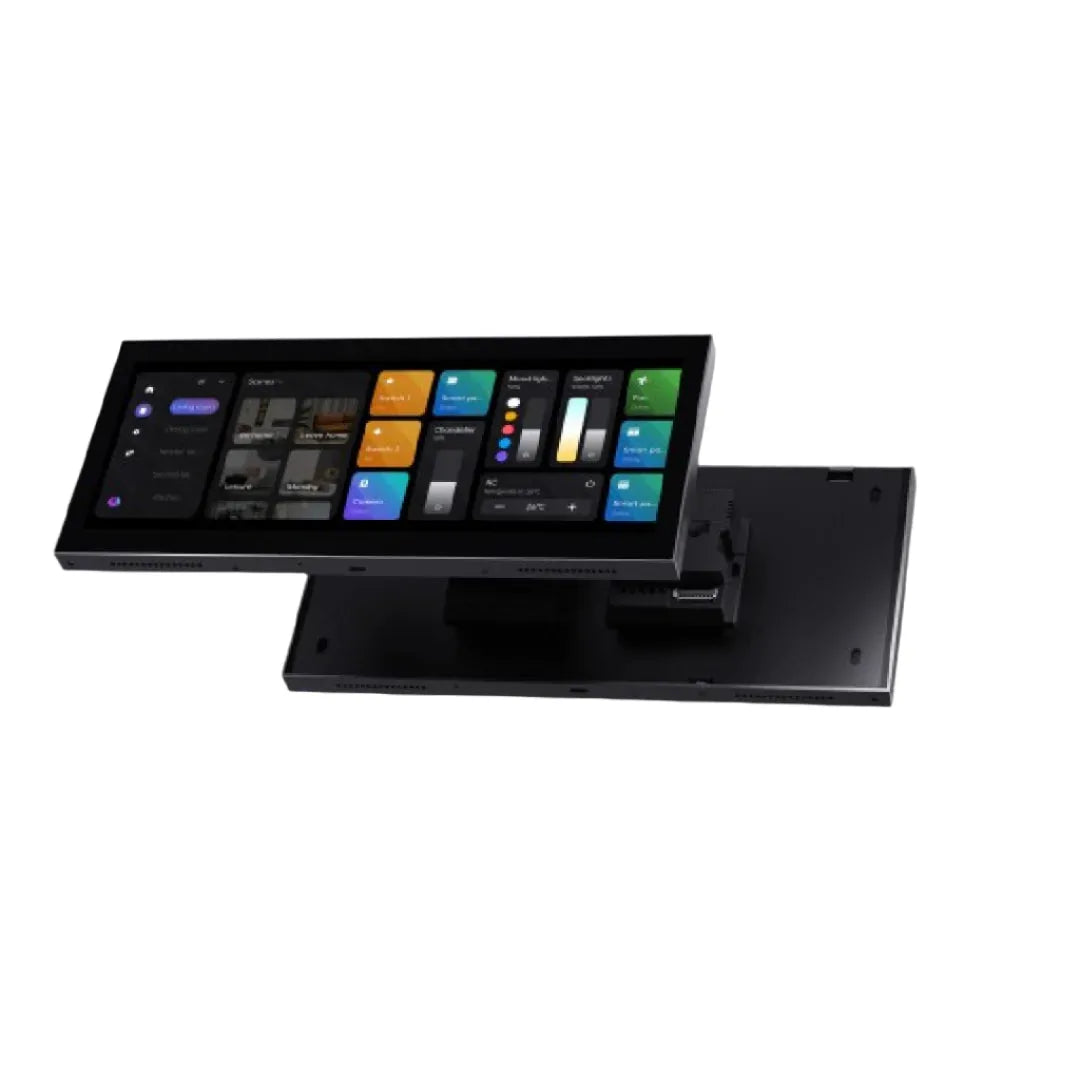

Designed to fit standard 86-type junction boxes, the Super Panel 12S offers three installation methods to suit various application scenarios. This flexibility allows for customization to meet specific requirements and aesthetic preferences in different environments.

Technical Specifications

• Screen: 12.3-inch high-definition touchscreen with 1920×720 resolution

Connectivity:

• Dual-band Wi-Fi (2.4?GHz and 5.0?GHz)
• Bluetooth 5.0 SIG Mesh for device connections
• Bluetooth 5.1 for smart speaker connections
• Infrared (IR) control for traditional appliances

Control Functions:

• Acts as a two-channel relay for direct lamp control (up to 1200W total)
• Supports voice calls

Sensors and Microphones:

• Built-in 2-in-1 light and proximity sensor for automatic screen adjustments
• Six omnidirectional microphone array

Control Methods:

• Touchscreen interaction
• App control

Local Control:

Operates without the need for a network connection

Installation:

• Fits standard 86-type junction boxes
• Three installation methods available
