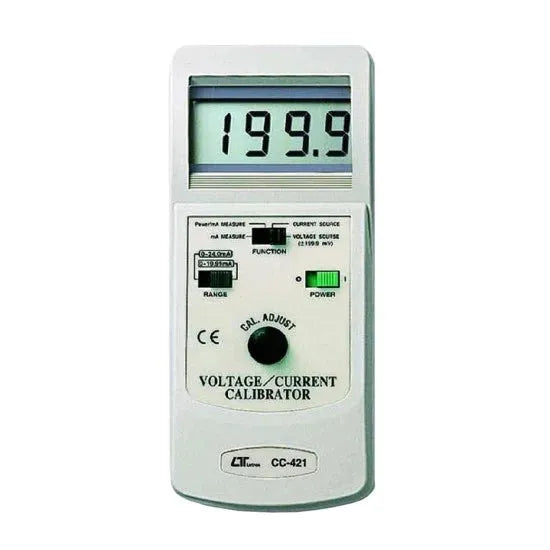

Lutron CC-421 Voltage Current Calibrator Price In Pakistan Rs is 153,000/-. The Lutron CC-421 is a professional-grade voltage and current calibrator designed for precision sourcing and measuring of voltage (0-20V) and current (0-24mA) signals. Engineered for testing, calibration, and troubleshooting of control systems, transmitters, and signal devices, the CC-421 combines a compact handheld design with high accuracy and user-friendly controls. Its dual-function capability makes it ideal for both laboratory and field use in industrial automation, instrumentation, and maintenance applications.
2-in-1 calibrator: Voltage and current source & measure
Auto/manual range selection
Compact, rugged, and portable design
Current range: 0.00mA to 24.00mA
Fine adjustment dial for precision control
High accuracy and resolution (0.01 mA / 0.01 V)
Ideal for process control calibration and diagnostics
Large backlit LCD display for clear visibility
Low battery indicator and overload protection
Voltage range: 0.00V to 20.00V
Product Specifications
Type
current calibrator
voltage output range
0.00v to 20.00v dc
accuracy
±(0.05% + 1 digit)
current measurement range
0.00ma to 24.00ma dc
current output range
0.00ma to 24.00ma dc
current
up to 1000 ohms
display
13mm (0.5 inch) lcd, max 1999
operating temperature
0°c to 50°c
power supply
9v battery
resolution
0.01v / 0.01ma
voltage measurement range
0.00v to 20.00v dc
voltage
max 5 ma
Product Details
Lutron CC-421 Voltage Current Calibrator Price In Pakistan Rs is 153,000/-. The Lutron CC-421 is a professional-grade voltage and current calibrator designed for precision sourcing and measuring of voltage (0-20V) and current (0-24mA) signals. Engineered for testing, calibration, and troubleshooting of control systems, transmitters, and signal devices, the CC-421 combines a compact handheld design with high accuracy and user-friendly controls. Its dual-function capability makes it ideal for both laboratory and field use in industrial automation, instrumentation, and maintenance applications.
