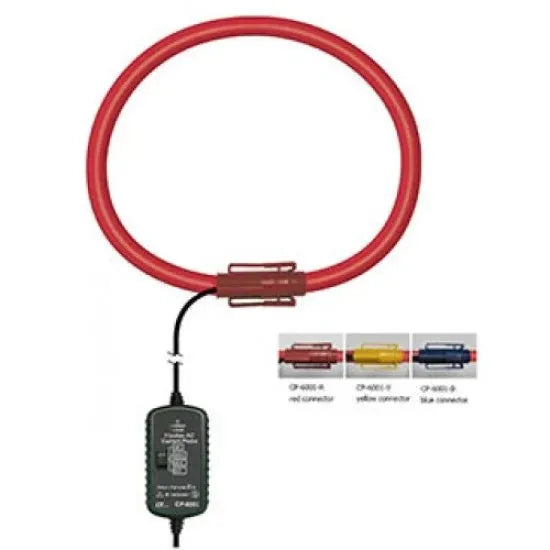

Lutron CP-6001 Flexible Current Probe Price is on inquiry/-. The Lutron CP-6001 Flexible Current Probe is designed for high-performance AC current measurement up to 6000A using advanced Rogowski coil technology. Its flexible design allows for easy installation around large or hard-to-reach conductors, making it ideal for industrial power systems, energy audits, and high-current applications. With a wide frequency response and high accuracy, the CP-6001 provides reliable and non-intrusive current monitoring in a compact and portable form factor, perfect for integration with Lutron meters and other compatible instruments.
Flexible Rogowski coil for easy access around large conductors
High accuracy for professional power monitoring
Ideal for energy audits, power analysis, and industrial systems
Lightweight, compact, and portable design
Non-intrusive measurement with no circuit disconnection
Wide frequency range up to 10kHz
Product Specifications
Type
current probe
measurement range
up to 6000a ac
accuracy
±1% (at 50/60hz)
coil diameter
7.5mm
coil length
approx. 45cm (18 inches)
compatibility
designed for lutron meters with rogowski input or similar compatible devices
frequency response
10hz to 10khz
max conductor size
virtually unlimited due to flexible design
operating temperature
0°c to 50°c
output cable length
approx. 1 meter
output
100mv per 1000a
sensor type
flexible rogowski coil
storage temperature
-10°c to 60°c
Product Details
Lutron CP-6001 Flexible Current Probe Price is on inquiry/-. The Lutron CP-6001 Flexible Current Probe is designed for high-performance AC current measurement up to 6000A using advanced Rogowski coil technology. Its flexible design allows for easy installation around large or hard-to-reach conductors, making it ideal for industrial power systems, energy audits, and high-current applications. With a wide frequency response and high accuracy, the CP-6001 provides reliable and non-intrusive current monitoring in a compact and portable form factor, perfect for integration with Lutron meters and other compatible instruments.
