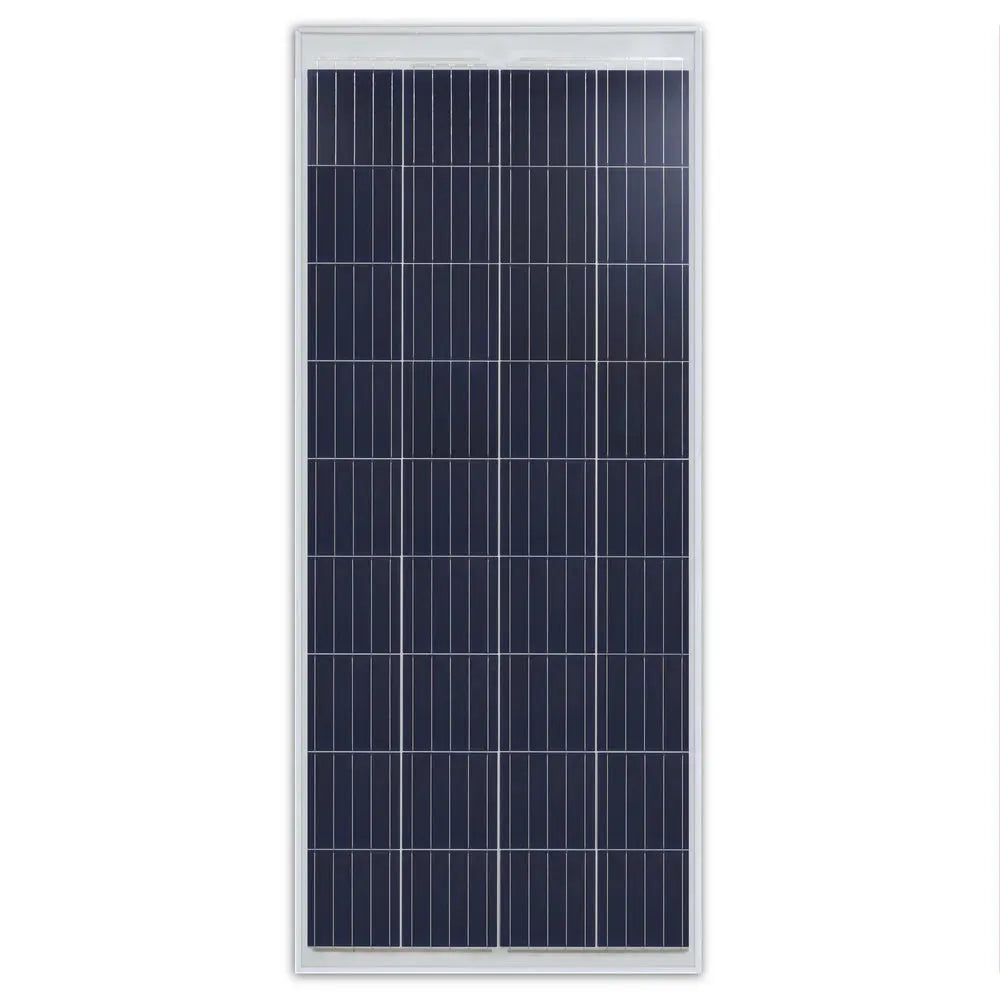

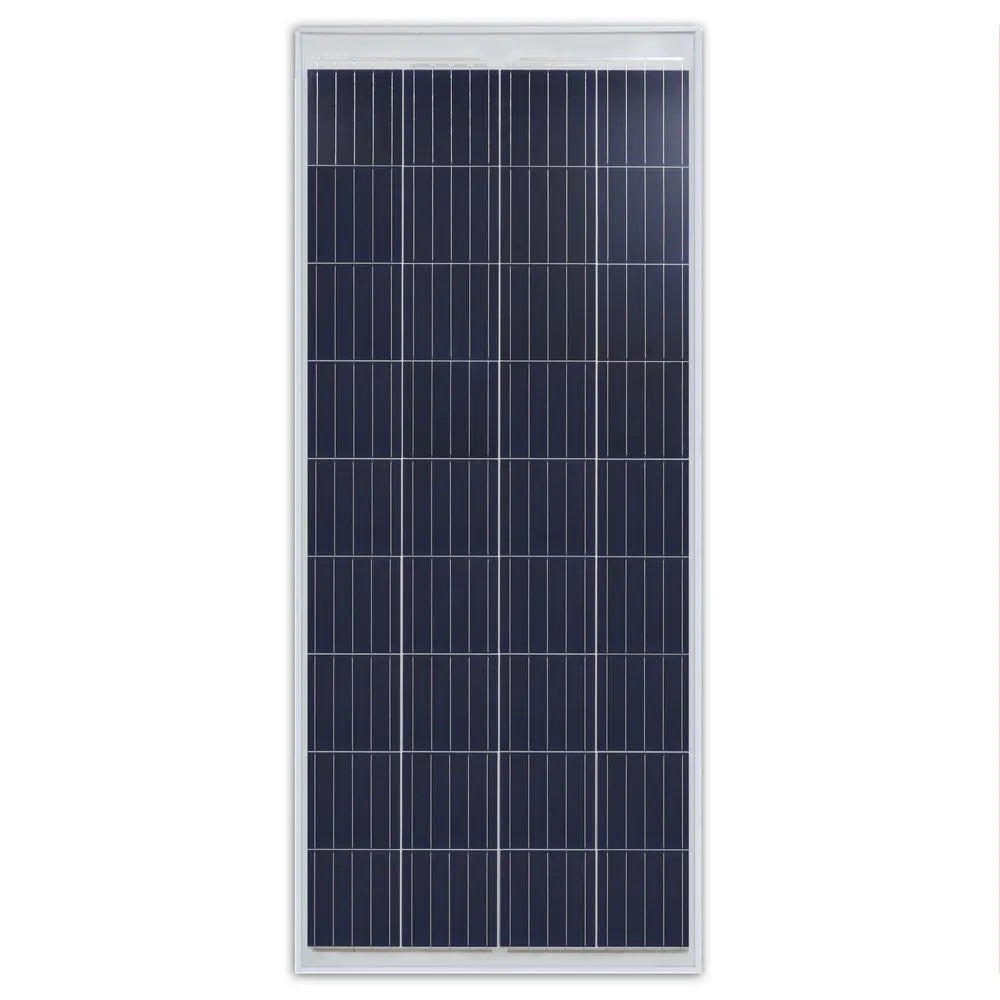

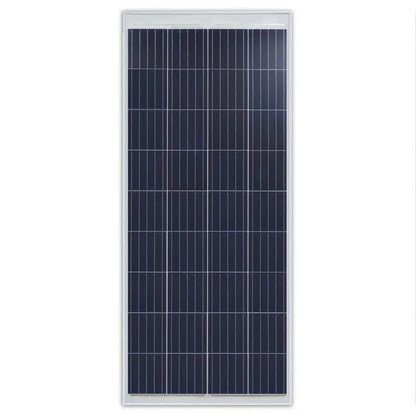

MaxPower 170W Polycrystalline Solar Panel
  • MaxPower 170W Polycrystalline Solar Panel
  • MaxPower 170W Polycrystalline Solar Panel
  • MaxPower 170W Polycrystalline Solar Panel
MaxPower 170W Polycrystalline Solar Panel
Availability: Out of stock

MaxPower 170W Polycrystalline Solar Panel

Product SKU: SP-170-PC
Price on Request

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

WhatsApp Inquiry

Specifications

Type Maxpower Solar Panel
Nominal Output (Pmpp) 170W
Open Circuit Voltage (Voc) 23.98V
Short Circuit Current (ISC) 8.97A
Voltage at Pmax (Vmpp) 20.96 V
Current at Pmax (Impp) 8.12 A
Cell Type Poly-Crystalline Silicon
Maximum System Voltage 1000VDC VDC
Temperature Coefficient of Pmax -0.38 %/°C
Temperature Coefficient of Voc -0.31 %/°C
Temperature Coefficient of Isc 0.06 %/°C
Dimensions 1552 x 678 × 30 (mm) (L x W x H)
Weight 11.0(kg)
Solar Cells 36 cells, Poly-Crystalline Silicon
Output Cables Length 1,000mm, 1x2.5mm2
Junction Box Rated Current; 8A, IP65, TUV&UL
Construction Front Glass; Pattern glass, 3.2mm Encapsulation; EVA (Ethylene-Vingl-Acetate)
Frame Anodized Aluminum
Nominal Operating Cell Temperature 45±2°C
Operating Temperature -40°C~+85°C
Maximum System Voltage Maximum 1000VDC
Surface Load Capacity Front 5,400 Pa Rear 2,400 Pa

Key Features

High-efficiency mono-crystalline silicon cells
Dimensions of 1552 × 678 mm
Anodized aluminum frame and 3.2mm patterned glass
Wide Temperature Tolerance Operates from -40°C to +85°C
Strong Load Capacity Front 5,400 Pa, Rear 2,400 Pa
High Voltage Support Maximum 1000VDC system voltage.
Product Details Reviews Shipping & Returns User Manual

MaxPower 170W Polycrystalline Solar Panel

poly-crystalline silicon cells, known for their reliability and cost-effectiveness. With a nominal output of 170 watts, this panel is suitable for various residential and commercial solar applications. Its robust construction includes a high-quality anodized aluminum frame and 3.2mm patterned glass, ensuring long-lasting performance and durability. The panel operates effectively across a wide temperature range, from -40°C to +85°C, and supports a maximum system voltage of 1000VDC. Ideal for installations where space is at a premium, it combines efficiency with resilience.
