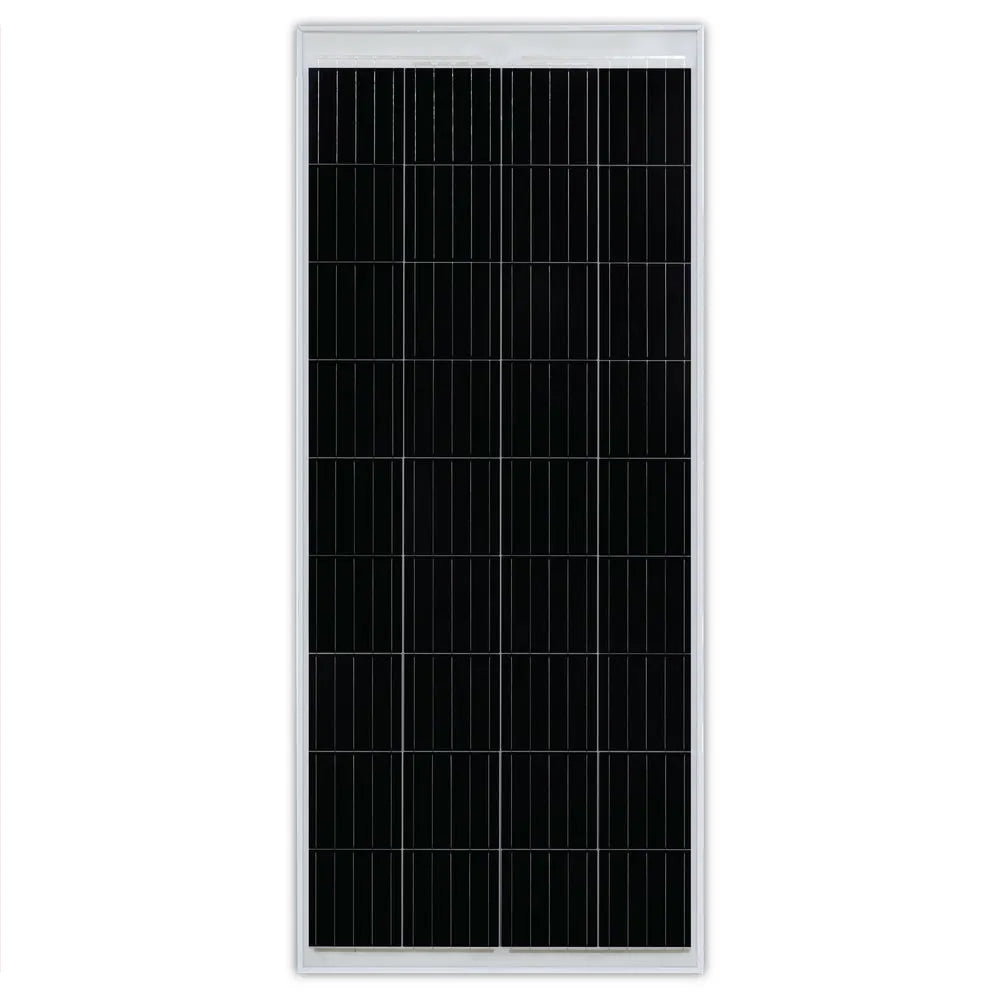

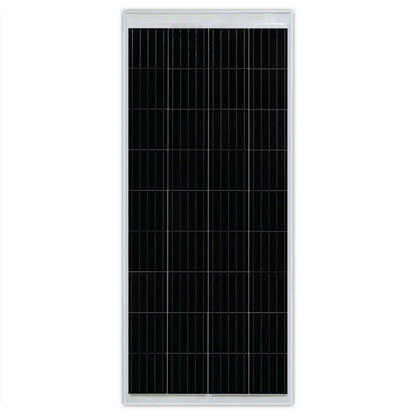

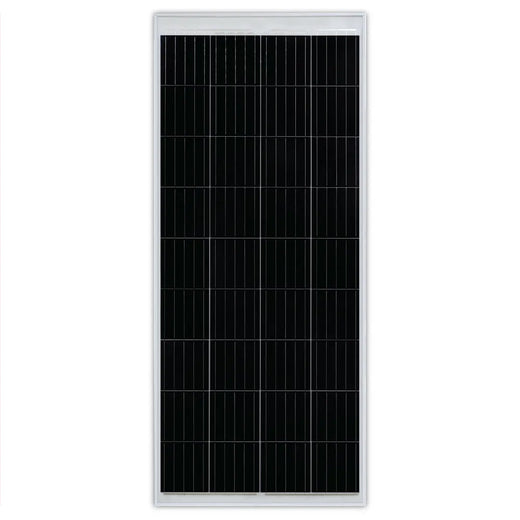

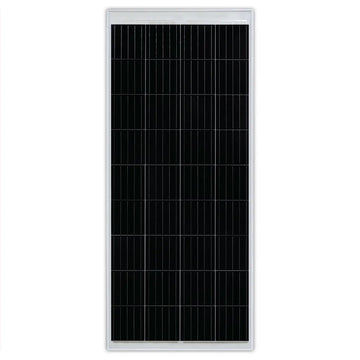

The MaxPower 200W Monocrystalline Solar Panel offers reliable and efficient solar power in a compact design. Featuring high-performance mono-crystalline silicon cells, this panel is ideal for small to medium solar installations. Its robust construction and excellent temperature tolerance make it a durable choice for various applications. The MaxPower 200W Monocrystalline Solar Panel combines efficiency and durability, making it a versatile option for various solar power needs.
Wide Temperature Tolerance Operates from -40°C to +85°C
Strong Load Capacity Front 5,400 Pa, Rear 2,400 Pa
High Voltage Support Maximum 1000VDC system voltage.
Product Specifications
Type
maxpower solar panel
nominal output (pmpp)
200w
open circuit voltage (voc)
24v
short circuit current (isc)
10.07a
voltage at pmax (vmpp)
20v
current at pmax (impp)
9.75 a
cell type
mono-crystalline silicon
maximum system voltage
1000vdc vdc
temperature coefficient of pmax
-0.34 %/°c
temperature coefficient of voc
-0.27 %/°c
temperature coefficient of isc
0.04 %/°c
dimensions
1552 x 678 × 30 (mm) (l x w x h)
weight
11.0(kg)
solar cells
36 cells, mono-crystalline silicon
output cables
length 1,000mm, 1x2.5mm2
junction box
rated current; 8a, ip65, tuv&ul
construction
front glass; pattern glass, 3.2mm encapsulation; eva (ethylene-vingl-acetate)
frame
anodized aluminum
nominal operating cell temperature
45±2°c
operating temperature
-40°c~+85°c
maximum system voltage maximum
1000vdc
surface load capacity
front 5,400 pa rear 2,400 pa
Product Details
The MaxPower 200W Monocrystalline Solar Panel offers reliable and efficient solar power in a compact design. Featuring high-performance mono-crystalline silicon cells, this panel is ideal for small to medium solar installations. Its robust construction and excellent temperature tolerance make it a durable choice for various applications. The MaxPower 200W Monocrystalline Solar Panel combines efficiency and durability, making it a versatile option for various solar power needs.
