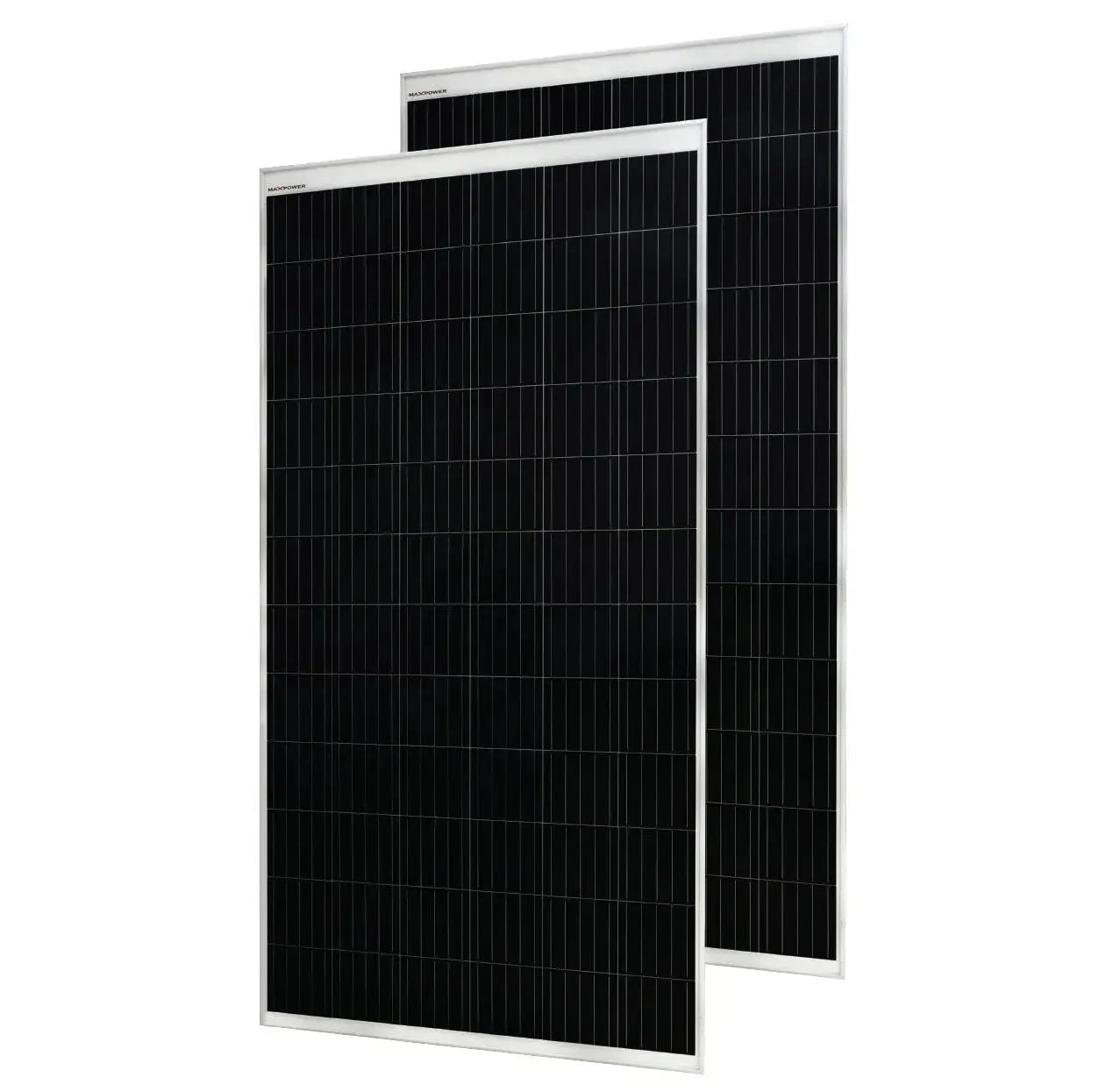

MaxPower Monocrystalline Solar Panel Price in Pakistan is on Inquiry/-. The MaxPower 400W Monocrystalline Solar Panel is a high-efficiency, robust solar module designed for maximum energy output and durability. Equipped with advanced mono-crystalline silicon cells, this panel delivers a nominal output of 400 watts, making it ideal for residential and commercial solar power systems. Its durable construction, including an anodized aluminum frame and high-quality front glass, ensures long-lasting performance and resistance to environmental conditions. The MaxPower 400W Monocrystalline Solar Panel is designed to deliver reliable and efficient solar energy in a wide range of conditions, making it a powerful addition to any solar energy system.
Anodized aluminum frame and 3.2mm patterned glass.
Wide Temperature Tolerance Operates from -40ยฐC to +85ยฐC.
Strong Load Capacity Front 5,400 Pa, Rear 2,400 Pa.
High Voltage Support Maximum 1500VDC system voltage.
Product Specifications
Type
maxpower solar panel
nominal output (pmpp)
400w
open circuit voltage (voc)
48.95v
short circuit current (isc)
9.86a
the voltage at pmax (vmpp)
42.75v
current at pmax (impp)
9.75 a
cell type
mono-crystalline silicon
maximum system voltage
1500vdc vdc
temperature coefficient of pmax
-0.34 %/ยฐc
temperature coefficient of voc
-0.27 %/ยฐc
temperature coefficient of isc
0.04 %/ยฐc
dimensions
2025 1000 ร 35 (mm) (l x w x h)
weight
22.0(kg)
solar cells
72 cells, mono-crystalline silicon
output cables
length 1,000mm, 1x2.5mm2
junction box
ip65, tuv&ul
construction
front glass; pattern glass, 3.2mm encapsulation; eva (ethylene-vingl-acetate
frame
anodized aluminum
nominal operating cell temperature
45ยฑ2ยฐc
operating temperature
-40ยฐc~+85ยฐc
maximum system voltage maximum
1500vdc
surface load capacity
front 5,400 pa rear 2,400 pa
Product Details
MaxPower Monocrystalline Solar Panel Price in Pakistan is on Inquiry/-. The MaxPower 400W Monocrystalline Solar Panel is a high-efficiency, robust solar module designed for maximum energy output and durability. Equipped with advanced mono-crystalline silicon cells, this panel delivers a nominal output of 400 watts, making it ideal for residential and commercial solar power systems. Its durable construction, including an anodized aluminum frame and high-quality front glass, ensures long-lasting performance and resistance to environmental conditions. The MaxPower 400W Monocrystalline Solar Panel is designed to deliver reliable and efficient solar energy in a wide range of conditions, making it a powerful addition to any solar energy system.
