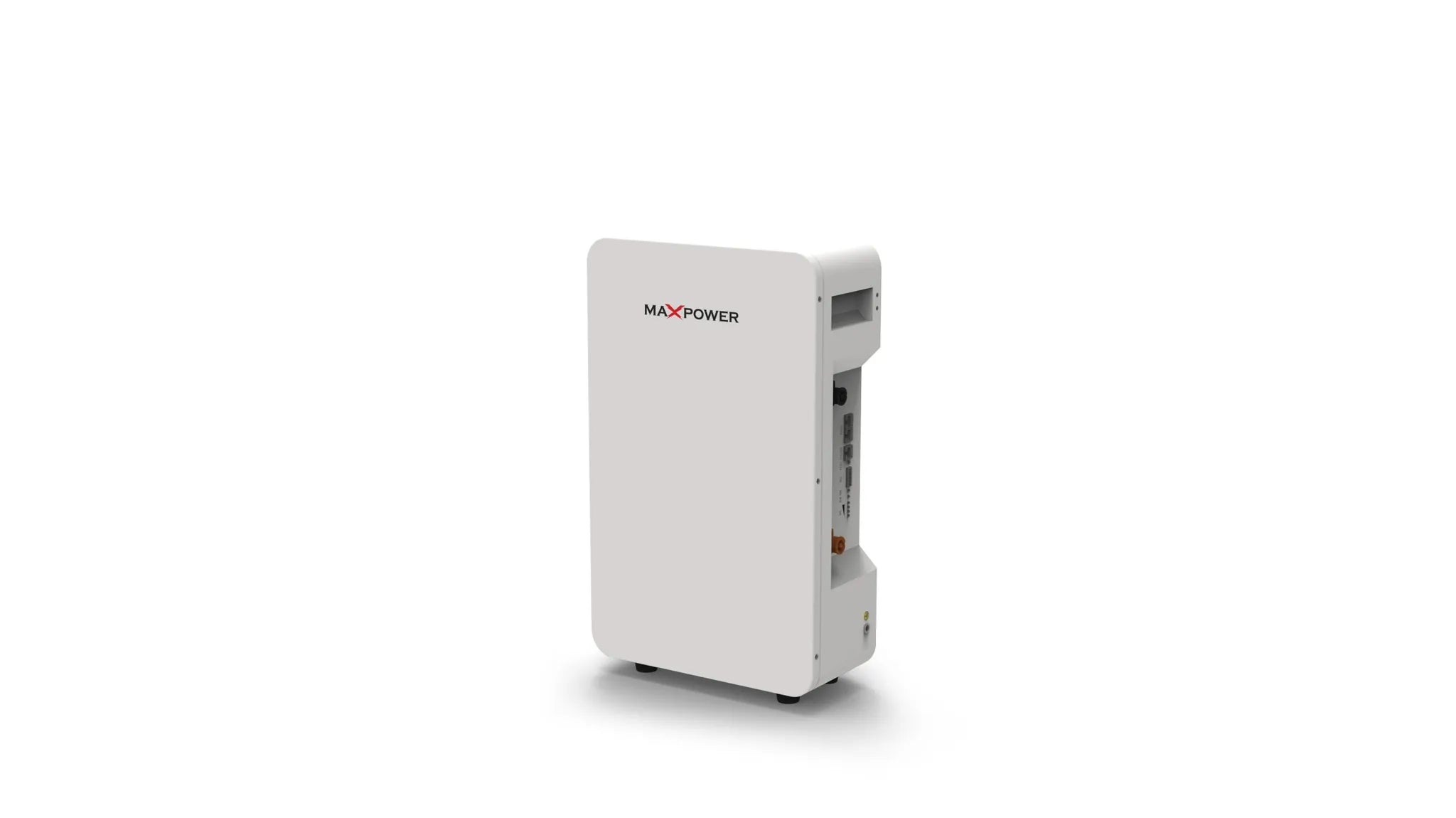

The MaxPower MP 2500 Lithium Battery provides reliable and efficient energy storage with a nominal capacity of 100Ah and 2.56kWh of energy. This battery uses LFP100Ah cells and operates within a voltage range of 22.4V to 29.2V. It is designed for robust performance across various temperatures, with a charge range of -35°C to 65°C and a discharge range of -10°C to 65°C. Featuring a maximum continuous discharge current of 100A, this battery is suitable for demanding applications. It is compact and lightweight, with a net weight of 28 kg and dimensions of 500 x 310 x 162 mm, making it easy to integrate into different setups.
Functions in temperatures from -35°C to 65°C (charge) and -10°C to 65°C (discharge).
Lightweight at 28 kg with dimensions of 500 x 310 x 162 mm.
Max continuous discharge current of 100A.
Suitable for various applications with a working humidity range of 20-80% RH.
Can be stored at -20°C to 50°C, with 25°C recommended for long-term storage.
50A for both charging and discharging.
Product Specifications
Type
maxpower battery
battery cell model
lfp100ah
battery module model
1p8s-100ah
nominal capacity
100ah
nominal voltage
25.6v
singe cell
3.2v
operation voltage range
22.4v~29.2v
nominal energy
2.56kwh
operation voltage
charge temperature ; -35°c~65°c; discharge temperature; -10°c~65°c
storage temperature
-20°c~50°c(25°c is necessary for more than three-month of storage)
working humidity
20~80%rh
standard charge current
50a
maximum continuous charge current
50a
standard discharge current
50a
maximum continuous discharge current
100a/(100a, 25±2°c)
pack weight
28kg
dimension
length; 500 (+2) mm, depth; 310 (±2) mm height; 162 (+2) mm(exclude air plugs and hanging ears)
Product Details
The MaxPower MP 2500 Lithium Battery provides reliable and efficient energy storage with a nominal capacity of 100Ah and 2.56kWh of energy. This battery uses LFP100Ah cells and operates within a voltage range of 22.4V to 29.2V. It is designed for robust performance across various temperatures, with a charge range of -35°C to 65°C and a discharge range of -10°C to 65°C. Featuring a maximum continuous discharge current of 100A, this battery is suitable for demanding applications. It is compact and lightweight, with a net weight of 28 kg and dimensions of 500 x 310 x 162 mm, making it easy to integrate into different setups.
