Availability:
Out of stock

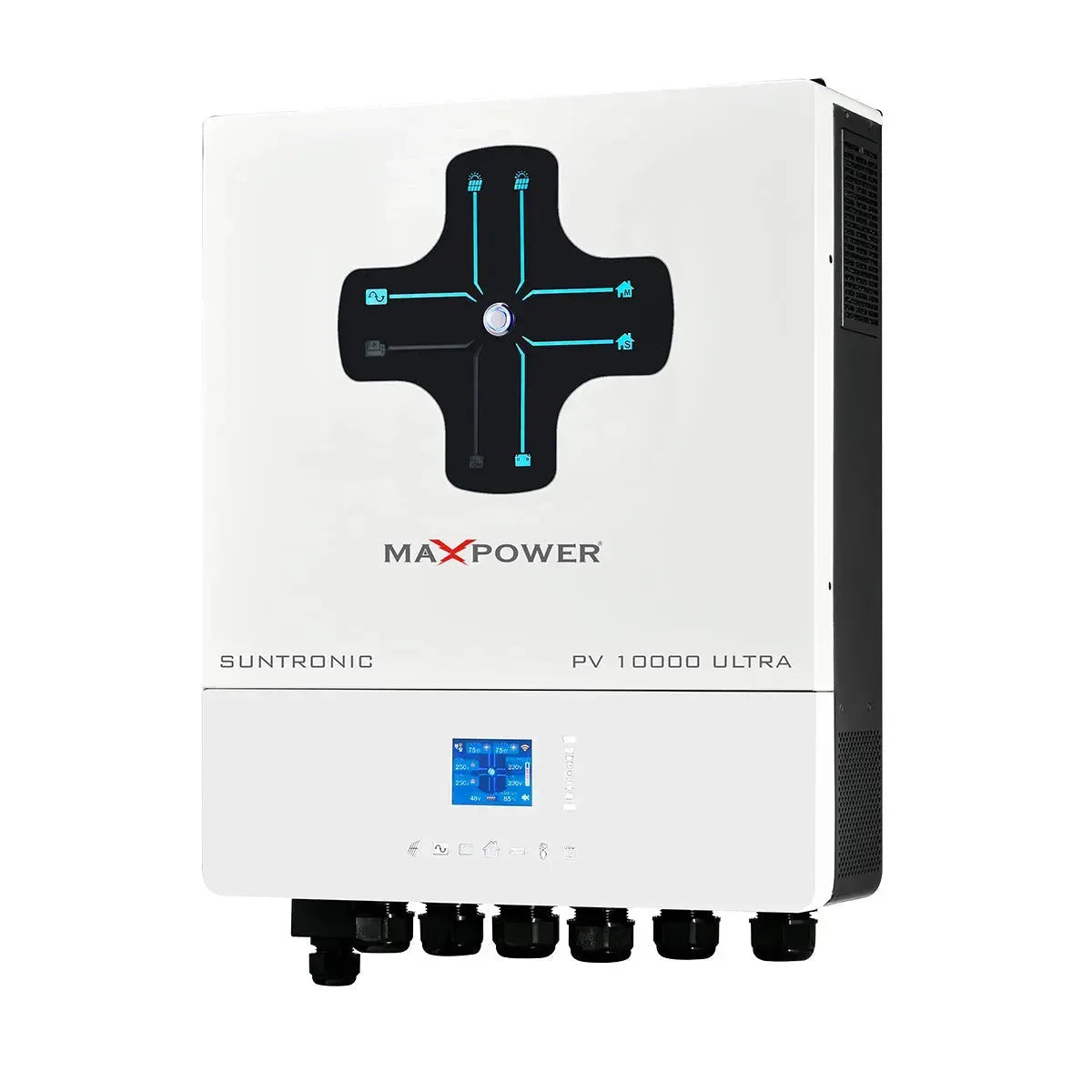

MaxPower Suntronic PV 10000 Ultra Single Phase On Grid Solar Inverter
Product SKU:
SUNTRONIC-PV-10000-ULTRA-INVERTER
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Type
On Grid Solar Inverter
RATED POWER
8000VA/8000W
PARALLEL CAPABILITY
YES, 6 units
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode)
230VAC ± 5%
Surge Power
16000VA
Efficiency
93%
Transfer Time
10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform
Pure sine wave
Battery Voltage
48 VDC
Floating Charge Voltage
54 VDC
Overcharge Protection
63 VDC
Solar Charger Type
MPPT
Maximum PV Array Power
10000W (5000W x 2)
MPPT Range @ Operating Voltage
90 ~ 450 VDC
Maximum PV Array Open Circuit Voltage
500 VDC
Maximum PV Input Current
27A x 2 (MAX 40A)
Maximum Solar Charge Current
150A
Maximum AC Charge CurrentL
120A
Maximum Charge Current
150A
Dimension, D x W x H (mm)
145 x 438 x 553.6
Net Weight (kgs)
18.4
Communication Interface
USB/RS232/RS485/WiFi/Dry-contact/BTS, Support optional GFCI, Rapid shutdown, AFCI detection
External Current Sensor Port
Yes, built-in current transformer sensor
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
-10°C to 50°C
Storage Temperature
-15°C to 60°C
Compliance Safety
CE
Key Features
Dual outputs for smart load management
Two independent AC power sources are connected and switched automatically
Built-in current transformer sensor to meet self-consumption application
Support external BTS (Battery Temperature Sensor) detection
Built-in power status lighting indicators
Built-in 2.8" colored LCD with slide operation
Support optional GFCI, Rapid shutdown, AFCI detections
Parallel operation with 6 units
Built-in WiFi with remote monitoring APP
Grid Feeding
Supports USB On-the-Go function reservedcommunication port for BMS (RS485, CAN-BUS or RS232)
Product Details
Reviews
Shipping & Returns
User Manual
MaxPower Suntronic PV 10000 Ultra Single Phase On Grid Solar Inverter
and robust performance to meet the demands of modern solar energy systems.
Looking to purchase MaxPower Suntronic PV 10000 Ultra Single Phase On Grid Solar Inverter in bulk?
- Purchase Item in Bulk Quantity
- Get At Best Price For Your Business
Bulk Enquiry
No reviews yet. Be the first to review this product.
Shipping
We ship across Pakistan. Standard delivery takes 3–7 business days.
Returns
Easy 7-day return policy. Product must be unused and in original packaging.
Download User Manual
Click here to download PDF
