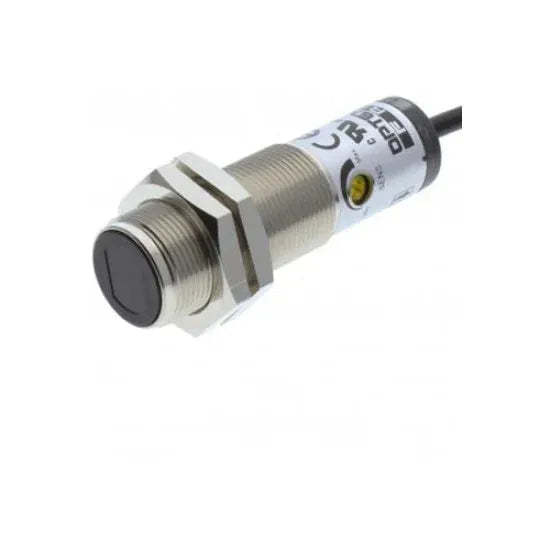

OPTEX C2DM-40N Photo Electric Sensor Price is Rs.18,720/-. The OPTEX C2DM-40N Photo Electric Sensor is a compact diffuse reflective type sensor designed for accurate and flexible object detection up to 400mm. Featuring a red LED for visible light emission and easy targeting, it allows for adjustable sensing distance using a potentiometer. The C2DM-40N delivers stable and precise detection across various industrial environments, including conveyor systems, automated machinery, and packaging lines. With NPN open collector output and IP67 protection, this sensor ensures high performance, durability, and easy installation in space-constrained applications.
Diffuse reflective type with adjustable sensing distance up to 400mm
Compact design ideal for tight-space installations
IP67-rated housing for dust and water resistance
NPN open collector output
Quick response time for high-speed detection
Sensitivity adjustment via built-in potentiometer
Visible red LED for easy alignment and setup
Product Specifications
Type
electric sensor
sensing method
diffuse reflective
ambient light immunity
3,000 lux (incandescent)
current consumption
max. 15ma
light source
red led (visible light)
maximum output current
100ma
operating temperature
-10°c to +55°c (no freezing or condensation)
output type
npn open collector
power supply
12 to 24 vdc ±10%
protection functions
reverse polarity, surge, and short-circuit protection
residual voltage
= 1v
response time
= 1ms
sensing distance
40 to 400mm (adjustable)
sensitivity adjustment
yes (via potentiometer)
Product Details
OPTEX C2DM-40N Photo Electric Sensor Price is Rs.18,720/-. The OPTEX C2DM-40N Photo Electric Sensor is a compact diffuse reflective type sensor designed for accurate and flexible object detection up to 400mm. Featuring a red LED for visible light emission and easy targeting, it allows for adjustable sensing distance using a potentiometer. The C2DM-40N delivers stable and precise detection across various industrial environments, including conveyor systems, automated machinery, and packaging lines. With NPN open collector output and IP67 protection, this sensor ensures high performance, durability, and easy installation in space-constrained applications.
